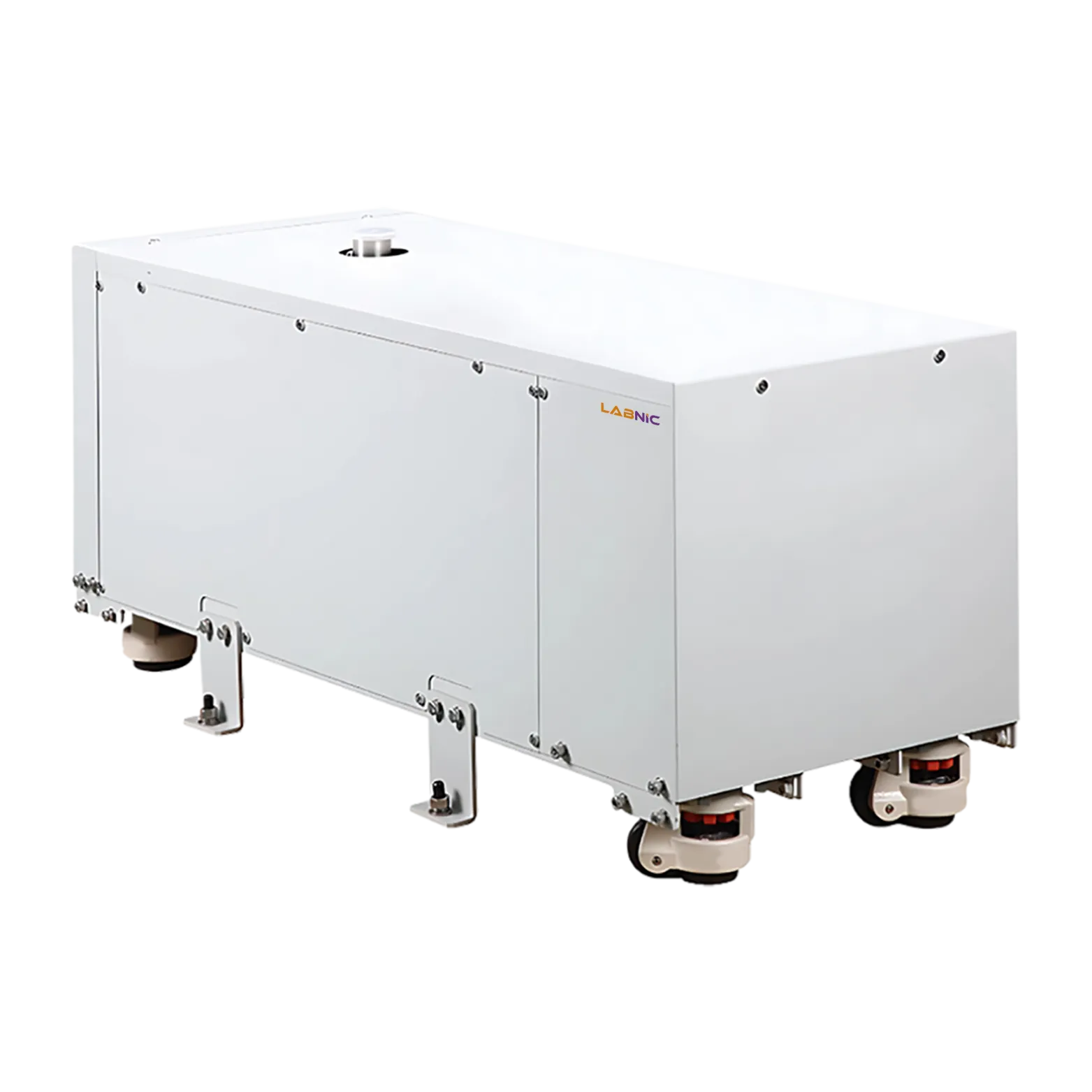

Screw Dry Vacuum Pump LBN-SV151 delivers robust performance with 120 m3/h of pumping speed. Equipped with motor power of 7.5 kW to withstand demanding tasks. Integrated with double-ended bearing support design to ensure enhanced stability. Built with durable materials for stability and long-term integrity. Our Screw Dry Vacuum Pump is ideal for applications requiring a clean, reliable, and efficient vacuum system.
| Pumping Speed | 120 m3/h |
| Ultimate Pressure | ≤ 5 × 10-1 Pa |
| Outlet Pressure | 1.4 × 10-1 MPa |
| Motor Power | 7.5 kW |
| Ambient Temperature | 5 to 40° C |
| Noise | ≤ 70 dB |
| Cooling Water Flow | ≥ 4 L/min |
| Cooling Water Temperature | 5 to 30° C |
| N2 Purging Flow | 12 to 50 L/min |
| Inlet | KF40 |
| Outlet | KF40 |
| Power Supply | 380 to 400 V |
| Dimension | 130 × 55 × 90 cm |
| Weight | ~350 kg |
Screw Dry Vacuum Pump LBN-SV151 is ideal for vacuum distillation in the chemical industry, freeze-drying in pharmaceuticals, thin-film deposition in semiconductor manufacturing, and other processes requiring enhanced stability and durability.
Screw Dry Vacuum Pump LBN-SV151 is ideal for vacuum distillation in the chemical industry, freeze-drying in pharmaceuticals, thin-film deposition in semiconductor manufacturing, and other processes requiring enhanced stability and durability.
Most Frequently Asked Questions
1. What are Screw Dry Vacuum Pumps used for?
Ans. Screw Dry Vacuum Pumps are used to generate stable, oil free vacuum for laboratory and industrial processes requiring clean operation.
2. How do Screw Dry Vacuum Pumps support energy-efficient operation?
Ans. Screw Dry Vacuum Pumps are designed with low energy consumption while maintaining optimal vacuum performance.
3. How do Screw Dry Vacuum Pumps fit into space-limited systems?
Ans. Screw Dry Vacuum Pumps feature compact designs that allow easy integration into confined installations.
4. What gas handling capability do Screw Dry Vacuum Pumps offer?
Ans. Screw Dry Vacuum Pumps are capable of handling high gas flow rates for demanding applications.
5. How do Screw Dry Vacuum Pumps support continuous operation?
Ans. Screw Dry Vacuum Pumps are designed for continuous operation with minimal maintenance requirements.
6. How do Screw Dry Vacuum Pumps perform under varying conditions?
Ans. Screw Dry Vacuum Pumps provide excellent thermal stability and reliable performance across different environmental conditions.
Screw Dry Vacuum Pump LBN-SV151 delivers robust performance with 120 m3/h of pumping speed. Equipped with motor power of 7.5 kW to withstand demanding tasks. Integrated with double-ended bearing support design to ensure enhanced stability. Built with durable materials for stability and long-term integrity. Our Screw Dry Vacuum Pump is ideal for applications requiring a clean, reliable, and efficient vacuum system.
