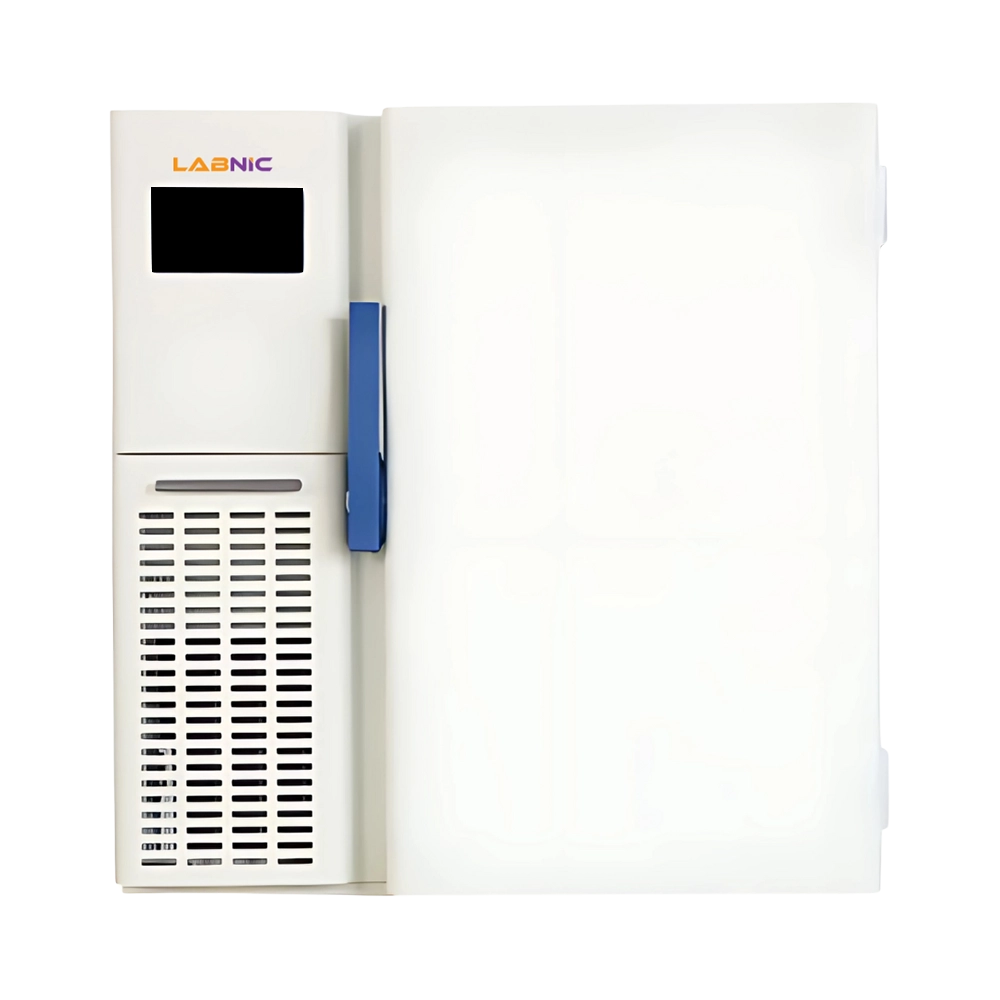

Undercounter Ultra Low Freezer LBN-UUF121 is delivers compact and reliable storage with a 96L capacity. Advanced direct cooling technology ensures rapid and uniform temperature distribution. Equipped with a user-friendly digital display, it enables effortless operation and real-time monitoring. Built-in alarm system provides alerts for power failures and sensor errors. Our Undercounter Ultra Low Freezer is ideal for hospitals, biopharmaceutical facilities, and scientific research labs.
| Cabinet Type | Undercount |
| Capacity | 96 L |
| Temperature Range | -40℃ to -86℃ |
| Cooling Performance | -80℃ |
| Cooling Type | Direct Cooling |
| Defrost Mode | Manual |
| Display | 7” Touch Screen with USB Port |
| Insulation Material | PUF + VIP |
| Exterior Material | Galvanized Steel Powder Coating |
| Interior Material | Galvanized Steel Powder Coating |
| Thickness of Cabinet Foamed Layer | 90 mm |
| Thickness of Door | 70 mm |

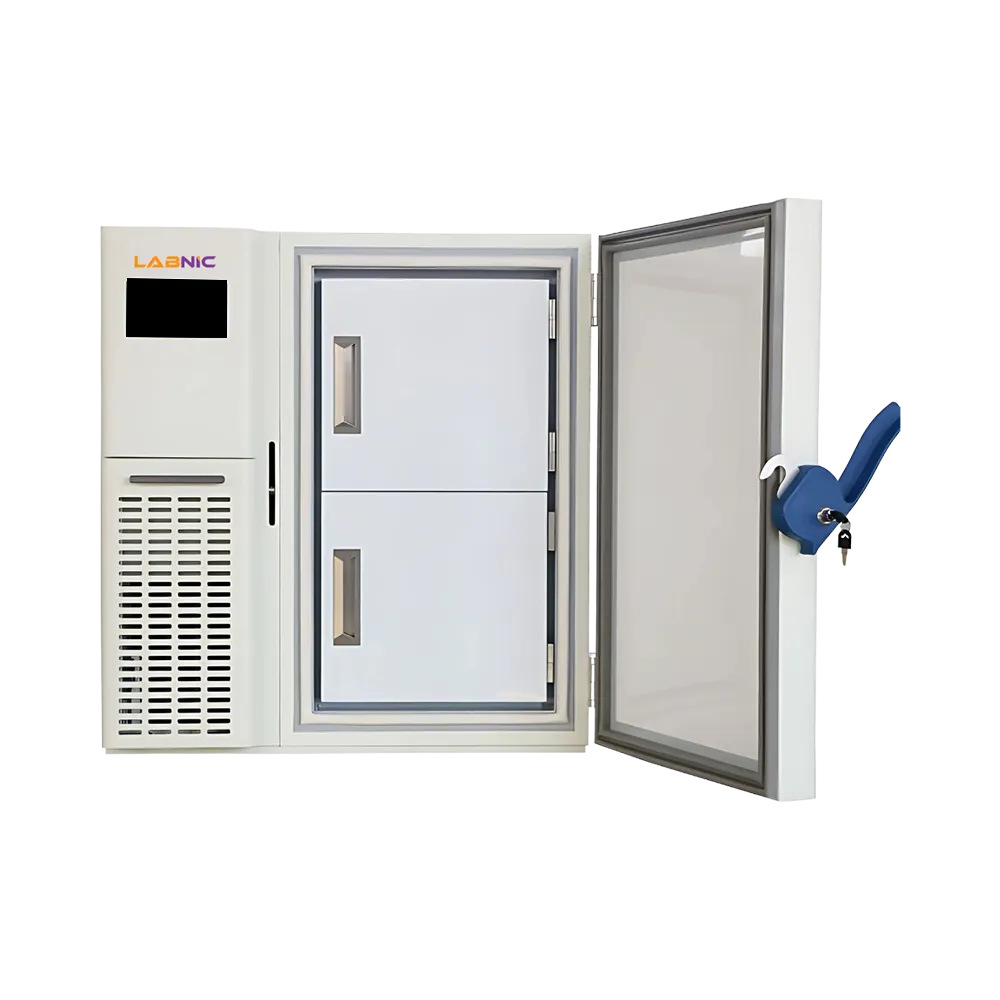

| Inner Door Number | 2 |
| Capacity of 2 Inch Boxes | 60 |
| Refrigerant | HC Mixed |
| Climate Class | N |
| Low / High Temperature Alarm | Yes |
| Condenser High Temperature Alarm | Yes |
| Power Failure Alarm | Yes |
| Sensor Failure Alarm | Yes |
| High Room Temperature Alarm | Yes |
| Alarm Mode | Sound and Light Alarm |
| Rated Voltage | 220V / 50Hz |
| Power Supply | 220V / 50 Hz |
| Power Consumption | 460 W |
| Energy Consumption | 5.5 KW.H / 24H |
| Interior Dimensions | 320 × 450 × 610 mm |
| Exterior Dimensions | 795 × 680 × 815 mm |
| Net Weight | 92 kg |
| Gross Weight | 107 kg |
Temperature Recorder
Racks & Boxes
Caster
Test Hole
Shelves (Stainless Steel) -1
Door Locking Device
Handle
Pressure Balance Hole
Undercounter Ultra Low Freezer LBN-UUF121 is ideal for preserving temperature sensitive biological materials, including cells, tissues, and vaccines in medical institutions, biotechnology companies, research laboratories, and pharmaceutical industries.
Undercounter Ultra Low Freezer LBN-UUF121 is ideal for preserving temperature sensitive biological materials, including cells, tissues, and vaccines in medical institutions, biotechnology companies, research laboratories, and pharmaceutical industries.
Most Frequently Asked Questions
1. What is an under counter ultra low freezer used for?
Ans. It is used for long-term storage of sensitive biological samples, vaccines, and medical specimens at ultra-low temperatures. These freezers are ideal for laboratories, hospitals, and research facilities.
2. What temperature range do under counter ultra low freezers maintain?
Ans. Most models maintain temperatures between -40°C and -86°C, ensuring the safe preservation of temperature-sensitive materials.
3. How does an under counter ultra low freezer save space?
Ans. Its compact design allows it to fit under laboratory benches or counters, making it perfect for facilities with limited space.
4. What safety features do under counter ultra low freezers have?
Ans. These freezers come with temperature alarms, secure locking systems, and backup power options to protect stored samples.
5. How energy-efficient are under counter ultra low freezers?
Ans. Many models use advanced insulation and eco-friendly refrigerants to minimize energy consumption while maintaining stable ultra-low temperatures.
