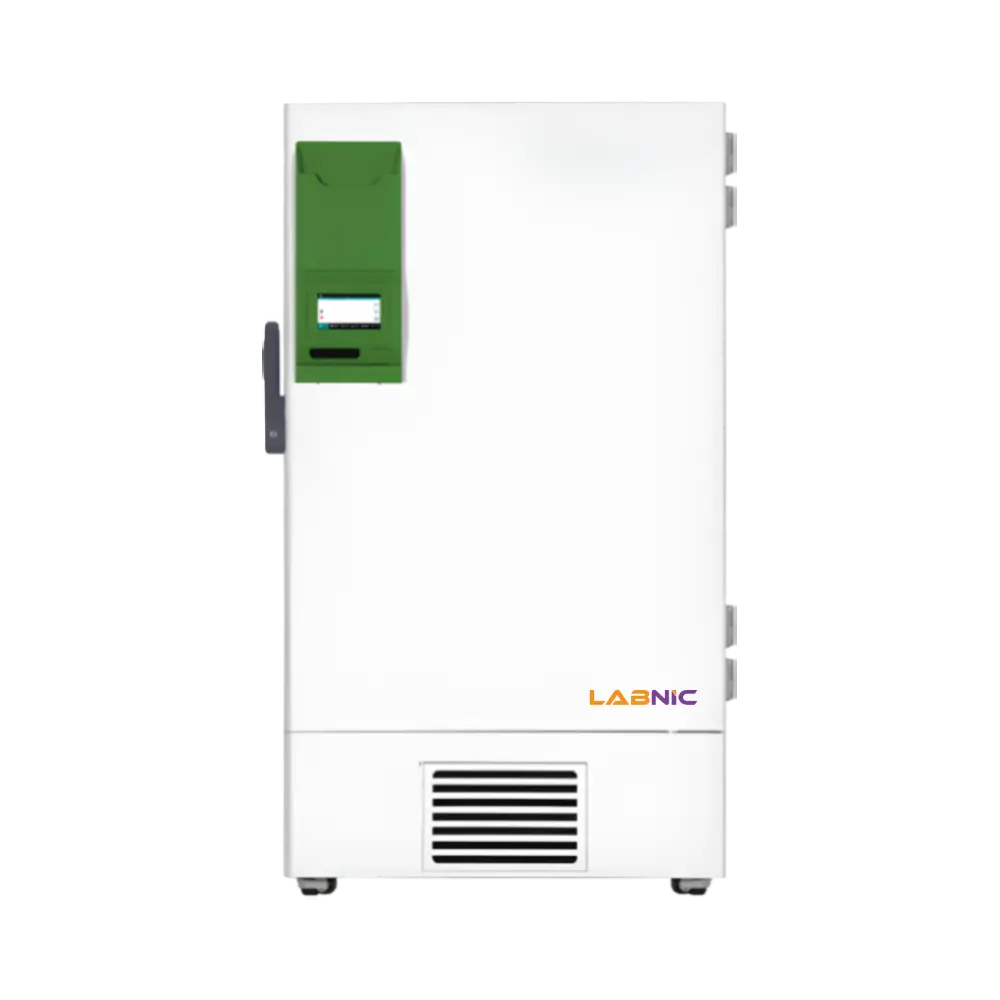

-86℃ Ultra Low Temperature Freezer LBN-ULMF115 offers 728 L storage capacity with a temperature range of -40°C to -86°C for long-term sample preservation. It features a dual cooling system with automatic backup operation to maintain stable ultra-low temperature performance. Equipped with a 7-inch touch screen display providing accurate temperature control with 0.1°C precision. Integrated with SECOP dual compressors, VIP insulation, and multiple audible and visual alarm protections for secure operation. Our -86℃ Ultra Low Temperature Freezer is ideal for storage of vaccines, biological tissues, viruses, reagents, medicines, laboratory samples, and research materials.
| Temperature Range | -40°C to -86°C |
| Storage Capacity | 728 L |
| Ambient Temperature | 10°C to 32°C |
| Noise Level | 55 dB |
| Controller Type | Microprocessor Controller |
| Display | 7-inch Touch Screen |
| Temperature Accuracy | 0.1°C |
| Sensor Type | PTC Sensor |
| Refrigeration Type | Direct Cooling |
| Defrost Type | Manual |
| Compressor | SECOP / 2 pcs |
| Refrigerant | R4001 / 370 g |
| Internal Door | 2 Foamed Solid Doors |
| External Door | 1 Foamed Solid Door |
| Adjustable Shelves | 3 pcs |
| Exterior Material | Coated Steel |
| Interior Material | Stainless Steel |
| Insulation Material | PURF and VIP |
| Door Lock | Yes |
| USB Port | Yes |
| Remote Alarm Port | Yes |
| RS485 Port | Yes |
| Power Consumption | 1400 W |
| Electric Current | 10.37 A |
| Power Consumption (kWh/24h) | 23.44 |
| Power Supply | 220 V ±10%, 50 Hz |
| Interior Dimensions (W × D × H) | 963 × 571 × 1350 mm |
| Exterior Dimensions (W × D × H) | 1248 × 975 × 1995 mm |
| Packing Dimensions (W × D × H) | 1330 × 1020 × 2200 mm |
| Net Weight | 316 kg |
| Gross Weight | 392 kg |
Temperature Datalogger Records temperature data continuously
Temperature Printer Prints temperature monitoring records
Temperature Chart Recorder Provides graphical temperature tracking
Protective Gloves Safety gloves for ultra-low handling
LN2 / CO2 Backup System Emergency backup cooling system
USB Data Port Supports temperature data download
Remote Alarm Port Enables external alarm connection
RS485 Interface Communication interface for monitoring
Adjustable Shelves Flexible sample storage arrangement
Door Lock Prevents unauthorized access
-86℃ Ultra Low Temperature Freezer LBN-ULMF115 is ideal for long-term preservation of vaccines, viruses, biological tissues, blood samples, plasma, reagents, pharmaceutical products, clinical specimens, DNA samples, and laboratory research materials in hospitals, blood banks, research institutes, biotechnology laboratories, and pharmaceutical industries.
-86℃ Ultra Low Temperature Freezer LBN-ULMF115 is ideal for long-term preservation of vaccines, viruses, biological tissues, blood samples, plasma, reagents, pharmaceutical products, clinical specimens, DNA samples, and laboratory research materials in hospitals, blood banks, research institutes, biotechnology laboratories, and pharmaceutical industries.
Most Frequently Asked Questions
1. What are -86°C Ultra-Low Temperature Freezers used for?
Ans. -86°C Ultra-Low Temperature Freezers are used for safe, high-capacity storage of sensitive materials requiring ultra-low temperature preservation.
2. What storage flexibility is offered by -86°C Ultra-Low Temperature Freezers?
Ans. -86°C Ultra-Low Temperature Freezers are available in flexible configurations to support varied laboratory storage requirements.
3. How do -86°C Ultra-Low Temperature Freezers ensure reliable cooling performance?
Ans. -86°C Ultra-Low Temperature Freezers feature advanced cooling systems with reliable compressors and strong thermal insulation.
4. What construction features enhance the durability of -86°C Ultra-Low Temperature Freezers?
Ans. -86°C Ultra-Low Temperature Freezers are built using high-quality materials to support long-term durability and consistent performance.
5. Which industries commonly use -86°C Ultra-Low Temperature Freezers?
Ans. -86°C Ultra-Low Temperature Freezers are commonly used in electronic industries, chemical industries, hospitals, and health and disease prevention centers.
6. How do -86°C Ultra-Low Temperature Freezers support laboratory storage needs?
Ans. -86°C Ultra-Low Temperature Freezers provide dependable ultra-low temperature environments suited for diverse laboratory applications.
-86℃ Ultra Low Temperature Freezer LBN-ULMF115 offers 728 L storage capacity with a temperature range of -40°C to -86°C for long-term sample preservation. It features a dual cooling system with automatic backup operation to maintain stable ultra-low temperature performance. Equipped with a 7-inch touch screen display providing accurate temperature control with 0.1°C precision. Integrated with SECOP dual compressors, VIP insulation, and multiple audible and visual alarm protections for secure operation. Our -86℃ Ultra Low Temperature Freezer is ideal for storage of vaccines, biological tissues, viruses, reagents, medicines, laboratory samples, and research materials.
