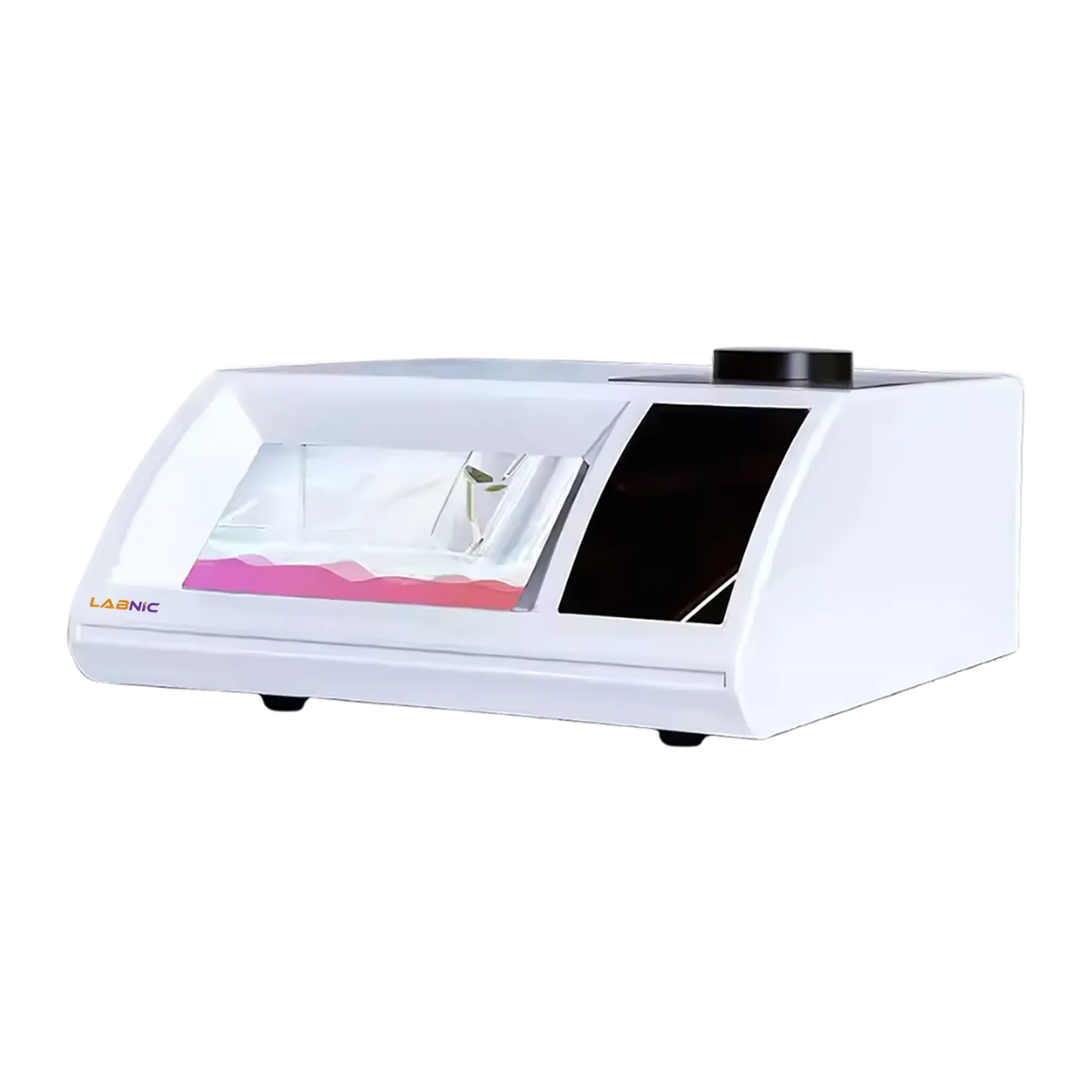

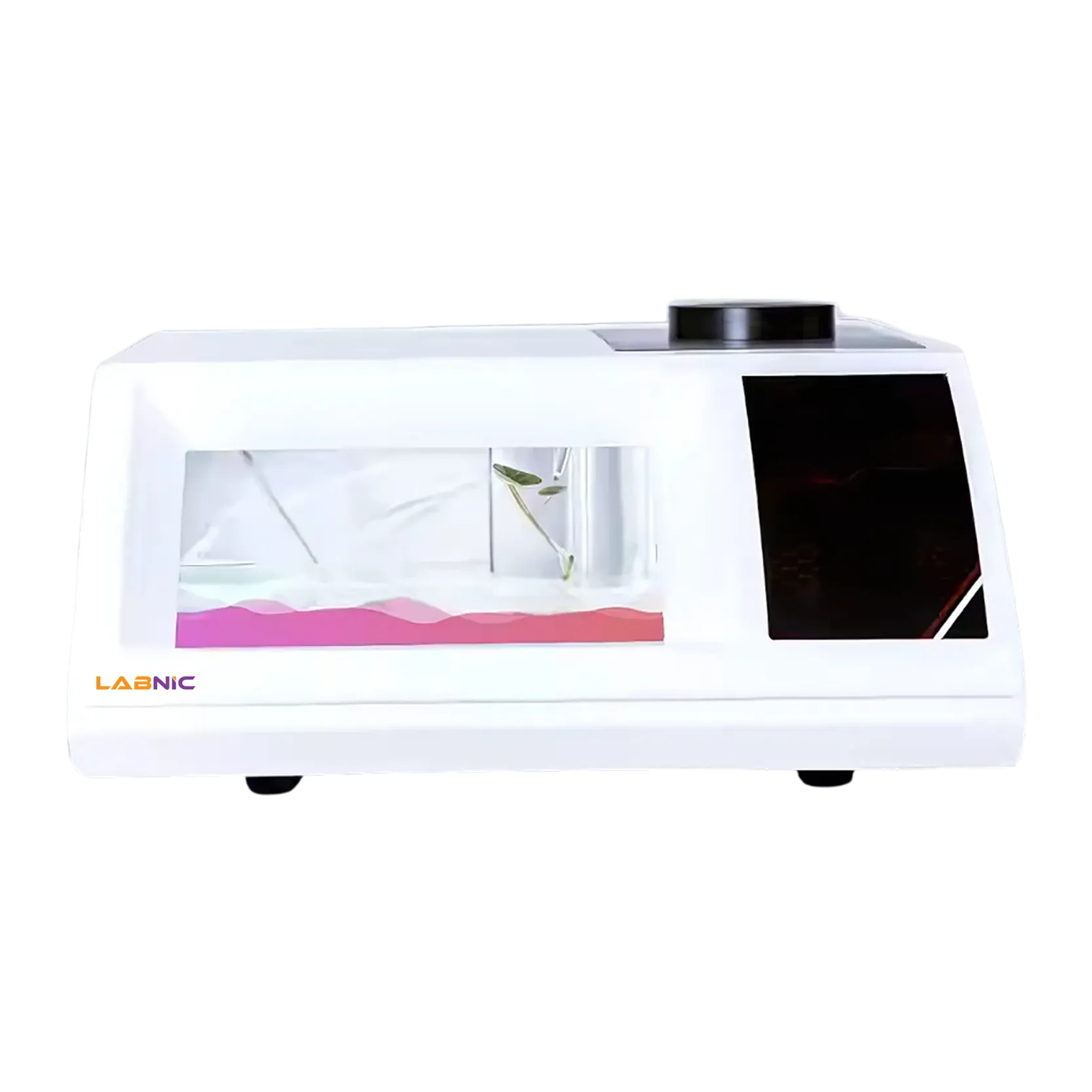

Automatic Refractometer LBN-AR131 is a high precision bench-top refractometer, featuring a measuring range of 1.3000 – 1.7000 (nD) and a 7-inch TFT color touch screen user interface. It is equipped with a high performance linear CCD sensor and a high precision signal acquisition and processing technology. The unit is operated within 5° - 65°C temperature range with 589 nm wavelength range and uses a sapphire prism for refraction purpose. The sample cover forms a seal to prevent evaporation, particularly important when working with volatile solutions.
Measuring Range | 1.3000-1.7000 (nD) |
Resolution | 0.0001 (nD) |
Precision | ±0.0002 |
Brix Range | 0-100% (Brix) |
Brix Accuracy | ±0.1% (Brix) |
Test Mode | Refractive index / sugar content |
Wavelength | 589 nm |
Temperature Control Method | Built-in Peltier |
Temperature Control Range | 5°C-65°C |
Temperature Control Stability | ±0.03°C |
Light Source | LED |
Prism | Sapphire |
Sample Cell | Stainless steel |
Detection Method | High-resolution linear CCD |
Display Method | 7 inch FTF color touch screen |
Data Storage | 32 GB |
Output Method | USB, RS232, RJ45, SD card, U disk |
Power Supply | 220V / 50Hz |
Size | 360×300×155 mm |
Weight | 5 kg |
Easy clean prism
7-inch high definition touch screen
Double Temperature stability checks
LED cold light source
Outstanding stability and reliability
Achieves higher accuracy with constant temperature control
Supports network printing and support data statistical retrieval
These are widely used in petroleum industry, oil industry, pharmaceutical industry, food, and chemical and sugar industries. It is also one of the commonly used equipment in laboratories, scientific and research institutes etc.
