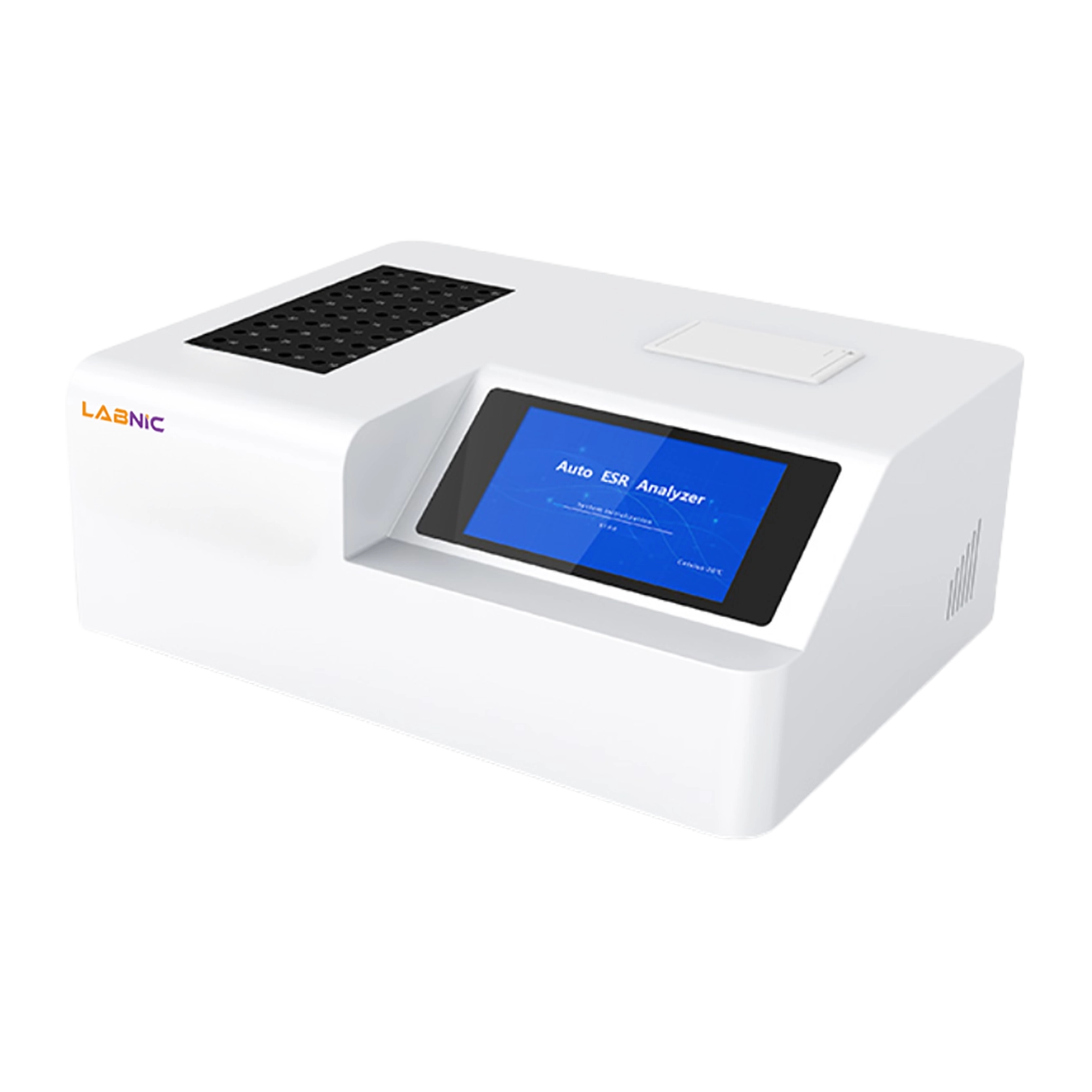

Auto ESR Analyzer LBN-ES121
Auto ESR Analyzer LBN-ES121

Auto ESR Analyzer LBN-ES121

www.labnic.com | info@labnic.com

Overview

Auto ESR Analyzer LBN-ES121 analyses samples automatically using the Westergren method and the infrared measuring principle. It has a measurement range of up to 120 mm/hr and an analysis time of 30 or 60 minutes with 3-minute sampling intervals. The unit can hold up to 40 samples and uses advanced infrared light color interpretation technology to automatically scan the entire process. Touch screen large display, built-in printer, and RS-232 interface aid in simple data printing.

Specifications :
Measurement Mode Infrared detection
Analysis Result Westergren ESR value (mm/hour)
Throughput 80 tests/hour
Analysis Channels 40
Analysis Time 30 or 60 minutes selectable
Sampling Interval 3 min
Measurement Range 0 – 120 mm/hr
Temperature Compensation Automatic result correction at 18℃
Result Resolution 1 mm/1hr and 1 mm/2hr
Blood Level Range 50 – 64 mm
Result Accuracy ±2mm/hr (ESR≤30mm/hr)
±3mm/hr (30mm/hr ±5mm/hr (ESR > 80mm/hr)
Result Precision CV≤2%
Channel Error ≤ ±4mm/hr
Reading Accuracy 0.2 mm
Timing Accuracy 90
Display 7-inch color LCD
Communication Interface RS-232
Printer Built-in thermal printer
Power Supply AC 220V,50/60 Hz
External Dimension (W × D × H) 340 × 440 × 180 mm
Package Dimension (W × D × H) 665 × 395 × 235 mm
Net Weight 10 Kg
Gross Weight 11.7 Kg
Features :
  • Infrared sensor measuring principle
  • Fully automated walk-away operation
  • 7-inch color touch screen display, easy to operate, high resolution
  • 80 tests per hour, rapid sample detection
  • Built-in thermal printer for easy data printing
  • Results are automatically temperature compensated
  • Advanced optical testing principle to overcome errors in manual methods
  • Power-off save function automatically saves the test result
  • Randomly insert sample positions to test at any time
Applications :

Automatic ESR analyzers are widely applicable to for hospital inspection, medical laboratories, research institutes, universities and disease control centres etc.
