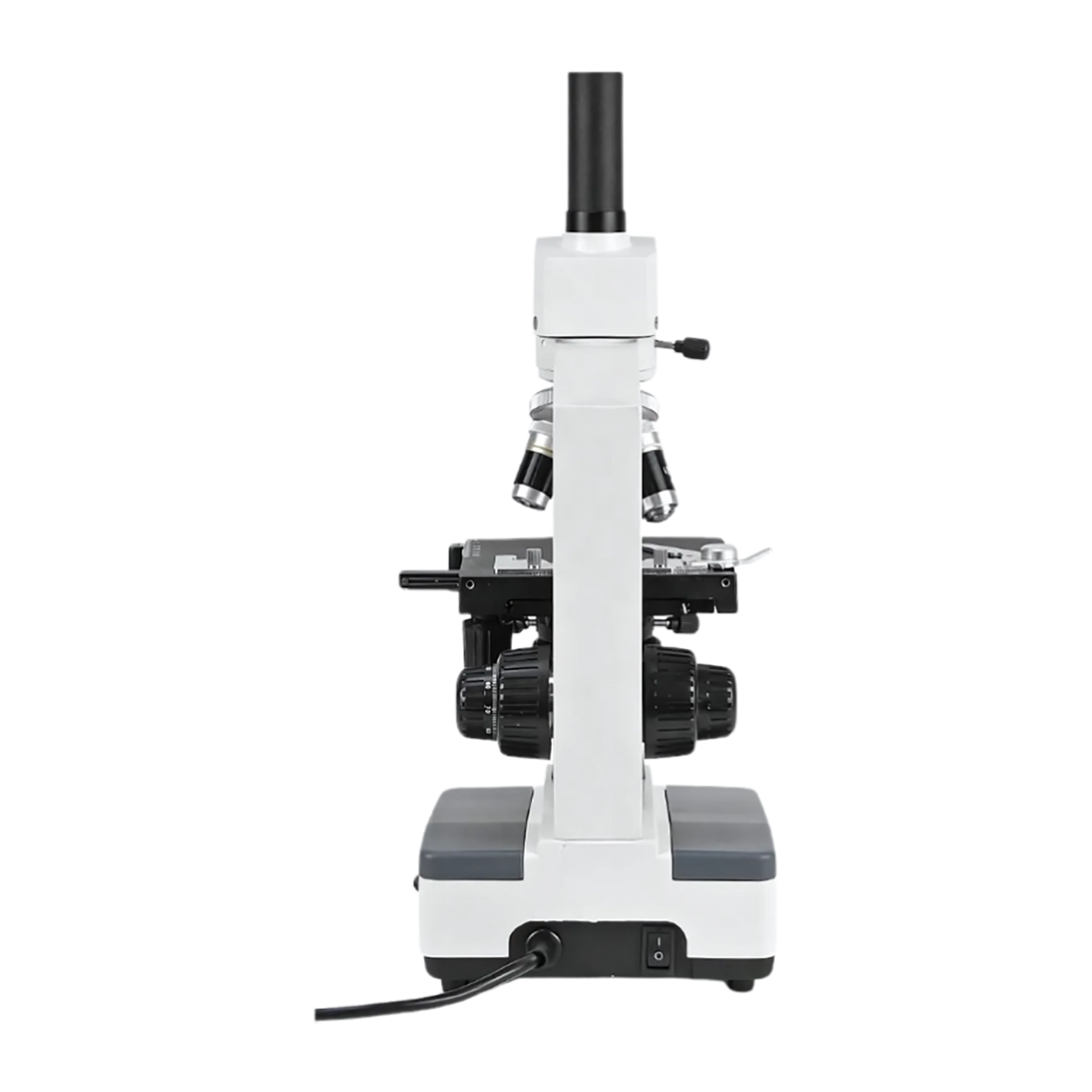

Biological Microscope LBN-BO128 is constructed with ergonomics in mind. It consists of a dual-view head with a 30°+90° slant and a quadruple inward nosepiece. It contains a coaxial coarse and fine focusing mechanism in addition to an achromatic optical system. It has an Abbe condenser with a filter holder and an iris diaphragm with a 1.25 aperture. In research facilities, academic institutions, and other places, it is employed for sample analysis.
| Optical Type | Achromatic |
|---|---|
| Standard Magnification | 40×-1000× |
| Head Type | Dual-View |
| Head Inclination | 30 degree + 90 degree |
| Head Rotation | Head Rotate 360 degree |
| Eyepiece Diameter | 23.2mm |
| Eyepiece | WF10×/18mm, 1 pc, wide field |
| Nosepiece | 4 holes, inward |
| Objective | Achromatic 4×, 10×, 40× (s), 100× (s, o) |
| Working Stage Type | 2 Layer Mechanical |
| Working Stage Size | 125 × 130mm |
| Working Moving Stage | 60 × 30 mm |
| Focusing Type | Coarse Coaxial & Fine, 20mm |
| Condenser | 1.25 N. A |
| Condenser Type | ⏀2-⏀30mm Iris Diaphragm, ⏀32mm Filter Holder |
| Light Source | Halogen, brightness adjustable |
| Power Supply | AC110V-220V |
| Transmit Light | 6V/20W |
| Weight | 18Kg |
| Dimensions (L × D × H) | 690 × 450 × 470 mm |
| Light Source (optional) | LED 1W, brightness adjustable |
It consists of an achromatic optical system
It comes with a halogen lamp as a light source
It is safe, reliable, and easy to use
Abbe type condenser with iris diaphragm and filter holder
Coaxial coarse and fine focusing types with a size of 20 nm
Biological Microscope is used for research analysis of samples at schools, laboratories, medical institutes, scientific research institutes, health clinics, etc.
