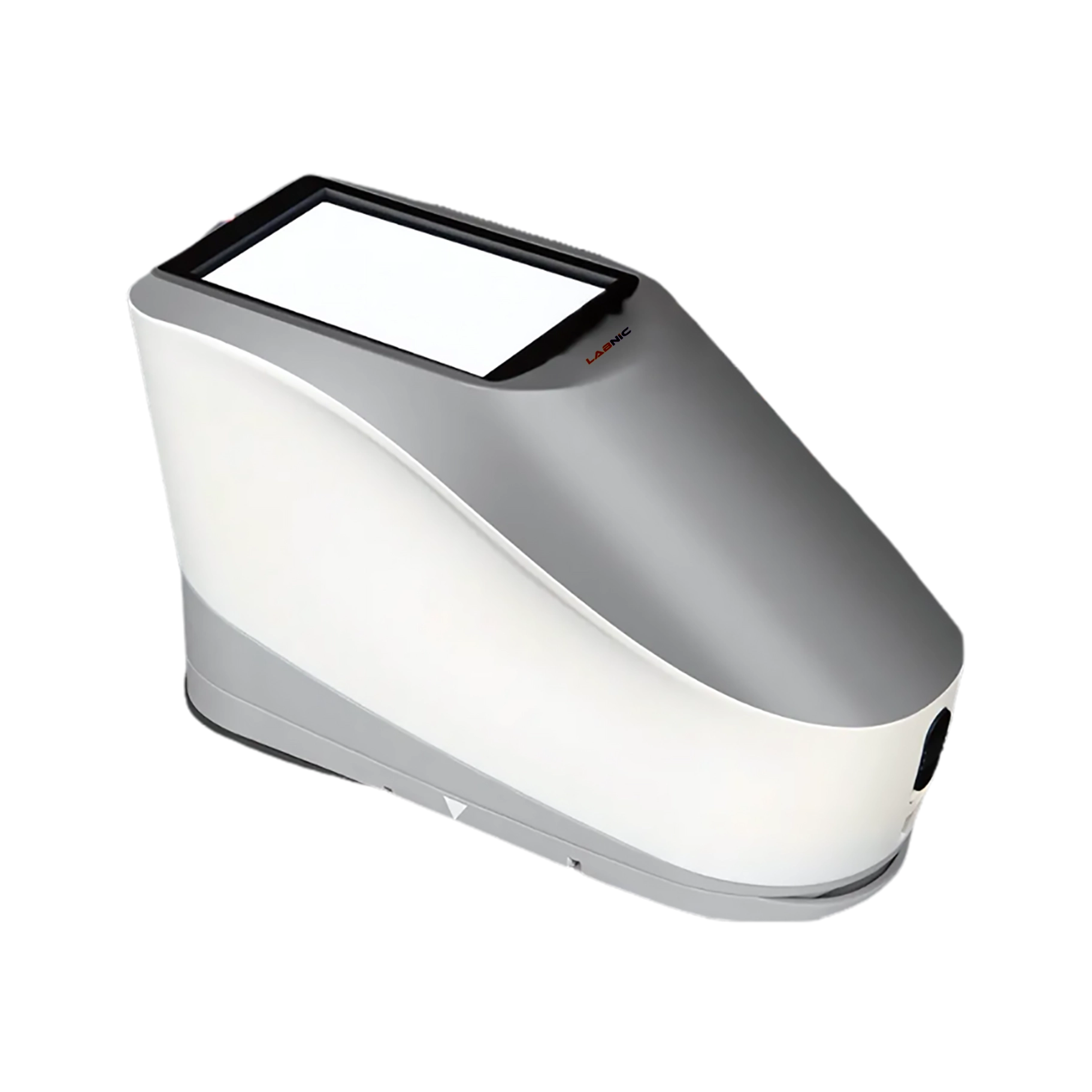

Portable Spectrophotometer LBN-PS132 is a handheld spectrophotometer with Bluetooth and USB dual modes for greater versatility, and it is compatible with SCI and SCE measurement data. With high-effective cost and 8mm aperture, it has good accuracy and enough storage for users’ requirements. PC software enables it to be connected to the computer for colour control quality management to achieve more functions.
| Optical Geometry | Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle) |
| Integrating Sphere Size | 48mm |
| Light Source | Combined LED Light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Single Aperture: 8mm/10mm |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50 |
| Measuring Time | 2.6s |
| Repeatability | MAV/SCI: ΔE*≤0.06 |
| Measurement Mode | Single Measurement, Average Measurement |
| Battery | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT colour LCD, Capacitive Touch Screen |
| Data Port | USB |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Dimensions (L × D × H) | 184 × 77 × 105mm |
| Weight | 600 g |
Beautiful appearance and perfect combination with ergonomic structure design
Use long life and low power consumption combined LED light source
Single 8mm aperture, support both SCI and SCE at the same time
Measure sample spectra and accurate Lab data, can be used in colour matching and accurate colour transmission
Super stain-resistant and stable standard white calibration plate
High electronic hardware configuration: 3.5-inch TFT colour LCD, Capacitive Touch Screen, concave grating, 256 Image Element Double Arrays CMOS Image Sensor
Widely useful USB port
Large capacity storage space, over 20,000 measurement data
Two standard observer angles, a variety of illuminant, a variety of colour indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for colour measurement
Camera Locating Function for better positioning
PC software has a powerful function extension
Power adaptor
Micro Printer
Spectrophotometers are widely used in laboratories and industries across many areas, including physics, molecular biology, chemistry, and biochemistry.
Download Catalog for Portable Spectrophotometer LBN-PS132
DownloadLabnic Portable Spectrophotometer features a compact and lightweight design for convenient application in any location. They provide high-precision measurements for accurate analysis across various wavelengths. Their user-friendly controls and intuitive interface ensure easy operation. They are built with durable materials to withstand demanding environments. Our Portable Spectrophotometer is ideal for laboratories and industries across many areas including molecular biology, chemistry, physics and biochemistry.
Illumination/Observation System : 45/0 (45 ring-shaped illumination, vertical viewing)
Integrating Sphere Size : Φ48mm
Spectral Separation Device : Concave Grating
Detector : 256 Image Element Double Array CMOS Image Sensor
Optical Geometry : Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle)
Integrating Sphere Size : 48mm
Light Source : Combined LED Light
Spectrophotometric Mode : Concave Grating
Optical Geometry : Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle)
Integrating Sphere Size : 48mm
Light Source : Combined LED Light, UV Light
Spectrophotometric Mode : Concave Grating
Integrating Sphere Size : Φ48mm
Light Source : Combined LED Light
Spectral Separation Device : Concave Grating
Detector : 256 Image Element Double Array CMOS Image Sensor
Integrating Sphere Size : Φ48mm
Light Source : Combined LED Light
Spectral Separation Device : Concave Grating
Detector : 256 Image Element Double Array CMOS Image Sensor
Labnic UV-Visible Spectrophotometer delivers precise and reliable optical measurements. They detect contamination at early stages, ensuring accurate results. Their compact footprint minimizes lab bench area, optimizing workspace efficiency. They feature a large sample chamber, allowing handling and replacement of samples. Our UV-Visible Spectrophotometer is suitable for clinical examination, medical industry, biochemistry, and research institutes.
Optical System : Double beam
Detector : PMT
Wavelength Range : 190 – 900 nm
Spectral Bandwidth : 0.1 nm – 5 nm
Optical System : Single Beam
Spectral Bandwidth : 4.0 nm
Wavelength Range : 200-1000 nm
Wavelength Accuracy : ±2 nm
Optical System : Single Beam
Spectral Bandwidth : 2.0 nm
Wavelength Range : 190-1100 nm
Wavelength Accuracy : ±0.5 nm
Labnic Visible Spectrophotometer designed with high photometric accuracy delivers reliable and consistent results. They feature a compact design, allowing easy integration into laboratory settings. Their auto-setting wavelength function simplifies wavelength selection for precise measurements. They offer user-friendly interface for ease of operation. Our Visible Spectrophotometer is essential for chemical, biochemical, and medical laboratories.
Optical System : Single Beam
Wavelength Range : 320 to 1100 nm
Spectral Bandwidth : 2.0nm
Wavelength Accuracy : ±0.5nm
Optical System : Single Beam
Wavelength Range : 325 to 1000 nm
Spectral Bandwidth : 4.0nm
Wavelength Accuracy : ±2nm
Labnic Micro Spectrophotometer features a robust design ensuring durability and reliable performance. They offer auto calibration for consistent and accurate measurements. Their multi-mode functionality supports various applications. These devices include a wide wavelength range, enabling precise analysis across different sample types. Our Micro Spectrophotometer is well-suited for molecular biology, biochemistry, physics, environmental testing, and many more.
Optical Path : 1, 0.5, 0.05 mm Automatic Conversion
Wavelength Scanning Range : 190 to 850 nm
Wavelength Accuracy : ± 1 nm
Wavelength Resolution : 2 nm (FWHM Hg 546 nm)
