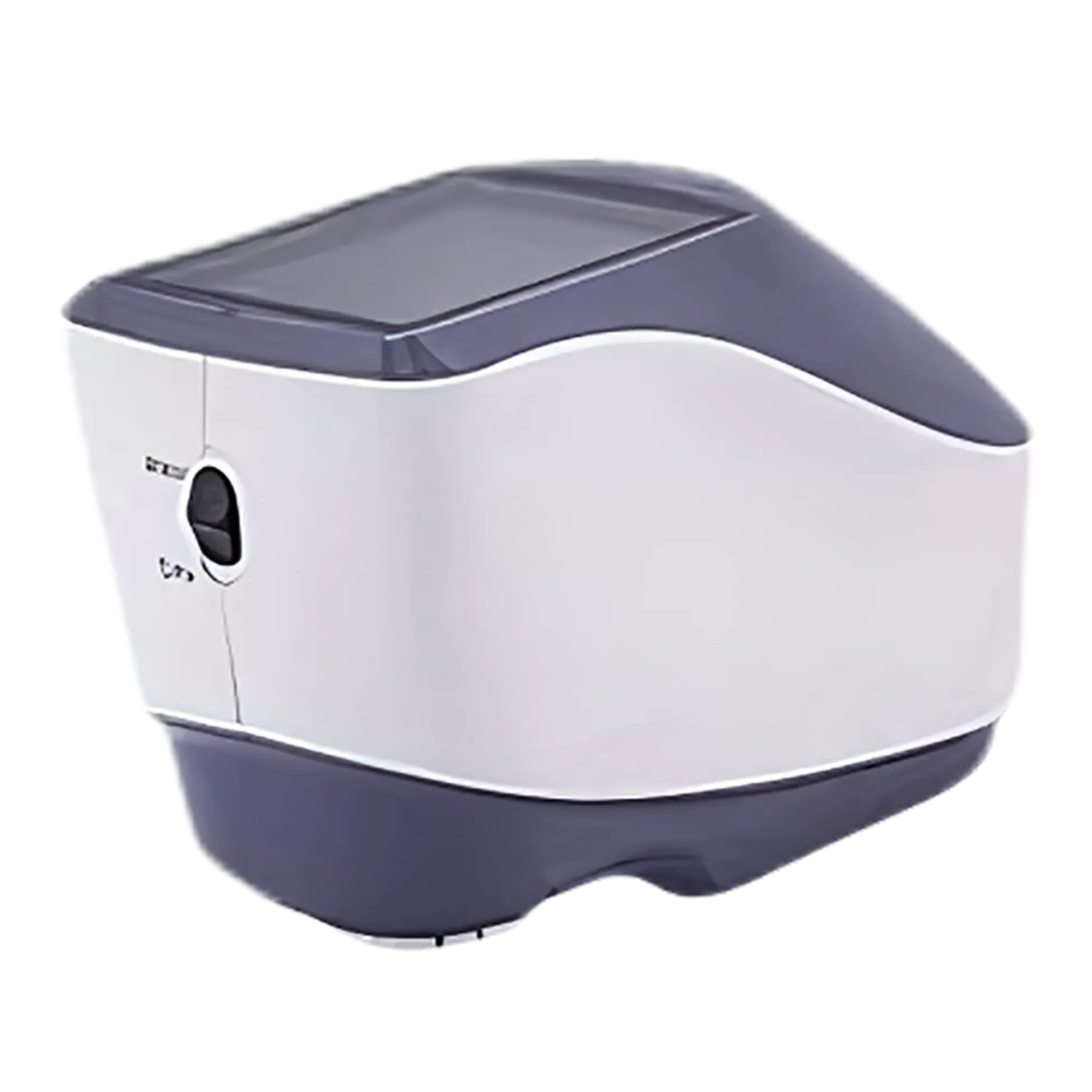

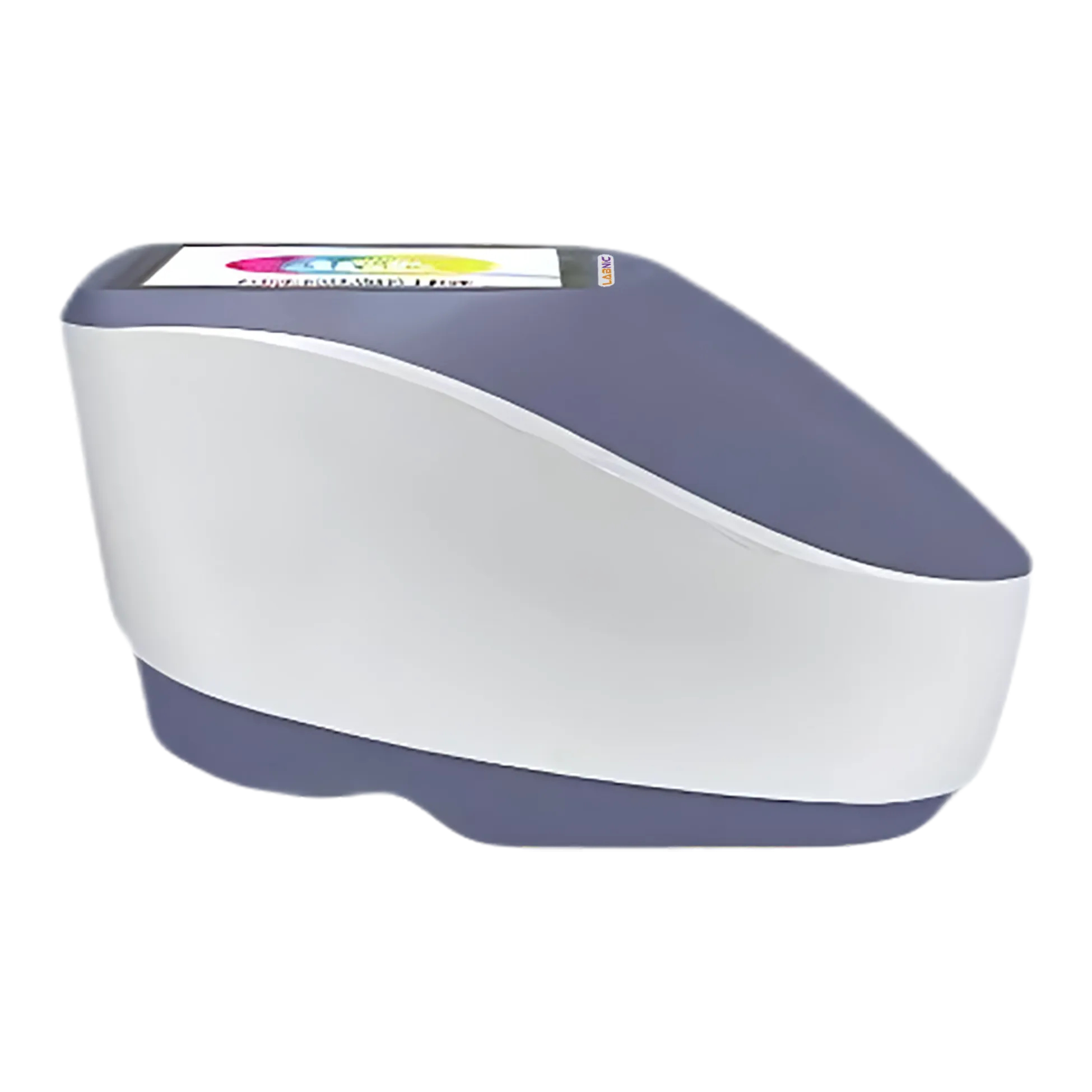

Portable Spectrophotometer LBN-PS134 is a handheld spectrophotometer with full set of light sources, dual apertures (8 and 4mm), SCI/SCE, UV, USB/Bluetooth, it has high accuracy and large storage, very suitable for lab colour analysis and transmission. Accuracy, stability and its powerful functions make it in the leading position of colour industry.
| Optical Geometry | Reflect: di:8°, de:8° (diffused illumination, 8-degree viewing angle) |
| Integrating Sphere Size | 48mm |
| Light Source | Combined LED Light, UV Light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400-700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | Dual Aperture: 10mm/8mm & 5mm/4mm |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Measuring Time | 2.6s |
| Repeatability | MAV/SCI: ΔE*≤0.03 |
| Measurement Mode | Single Measurement, Average Measurement |
| Battery | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT colour LCD, Capacitive Touch Screen |
| Data Port | USB, Bluetooth 4.0 |
| Data Storage | Standard 2000 Pcs, Sample 20000 Pcs |
| Dimensions (L × D × H) | 186 × 77 × 105mm |
| Weight | 600 g |
Beautiful appearance and perfect combination with ergonomic structure design
Use long life and low power consumption combined LED light source
Single 8mm aperture, support both SCI and SCE at the same time
Measure sample spectra and accurate Lab data, can be used in colour matching and accurate colour transmission
Super stain-resistant and stable standard white calibration plate
High electronic hardware configuration: 3.5-inch TFT colour LCD, Capacitive Touch Screen, concave grating, 256 Image Element Double Arrays CMOS Image Sensor
Widely useful USB port
Large capacity storage space, over 20,000 measurement data
Two standard observer angles, a variety of illuminant, a variety of colour indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for colour measurement
Camera Locating Function for better positioning
PC software has a powerful function extension
Power adaptor
Micro Printer
Spectrophotometers are widely used in laboratories and industries across many areas, including physics, molecular biology, chemistry, and biochemistry.
