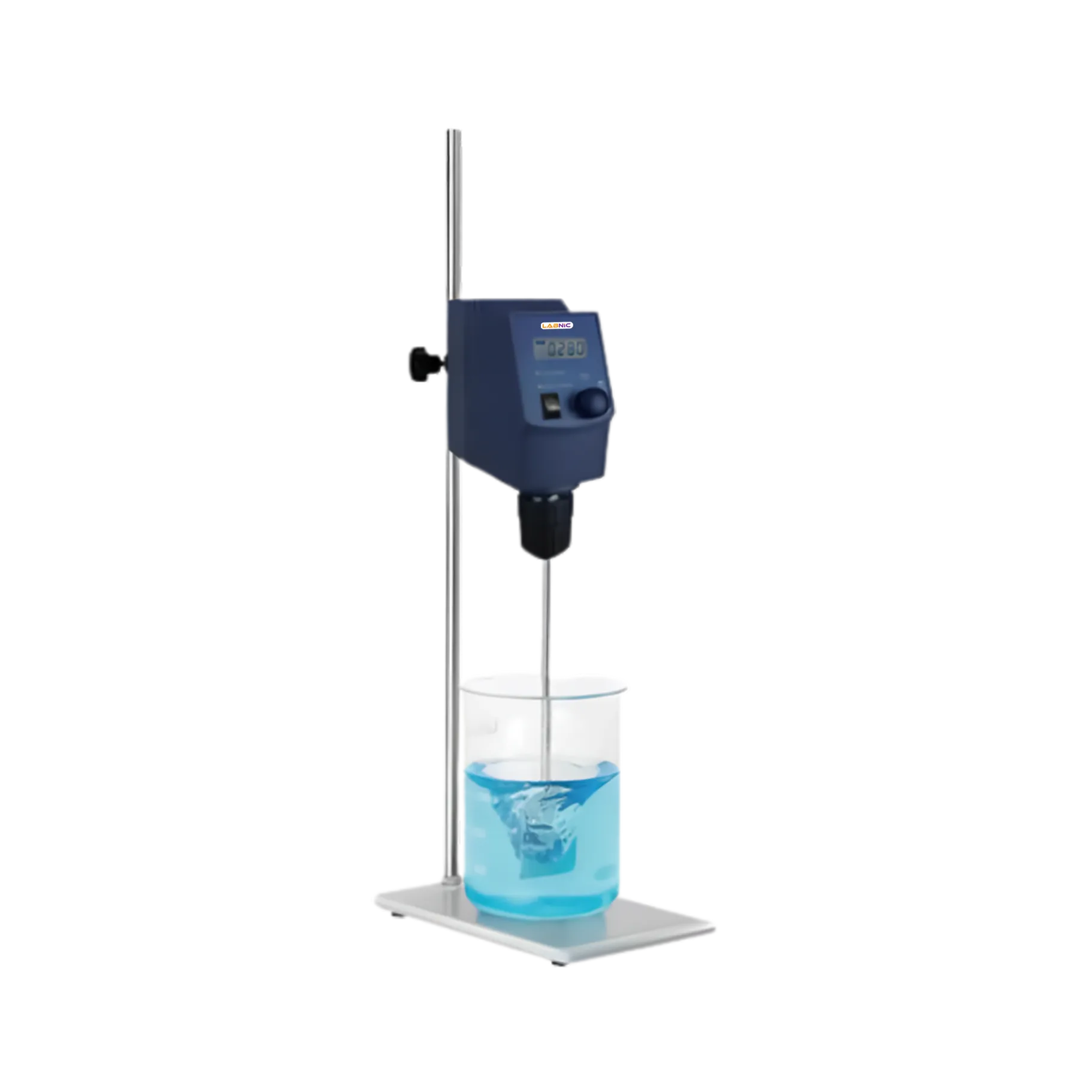

Overhead Stirrer LBN-OS124 is a high-performance component, designed uniquely with safety circuits, which stops functioning in case of anti-stall or overload conditions, producing constant speed even with the change in viscosities of the samples. It produces smooth operation offering a speed range of 50 to 2200 rpm, preventing accidental spillage, and splashing of sample solution during the operation. The device automatically restarts in case of power loss helps for overnight operations.
Speed Range | 50 to 2200 rpm |
Maximum Stirring Quantity [H2O] | 20 L |
Speed Display Accuracy | ±3 rpm |
Speed Display | LCD |
Motor Type | Brushless DC motor |
Ambient Temperature | 5 to 40 °C |
Humidity | 80 %RH |
Maximum Torque | 40 Ncm |
Maximum Viscosity | 10000 mPas |
Chuck Range Diameter | 0.5 to 10 mm |
Data Connector | RS232 |
Overload Protection Display | LED lights |
Power | 70 W |
Motor Input Power | 60 W |
Motor Output Power | 50 W |
Voltage | 100 to 240 V, 50/60 Hz |
Dimension [W×D×H] | 83×220×186 mm |
Weight | 2.8 kg |
It has high reliability and outstanding performance
Designed with an LCD for precise monitoring of set and actual speeds, a wide range of speeds from 50 to 2200 rpm with control accuracy of ±3rpm
Equipped with Brushless DC motor for long life, maintenance-free and explosion-proof, torque trend display for real-time information on viscosity change
Featured with safety circuits, in case of anti-stall or overload conditions the device automatically stops functioning
Smooth operation prevents accidental spillage and splashing of sample solution
Even with the change in viscosities of the samples it maintains constant speed
Can be connected to PC for remote operation and data transmission
Adopts auto-restart function in case of power loss for overnight operations
Overhead Stirrer are mainly used for mixing, homogenizing, suspending, and recirculating large volumes or high-viscosity substances.
