Overview

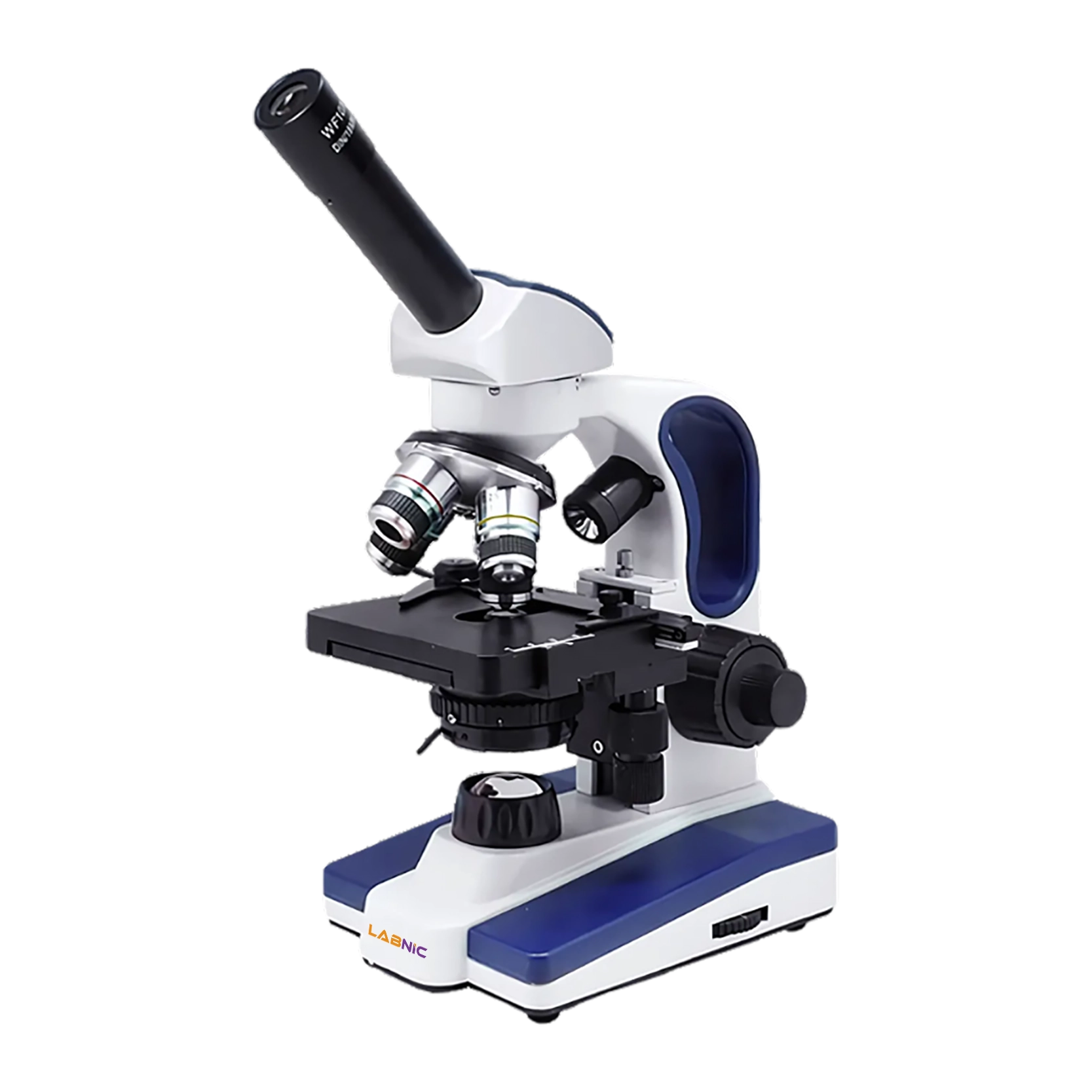

Biological Microscope LBN-BO132 consists of a monocular viewing head with a 45° incline and 360° of rotation. It features an achromatic optical system objective of 4x-100x in both spring and oil. An Abbe condenser is used with an iris diaphragm of aperture 1.25. It consists of dual LED illumination as a light source, and the brightness can be adjusted. It is ergonomically designed and user-friendly in nature. used in research analysis of samples at laboratories.

Specifications :
Optical Type Achromatic
Standard Magnification 40×-100×
Head Type Monocular
Head Inclination 45 degree
Head Rotation Head Rotate 360 degree
Eyepiece Diameter 23.2mm
Eyepiece WF10x2 pcs, 1 pc with pointer, both tube adjustable
Nosepiece 4 holes, outward
Objective Achromatic 4´, 10´, 40´ (s), 100´ (s, o)
Working Stage Type 2 Layer Mechanical
Working Stage Size 100 × 90mm
Working Moving Stage 30 × 60mm (moving)
Focusing Type Coarse Coaxial & Fine
Condenser 1.25 N. A
Condenser Type Abbe, Iris Diaphragm
Light Source LED, brightness adjustable
Power Supply AC110V-240V, cordless rechargeable
Transmit Light 6V/20W
Weight 4Kg/3Kg
Dimensions (L × D × H) 310 × 210 × 420 mm
Features :
  • It is safe, reliable, and easy to use
  • It consists of an achromatic optical system
  • Abbe and iris diaphragm condenser type
  • It features an abbe condenser with an iris diaphragm
  • Dual LED illumination as a light source
  • A cordless rechargeable power supply
Applications :

Biological Microscope is used for research analysis of samples, tissue culture, cell examinations, at laboratories, medical institutes, scientific research institutes, health clinics, etc.
