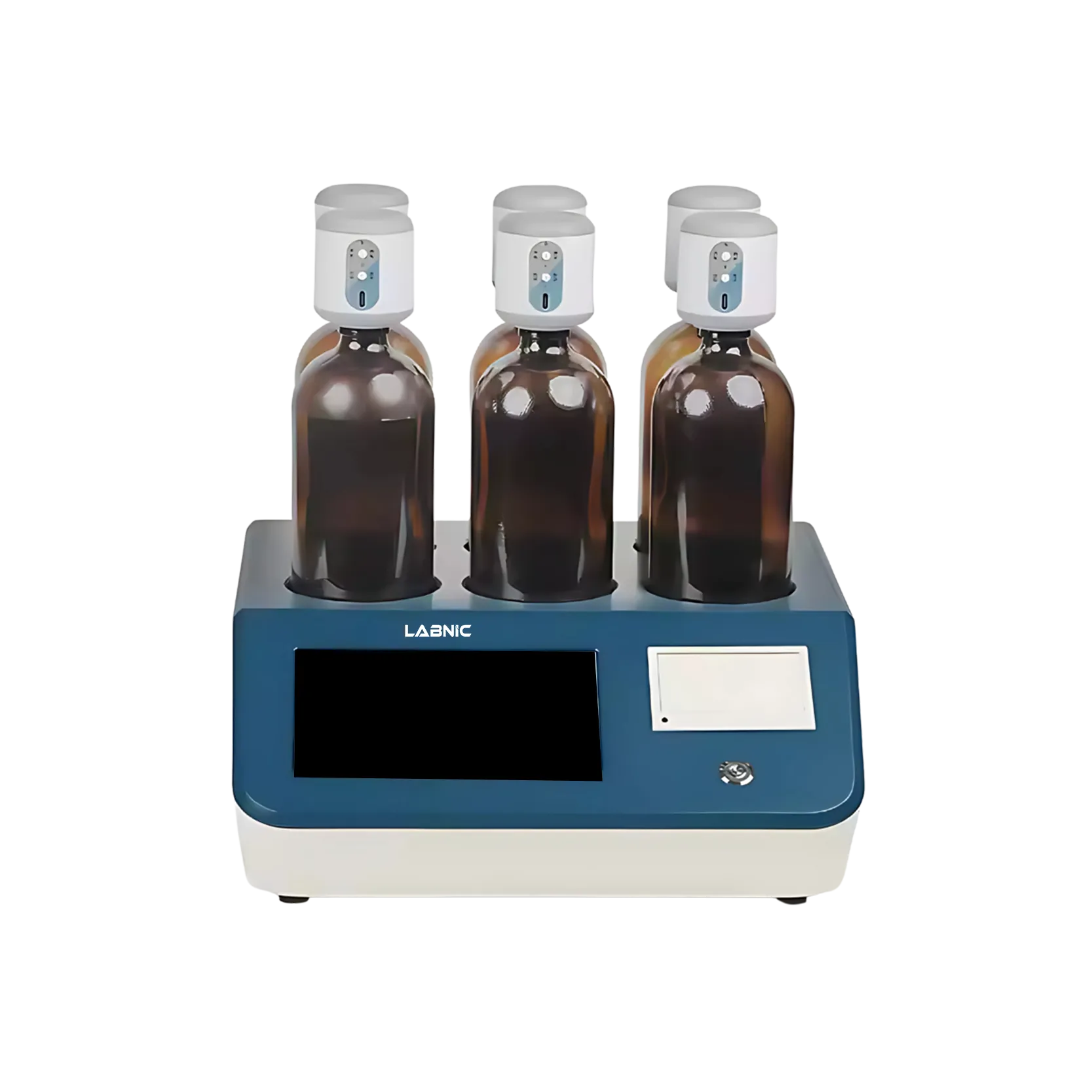

BOD Meter LBN-BD112 allows simultaneous measurement of six samples with selectable range. It is equipped with six independent terminals that support real-time group additions. Built-in system directly reads BOD concentration without calculations or conversions. Incorporated mercury-free differential pressure design ensures accuracy and user safety. Our BOD Meter is suitable for applications in sewage discharge units, environmental monitoring, treatment plants, and universities.
| Measurement Range | 0 to 4000mg/L (Direct Measurement) |
|---|---|
| Resolution | 0.01mg/L |
| Sampling Points | ≤60/Cycle |
| Measurement Principle | Mercury-Free Differential Pressure Method |
| Measurement Accuracy | ±8% |
| Data Storage | 10 Years of Test Data Can Be Stored |
| Stirring | Program Control, Magnetic Stirring |
| Measurement Cycle | 1 Day to 30 Days |
| Number of Measurements | 6 Independent Groups of Tests |
| Culture Bottle Volume | 580ml |
| Culture Temperature | 20±1℃ |
| Battery Life | ≥2 Years |
| Power Supply | AC220V±10%/50 to 60Hz |
| Product Dimension | 275 × 185 × 305mm |
| Packing Dimension | 550 × 390 × 410mm |
| Weight | 9.7 kg |
Automatically records measurement data
Adjustable culture cycle
Fully automatic measurement process
Large-size LCD display
Large-capacity battery
User-friendly
Accurate test data
Host -1
Detection head -6
Data cable -6
Electronic adapter -1
Stirring rod -6 (std)
Reagent bottle -6 (std)
Medicine cup -6 (std
Sealing ring -6 (std)
BOD detection reagent -1 (set)
Reagent bottle -4 (std)
Reagent bottle rack -1 (std)
Instruction manual -1
Product certificate -1
Warranty card -1
BOD Meter LBN-BD112 is suitable for biochemical oxygen demand determination in sewage discharge enterprises, environmental monitoring, sewage treatment plants, third-party testing institutions, scientific research, universities and other fields.
