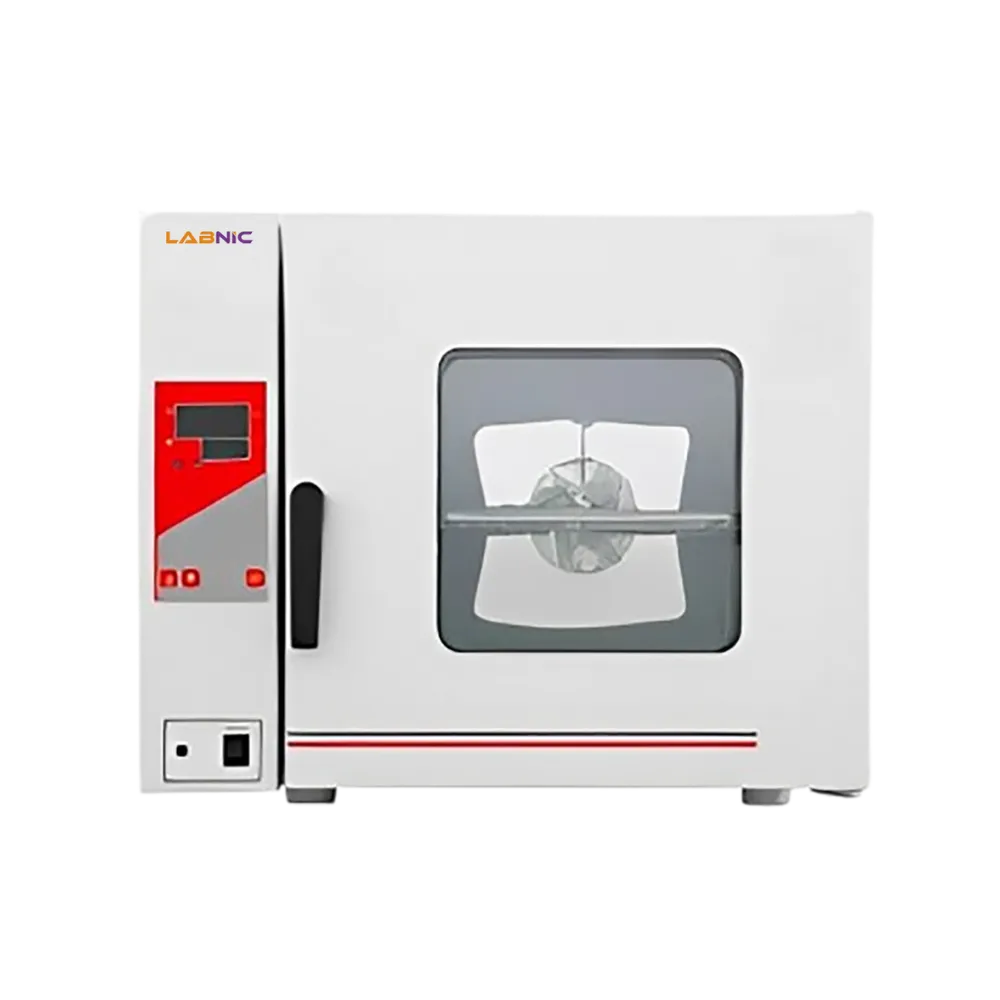

Drying Oven LBN-DO156 supports temperature up to 200 with uniform consistency of ±2.5°C. It has unique door design reducing heat emission. Incorporated with cold-rolling steel and mirror stainless steel working chamber. Built-in dual LED screens shows temperature, time, and alarm control features. Our Drying Oven is a high temperature oven which is suitable for heat drying glasswares and food in chemical, pharmaceutical and food industries.
| Volume | 456 L |
|---|---|
| Temperature Range | RT+5 to 200°C |
| Temperature Resolution | 1°C |
| Temperature Fluctuation | ±1°C |
| Temperature Uniformity | ±2.5°C |
| Heating Rate | Greater Than 4 |
| Timer Range | 0 to 999 min |
| No of Shelves | 3/6 |
| Load Per Shelf | 15 Kg |
| Power | 3100 W |
| Power Supply | 380V, 50Hz |
| Internal Dimension W×D×H | 595×515×1295 mm |
| Housing Dimensions W×D×H | 780×696×1760 mm |
| Package Dimension W×D×H | 930×900×1920 mm |
| Net Weight | 176 Kg |
| Gross Weight | 204 Kg |
Power supply recovery function
Rotary two stage locking structure
Easy to open door handle
Flexible shelving system
Access port for data logging
Drying Oven LBN-DO156 is generally used in chemical, pharmaceutical, food industries as well as textiles, and electronic components.
