Drying Oven LBN-DO156 is a bench top model that takes up little bench space and is designed to provide trouble-free operation for a variety of needs. The instrument is well-suited to a wide range of applications up to 200°C, with temperature uniformity as good as 2.5°C. It has a chamber volume of 456 liters, a cold-rolling steel shell, and a mirror stainless steel working chamber. The unit includes an observation glass window as well as dual LED screens with temperature, time, and alarm control options.
| Volume | 456 L |
| Temperature Range | RT+5 - 200°C |
| Temperature Resolution | 1°C |
| Temperature Fluctuation | ±1°C |
| Temperature Uniformity | ±2.5°C |
| Heating Rate | ˃4 |
| Timer Range | 0 – 999 min |
| No of Shelves | 3/6 |
| Load Per Shelf | 15 Kg |
| Power | 3100 W |
| Power Supply | 380V, 50Hz |
| Internal Dimension W×D×H | 595×515×1295 mm |
| Housing Dimensions W×D×H | 780×696×1760 mm |
| Package Dimension W×D×H | 930×900×1920 mm |
| Net Weight | 176 Kg |
| Gross Weight | 204 Kg |
Unique door design reduces heat emission
Time for effective usage and additional energy savings
Space saving foot print
Flexible shelving system allows for optimal space utilization
Temperature uniformity of ±2.5°C
Easy setting with intuitive interface
Easy to open door handle
Dual LED screens and soft touch keys
Rotary two stage locking structure has good sealing performance
Rounded corners of the chambers are easy to clean and maintain
Power supply recovery function helps in data retrieval during power failure
Due to air convention breeze device air in the chamber can be renewed and circulated
Access port for data logging
Audible and visual alarm functions ensure both sample and operator safety
It is widely used to dry glassware, sterilize general instruments etc. in chemical and pharmaceutical industries, food industries, and textiles and electronic components.
Download Catalog for Drying Oven LBN-DO156

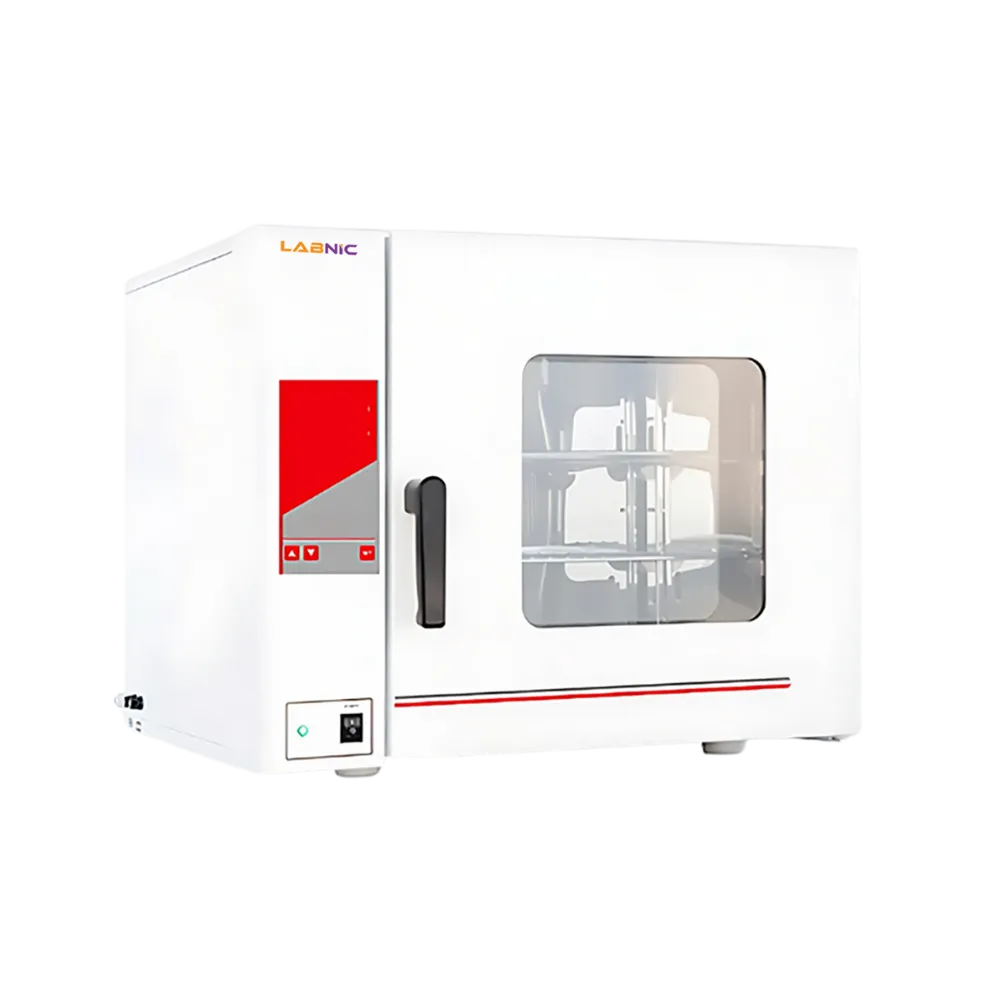

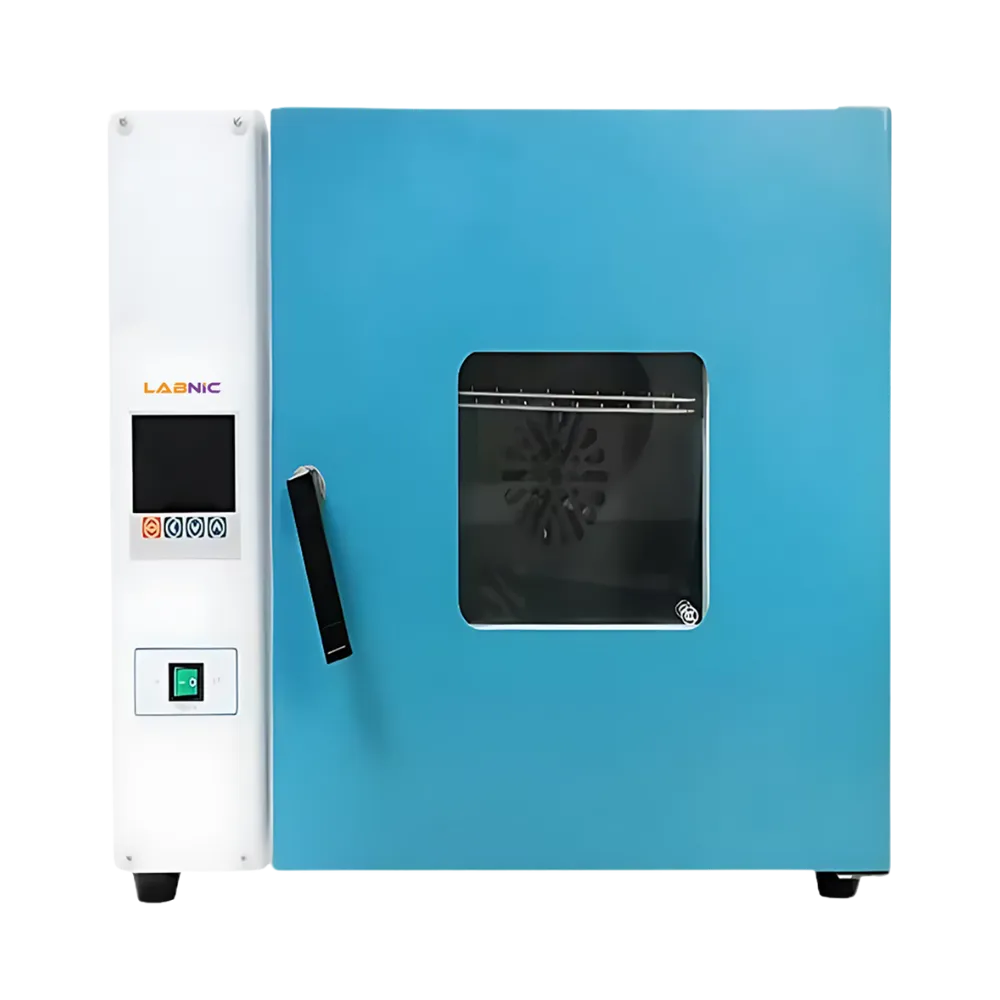

DownloadLabnic Drying Oven is available in a chamber volume ranging from 20 L to 456 L for accommodating various sample sizes. They offer precise temperature control to ensure consistent results. Their time settings can be adjusted for optimal performance. They incorporate an air convection system that renews and circulates air for uniform drying. Our compact Drying Oven is ideal for application in chemical, pharmaceutical, food, and textile industries.
Volume : 20 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 40 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 76 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 142 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 234 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 64 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 129 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 210 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 284 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 452 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Labnic Vacuum Drying Oven removes moisture from sensitive materials using low pressure and heat. They incorporate cavity pre-heating technology and shelf heat transfer for smooth operation. These ovens ensure gentle drying without damaging the material. They offer precise temperature control for optimal performance. Our Vacuum Drying Oven is ideal for applications in the electrical and semi-conductor industries, life sciences, and agricultural research.
Capacity : 50 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±1℃
Temperature Fluctuation : ±1℃
Convection Mode : Natural Convection
Capacity : 23 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±1℃
Capacity : 23 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±0.1℃
Temperature Fluctuation : ±0.5℃
Capacity : 50 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±0.1℃
Temperature Fluctuation : ±0.5℃

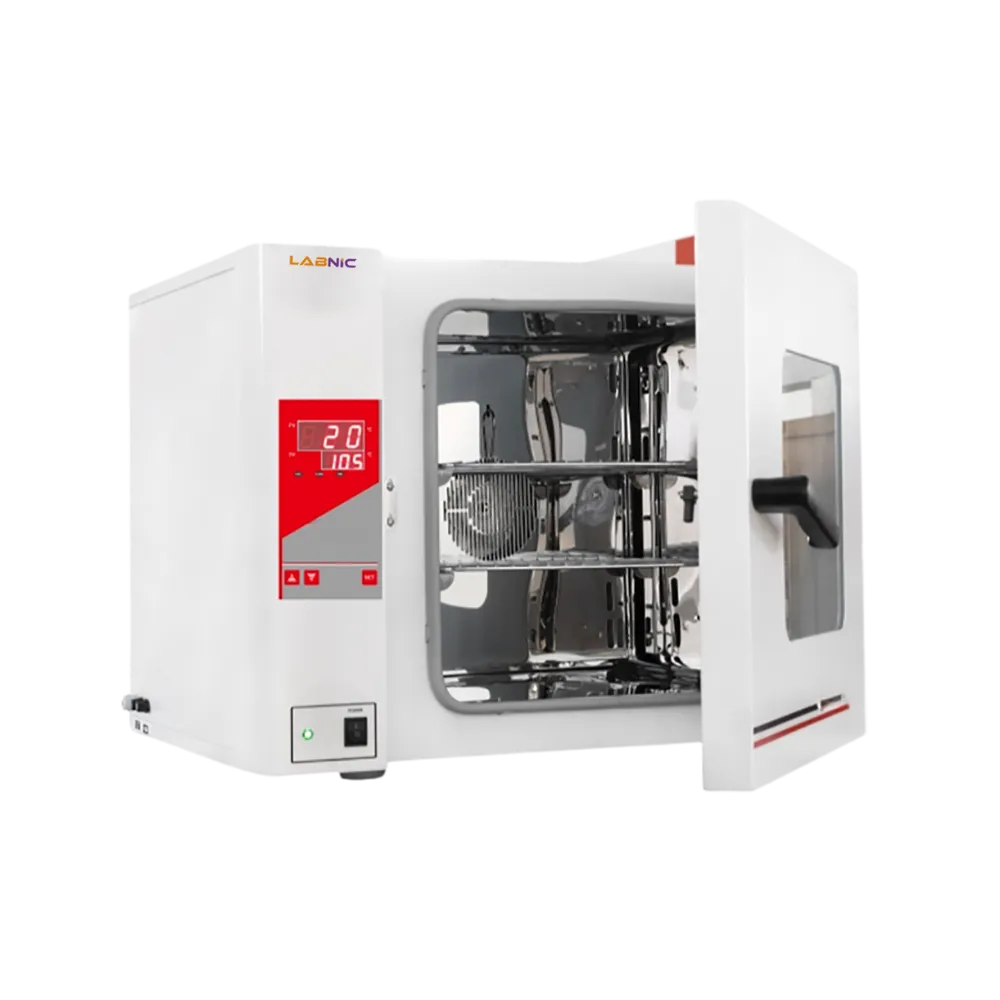

Labnic Microprocessor Controlled Digital Oven provides precise temperature control for consistent results. They include a digital display for ease of parameter settings. Their data logging capabilities capture time and heat information for tracking and quality assurance. These ovens include adjustable airflow for better ventilation control. Our Microprocessor Controlled Digital Oven is designed to be compact and space-efficient for a wide range of applications.
Temperature Range : RT +10℃ to 300℃
Temperature Precision : 0.1℃
Temperature Uniformity : ≤ Max Temp. + 2.5%
Circulation Mode : Back heating, forced convection
