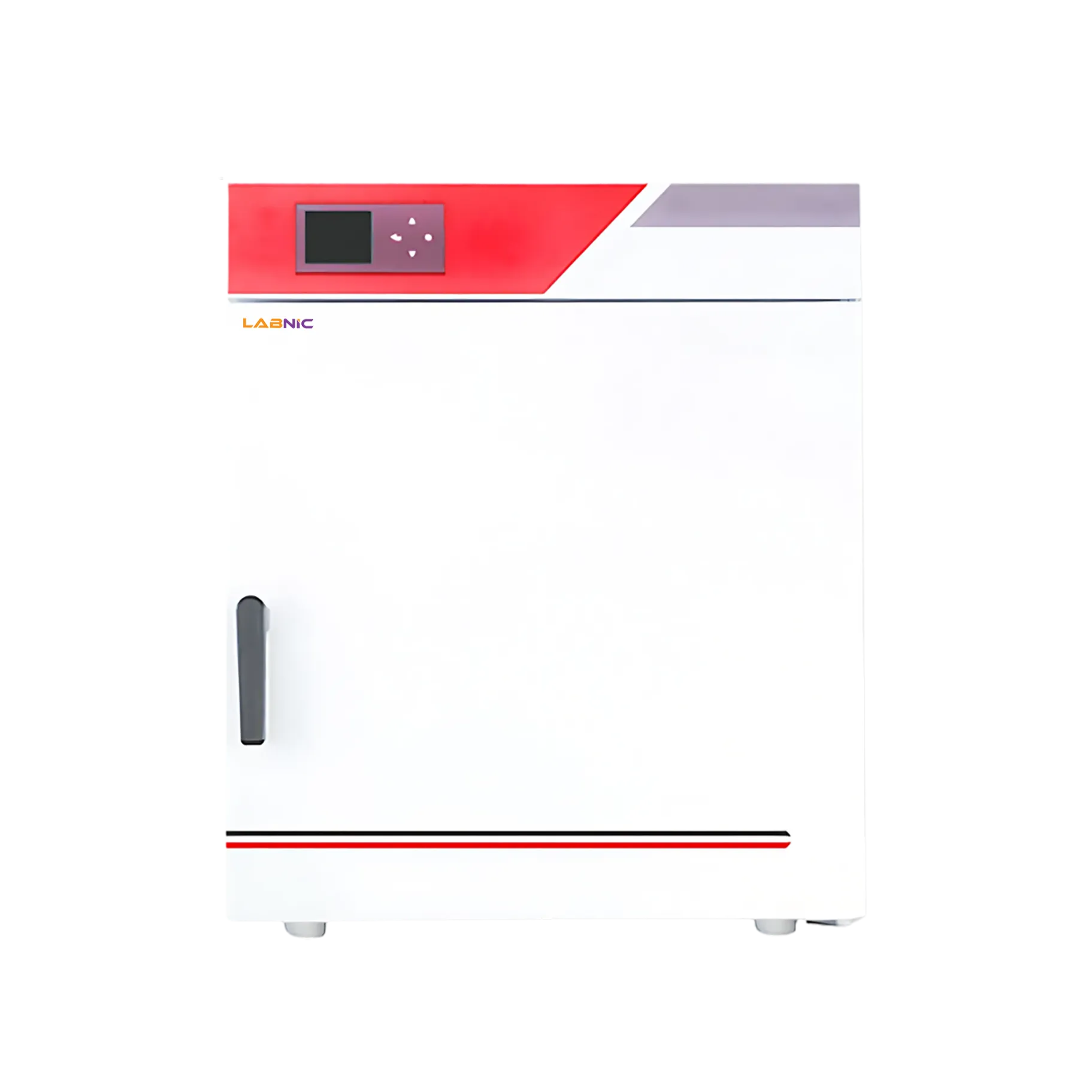

Drying Oven LBN-DO161 is a bench top model occupying minimal bench space and is built to provide trouble free operation for various needs. The instrument is optimally suited to various applications up to 300°C with a temperature uniformity as good as ±2.5°C. It has a chamber volume of 64 liters and shell is made of cold-rolling steel and working chamber of mirror stainless steel. The unit has an observation glass window and 2/5 shelves with a load capacity of 15 kg per shelf.
| Volume | 64 L |
| Temperature Range | RT+5 - 300°C |
| Temperature Resolution | 0.1°C |
| Temperature Fluctuation | ±1°C |
| Temperature Uniformity | ±2.5°C |
| Heating Rate | ˃ 5 |
| Timer Range | 0 – 9999 min |
| No of Shelves | 2/5 |
| Load Per Shelf | 15 Kg |
| Power | 1550 W |
| Power Supply | 220V, 50Hz |
| Internal Dimension W×D×H | 410×350×450 mm |
| Housing Dimensions W×D×H | 555×566×722 mm |
| Package Dimension W×D×H | 675×726×872 mm |
| Net Weight | 42 Kg |
| Gross Weight | 60 Kg |
Unique door design reduces heat emission
Time for effective usage and additional energy savings
Space saving foot print
Flexible shelving system allows for optimal space utilization
Temperature uniformity of ±2.5°C
Easy setting with intuitive interface
Easy to open door handle
Dual LED screens and soft touch keys
Rotary two stage locking structure has good sealing performance
Rounded corners of the chambers are easy to clean and maintain
Power supply recovery function helps in data retrieval during power failure
Due to air convention breeze device air in the chamber can be renewed and circulated
Access port for data logging
Audible and visual alarm functions ensure both sample and operator safety
It is widely used to dry glassware, sterilize general instruments etc. in chemical and pharmaceutical industries, food industries, and textiles and electronic components.
Download Catalog for Drying Oven LBN-DO161
DownloadLabnic Drying Oven is available in a chamber volume ranging from 20 L to 456 L for accommodating various sample sizes. They offer precise temperature control to ensure consistent results. Their time settings can be adjusted for optimal performance. They incorporate an air convection system that renews and circulates air for uniform drying. Our compact Drying Oven is ideal for application in chemical, pharmaceutical, food, and textile industries.
Volume : 20 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 40 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 76 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 142 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 234 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 456 L
Temperature Range : RT+5 - 200°C
Temperature Resolution : 1°C
Temperature Fluctuation : ±1°C
Volume : 129 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 210 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 284 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Volume : 452 L
Temperature Range : RT+5 - 300°C
Temperature Resolution : 0.1°C
Temperature Fluctuation : ±1°C
Labnic Microprocessor Controlled Digital Oven provides precise temperature control for consistent results. They include a digital display for ease of parameter settings. Their data logging capabilities capture time and heat information for tracking and quality assurance. These ovens include adjustable airflow for better ventilation control. Our Microprocessor Controlled Digital Oven is designed to be compact and space-efficient for a wide range of applications.
Temperature Range : RT +10℃ to 300℃
Temperature Precision : 0.1℃
Temperature Uniformity : ≤ Max Temp. + 2.5%
Circulation Mode : Back heating, forced convection
Labnic Vacuum Drying Oven removes moisture from sensitive materials using low pressure and heat. They incorporate cavity pre-heating technology and shelf heat transfer for smooth operation. These ovens ensure gentle drying without damaging the material. They offer precise temperature control for optimal performance. Our Vacuum Drying Oven is ideal for applications in the electrical and semi-conductor industries, life sciences, and agricultural research.
Capacity : 23 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±0.1℃
Temperature Fluctuation : ±0.5℃
Capacity : 50 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±1℃
Temperature Fluctuation : ±1℃
Capacity : 50 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±0.1℃
Temperature Fluctuation : ±0.5℃
Convection Mode : Natural Convection
Capacity : 23 L
Temperature Range : 5 to 250 °C
Temperature Resolution : ±1℃
