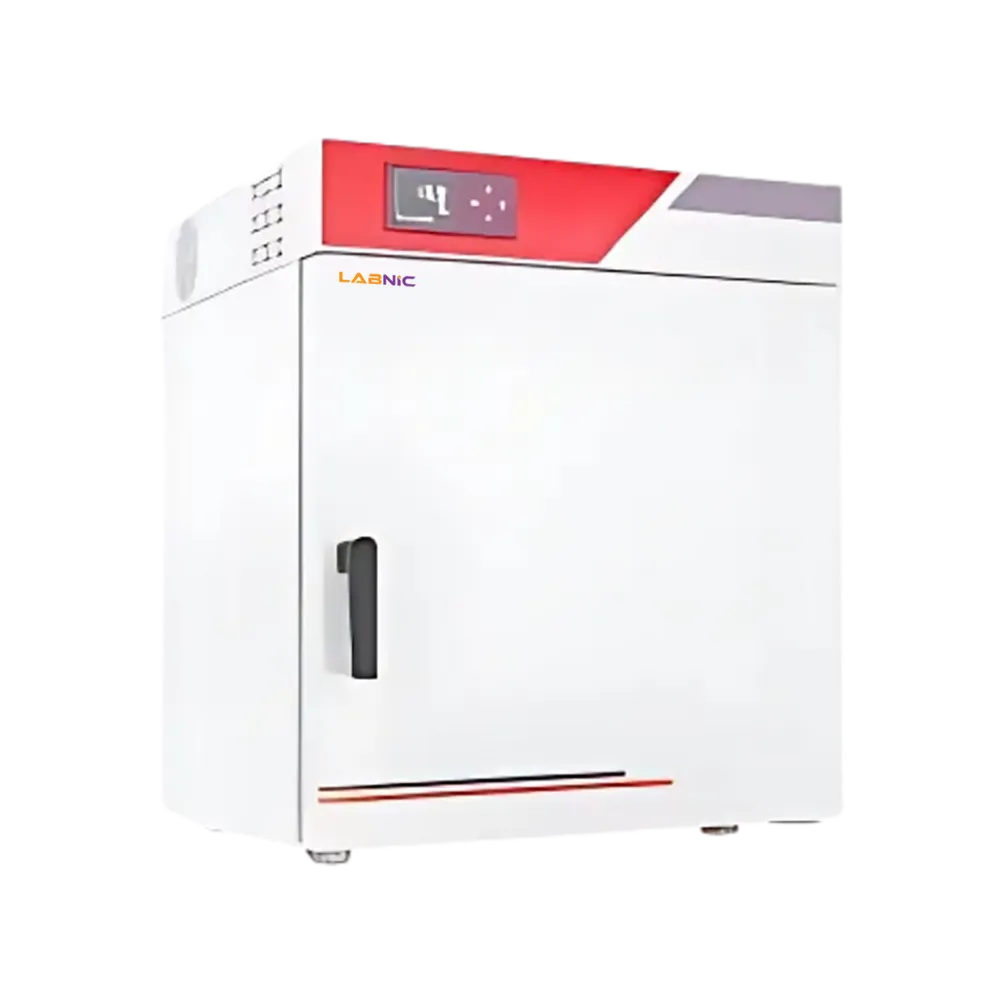

Drying Oven LBN-DO165
Drying Oven LBN-DO165

Drying Oven LBN-DO165

www.labnic.com | info@labnic.com

Overview

Drying Oven LBN-DO165 is a bench top model occupying minimal bench space and is built to provide trouble free operation for various needs. The instrument is optimally suited to various applications up to 300°C with a temperature uniformity as good as ±2.5°C. It has a chamber volume of 452 liters and shell is made of cold-rolling steel and working chamber of mirror stainless steel. The unit is provided with an observation glass window and 4/18 shelves with a load capacity of 15 kg per shelf.

Specifications :
Volume 452 L
Temperature Range RT+5 - 300°C
Temperature Resolution 0.1°C
Temperature Fluctuation ±1°C
Temperature Uniformity ±2.5°C
Heating Rate ˃ 5
Timer Range 0 – 9999 min
No of Shelves 4/18
Load Per Shelf 15 Kg
Power 3500 W
Power Supply 220V, 50Hz
Internal Dimension W×D×H 600×580×1300 mm
Housing Dimensions W×D×H 774×845×1704 mm
Package Dimension W×D×H 894×1005×1854 mm
Net Weight 145 Kg
Gross Weight 174 Kg
Features :
  • Unique door design reduces heat emission
  • Time for effective usage and additional energy savings
  • Space saving foot print
  • Flexible shelving system allows for optimal space utilization
  • Temperature uniformity of ±2.5°C
  • Easy setting with intuitive interface
  • Easy to open door handle
  • Dual LED screens and soft touch keys
  • Rotary two stage locking structure has good sealing performance
  • Rounded corners of the chambers are easy to clean and maintain
  • Power supply recovery function helps in data retrieval during power failure
  • Due to air convention breeze device air in the chamber can be renewed and circulated
  • Access port for data logging
  • Audible and visual alarm functions ensure both sample and operator safety
Applications :

It is widely used to dry glassware, sterilize general instruments etc. in chemical and pharmaceutical industries, food industries, and textiles and electronic components.
