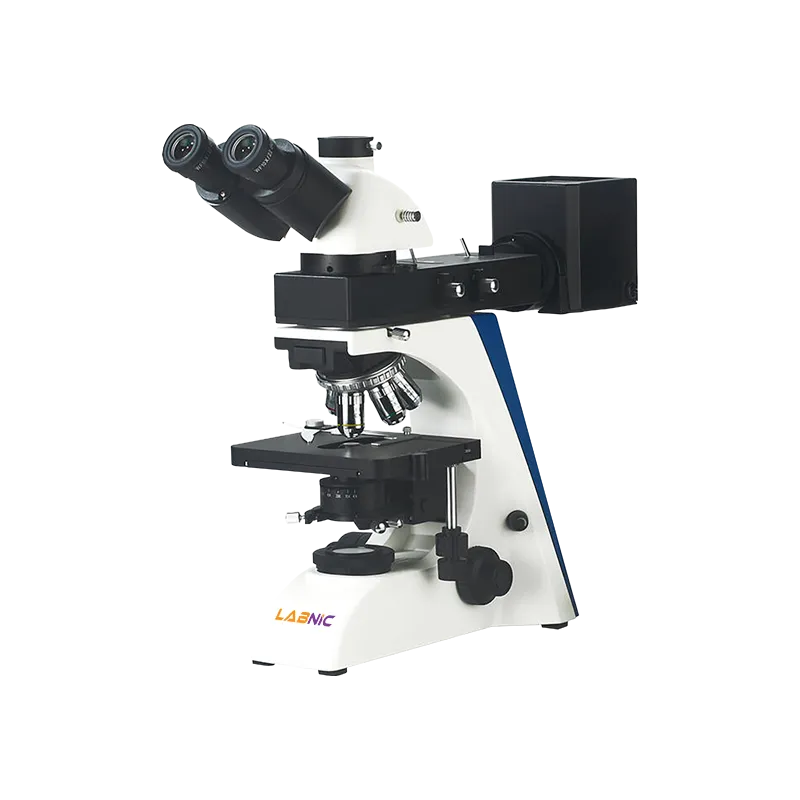

Metallurgical Microscope LBN-MO122 has an infinity semi-plan optical system and a Siedentopf trinocular head with a 30° inclination. It comprises of a LWD objective, a double-layered mechanical working stage, and a quintuple inward-rotating nosepiece. When employed as a light source, LEDs have both transmitting and reflecting qualities.
| Optical System | Infinity Semi-Plan |
| Standard Magnification | 50x – 500x |
| Head Type | Siedentopf Trinocular |
| Inclination | 30° |
| Rotation | 360° |
| Interpupillary | 48-76 mm |
| Eyepiece | WF10x/22mm, 1 pc, WF10x/22mm, with micrometer X-0.1mm ´ 180 Div./ Y-single line, 1 pc |
| Eyepiece Diameter | 30.0mm |
| Nosepiece | Inward, 5 holes |
| Objective | Metallurgical LWD Infinity Plan Semi- APO 5x, 10x, 20x, 50x |
| Working Stage Type | 2 Layer Mechanical |
| Stage Size | 182 × 140 mm |
| Moving Size | 77 × 52 mm |
| Focusing Range | 25 mm |
| Scale | 0.002 mm |
| Condenser | Abbe, 1.25 N. A |
| Light Source Type | LED |
| Transmit Light | 5W LED |
| Reflect Light | 5W LED |
| Power Supply Type | AC 110V- 240V |
| Polarizing | Polarizer + Analyzer for reflect light and transmit light |
| Dimensions (L × D × H) | 515 × 470 × 430 mm |
| Net Weight | 13 Kg |
| Gross Weight | 14 Kg |
It consists of Siedentopf trinocular head type
Infinity semi-plan optical system, LWD
WF10x/22mm wide field eyepiece
Quintuple inward revolving nosepiece
Double layer mechanical working stage
Coaxial coarse and fine focusing type
Abbe 1.25 N. A condenser with iris diaphragm
LED as light source, Kohler transmit and reflect
Ground Glass slider
Blue Filter Switch Handle
Metallurgical microscopes have applications in the fields of alloy and metal engineering and the mineral industry. They are used for the inspection of thin metal plates, electric circuits, opaque metals, and minerals.
