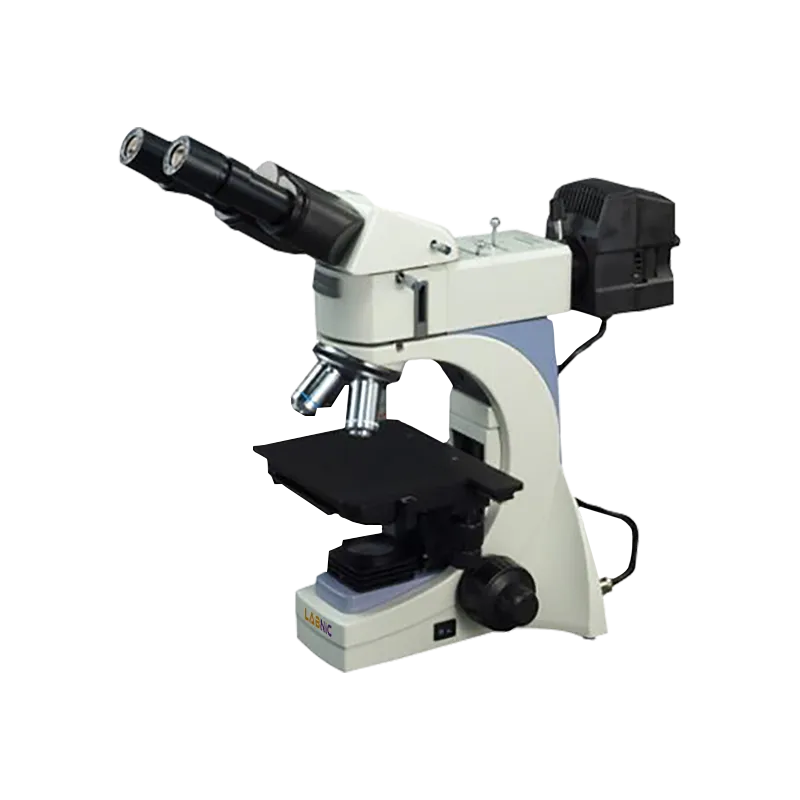

Metallurgical Microscope LBN-MO121 has an infinity plan optical system with a magnification range of 40x-400x and a Siedentopf binocular head with a 30° inclination. It consists of a quadruple outward revolving nosepiece, a LWD coverless objective, and a double-layered mechanical working stage. Halogen is used as a source of light with transmitting and reflecting features.
| Optical System | Infinity Plan |
| Standard Magnification | 40x – 400x |
| Head Type | Siedentopf Binocular |
| Inclination | 30° |
| Rotation | 360° |
| Interpupillary | 48-75 mm |
| Eyepiece | WF10x/18mm, 2 pc |
| Eyepiece Diameter | 23.2 mm |
| Nosepiece | Outward, 4 holes |
| Objective | Infinity Plan Achromatic objective 4x/0.1//- WD17.3mm, infinity Plan Achromatic objective 10x/0.25//- WD 10.0mm, infinity plan achromatic objective 40x/0.60//0 WD 2.9 mm |
| Working Stage Type | 2 Layer Mechanical |
| Stage Size | 150 × 140 mm |
| Moving Size | 75 × 50 mm |
| Focusing Range | 24 mm |
| Scale | 0.002 mm |
| Condenser | Abbe Swing out, 1.25 N. A, Swing out NA 0.9/0.25 with iris diaphragm and filter |
| Light Source Type | Halogen |
| Transmit Light | 6V20W Halogen, brightness adjustable |
| Reflect Light | 6V/20W Halogen, Kohler illumination, Epi-illuminator with Iris Aperture Diaphragm and iris field diaphragm, brightness adjustable |
| Power Supply Type | AC 110V- 240V |
| Polarizing | Polarizer, Analyzer Optional |
| Dimensions (L × D × H) | 360 × 260 × 620 mm |
| Gross Weight | 12 Kg |
It is safe, reliable, and easy to use
It consists of Siedentopf binocular head type
Infinity plan optical system, LWD coverless
WF10x/18mm wide field eyepiece
Quadruple outward revolving nosepiece
Double layer mechanical working stage
Coaxial coarse and fine focusing type
Halogen as light source, Kohler transmit and reflect
Metallurgical Microscopes have applications in the fields of alloy and metal engineering and the mineral industry. They are used for the inspection of thin metal plates, electric circuits, opaque metals, and minerals.
Download Catalog for Metallurgical Microscope LBN-MO121
Download

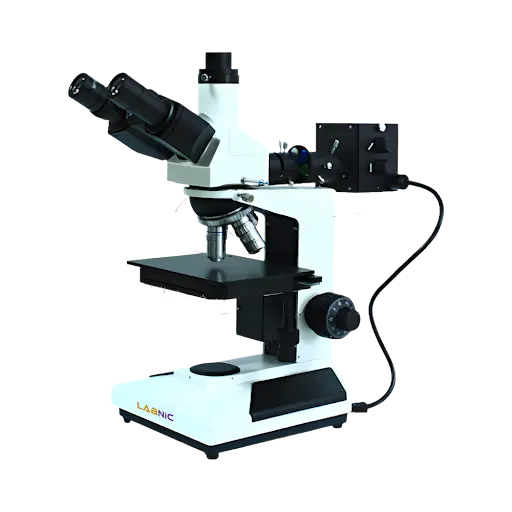

Optical System : Infinity Semi-Plan
