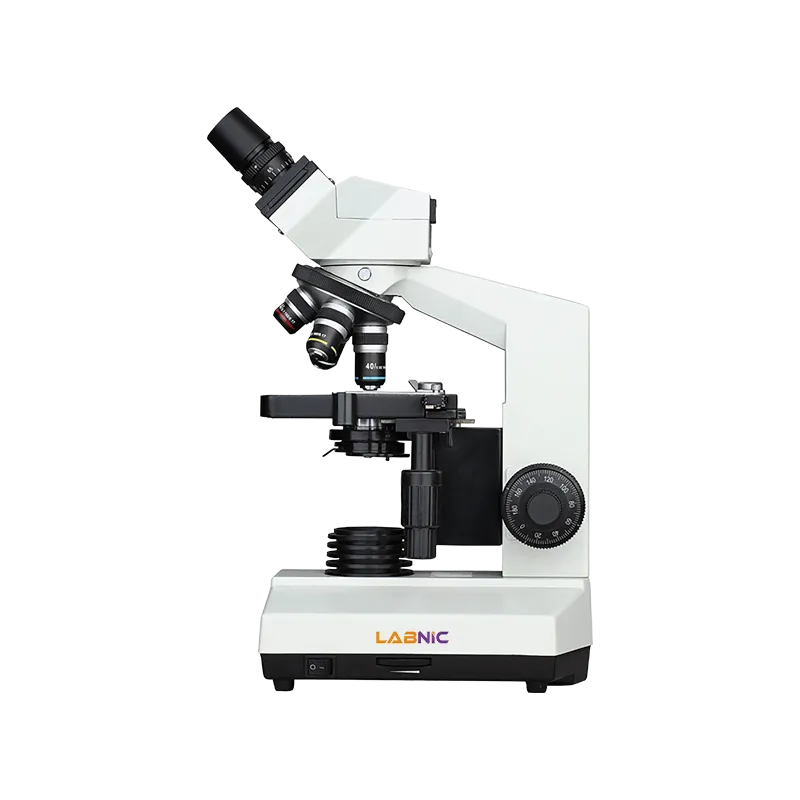

Digital Microscope LBN-DM141 has a Siedentopf binocular with a 45° inclination and 360° rotation. Features a diopter with an adjustable tube and a quadruple outward nosepiece. The microscope consists of a 1.20 N.A. Abbe + iris diaphragm condenser, and a 3-megapixel camera with USB output. The system supports Windows 7, Windows 10, and Windows 11.
| Optical System | Achromatic |
| Standard Magnification | 40x-1000x |
| Head Type | Siedentopf Binocular |
| Inclination | 45° |
| Rotation | Head Rotate 360° |
| Interpupillary | 55-75mm |
| Diopter | Both Tube Adjustable |
| Eyepiece | WF10x/18mm, 2 pcs |
| Diameter | 23.2mm |
| Nosepiece | Outward 4 Holes |
| Objective | Achromatic |
| Magnification | 4x, 10x, 40x (s), 100x (o, s) |
| Stage | 2 Layer Mechanical |
| Size | 140 × 140mm |
| Moving | 75 × 50mm |
| Focus Range | 28mm |
| Scale | 0.002mm |
| Condenser | Abbe N. A |
| Light Source Type | Halogen |
| Transmit Light | 6V20W Halogen |
| Video Adapter | C-Mount 0.3x |
| Camera Output | USB |
| System Support | Win10 |
| Power Supply Type | AC 110/220V |
| Dimensions (L × D × H) | 370 × 290 × 470 mm |
| Weight | 13 Kg |
It consists of an achromatic optical system
Quadruple outward nosepiece
Siedentopf binocular head type with 45°
Mechanical layer working stage with double slide holder
Coaxial coarse and fine focusing type with safety stop lock ring and tension adjustable
Halogens are used as light sources
A 3-megapixel camera is used, USB as output
Abbe condenser of 1.20 aperture
Both diopters are adjustable
Digital Microscope is used for analyzing samples of blood cells and tissues culture in the fields of medical research institutes, biological laboratories, metallurgy, health clinics, etc.
