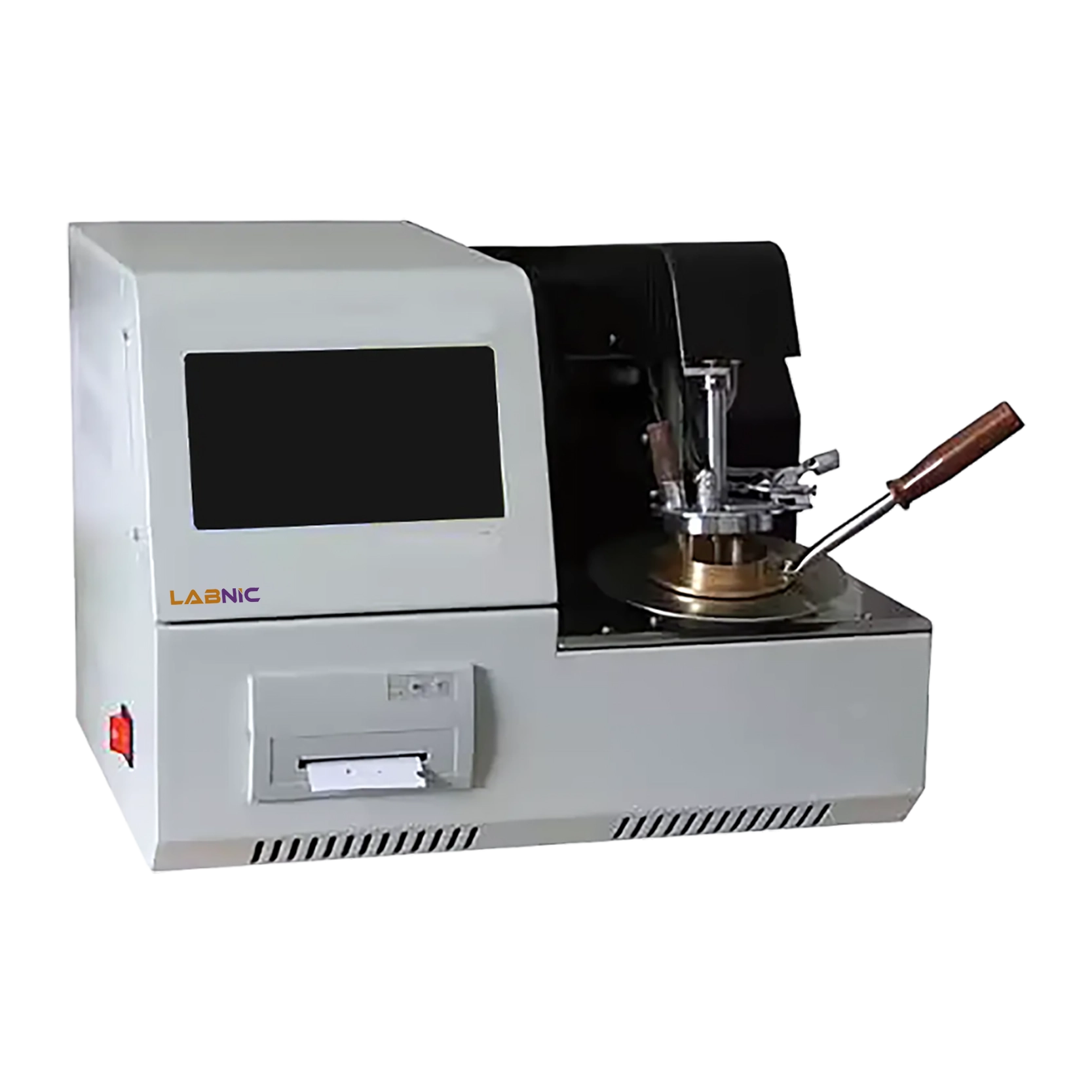

Automatic PMCC Flash Point Tester LBN-FP131

Automatic PMCC Flash Point Tester LBN-FP131

Automatic PMCC Flash Point Tester LBN-FP131 determines flashpoint of flammable liquids. Electric ignition with gas flame of diameter 3.2 mm to 4.8 mm. Detects the differential coefficient and automatically fixes errors in the system. User-friendly design to perform flash point tests efficiently.

Flash point
Range Ambient to 300 ℃.
Repeatability ≤ 2 ℃
Reproducibility ≤ 4 ℃
Accuracy 0.1 ℃
Ignition mode
Source Gas
Type Electric
Gas flame diameter 3.2 mm to 4.8 mm
Heating rate For Procedure A: 5 to 6 ℃/min For Procedure B: 1 to 1.6 ℃/min Automatic control and manually adjustable
Stirring rate For Procedure A: 90 to 120 rpm, For Procedure B: 250 ± 10 rpm Automatic control and manually adjustable
Ambient temperature ≤ 40 ℃
Relative humidity ≤ 80 %
Maximum power consumption 500 W
Power supply AC 220 ± 10% V, 50 Hz

Function curves are displayed using simulation tracking

Force air chilling device to quickly cool the sample

Electric igniting gun to light the samples

Test arm raises and lowers automatically

Responds to test date, test time, and other parameters promptly

Automatically detects differential coefficient

Conveniently opens lid and detects flash point

Calibrates the effect of atmospheric pressure to test

Oil cup


Printing paper
Igniter

Automatic PMCC flash point testers are widely used in quality control laboratories, petrochemical industries, and research institutions.

Download Catalog for Automatic PMCC Flash Point Tester LBN-FP131

Download

Labnic Distillation Tester provides accurate analysis of boiling range of petroleum products. They are equipped with advanced temperature control systems for precise results. Their fire extinguishing system includes a manual operation override for safety. They feature compact design that allows seamless integration into laboratory and refinery environments. Our automatic Distillation Tester offers quality control and regulatory compliance in the petroleum, chemical and pharmaceutical industries.

Automatic Distillation Tester LBN-AD141

Automatic Distillation Tester LBN-AD141

Temperature Range : 0 - 400℃

Temperature Accuracy : ±0.1℃

Volume : 0 – 100 ml

Accuracy of Volume : <0.1 ml

Labnic Vapor Pressure Tester is an automatic device designed for accurate and reliable performance. They measure the vapor pressure of volatile petroleum products with high precision. Their advanced heating technology enhances safety during testing. They are equipped with user-friendly interface that ensures effortless operation and consistent results. Our Vapor Pressure Tester is well-suited for fuel analysis, chemical testing, and environmental monitoring.

Automatic Vapor Pressure Tester LBN-VP121
Automatic Vapor Pressure Tester LBN-VP121

Pressure range : 0 to 200 kPa or 0 to 29 psi

Ambient temperature : 5 to 35 ℃

Temperature control accuracy : ± 0.1 ℃

Relative humidity : ≤ 85%
