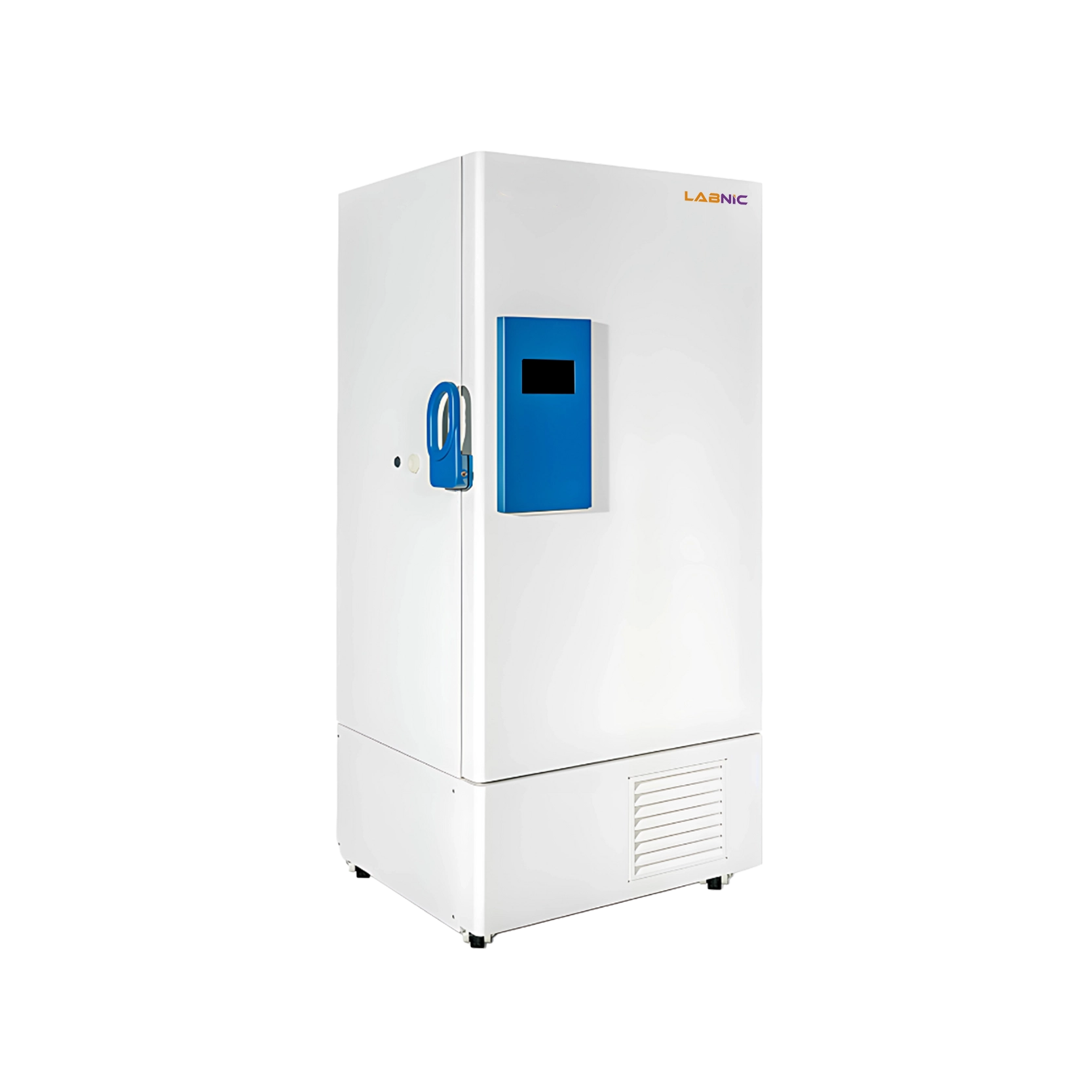

-86℃ ULT Upright Freezer LBN-UF163 provides secure environment for preserving biological samples with a spacious 480L capacity. Integrated cascade refrigeration technology ensures stable and uniform cooling performance. Equipped with a user-friendly digital display, it allows precise temperature control from -40℃ to -86℃. Built-in double inner doors and high-density insulation reduce energy consumption and cold air loss. Our -86℃ ULT Upright Freezer is perfect for medical, pharmaceutical and research applications.
$ 6,138.00
| Cabinet Type | Upright |
| Capacity | 480 L |
| Temperature Range | -40℃ to -86℃ |
| Cooling Performance | -80℃ |
| Cooling Type | Direct Cooling |
| Defrost Mode | Manual |
| Display | 7” Touch Screen with USB Port |
| Insulation Material | PUF + VIP |
| Exterior Material | Galvanized Steel Powder Coating |
| Interior Material | Galvanized Steel Powder Coating |
| Thickness of Cabinet Foamed Layer | 90 mm |
| Thickness of Door | 90 mm |

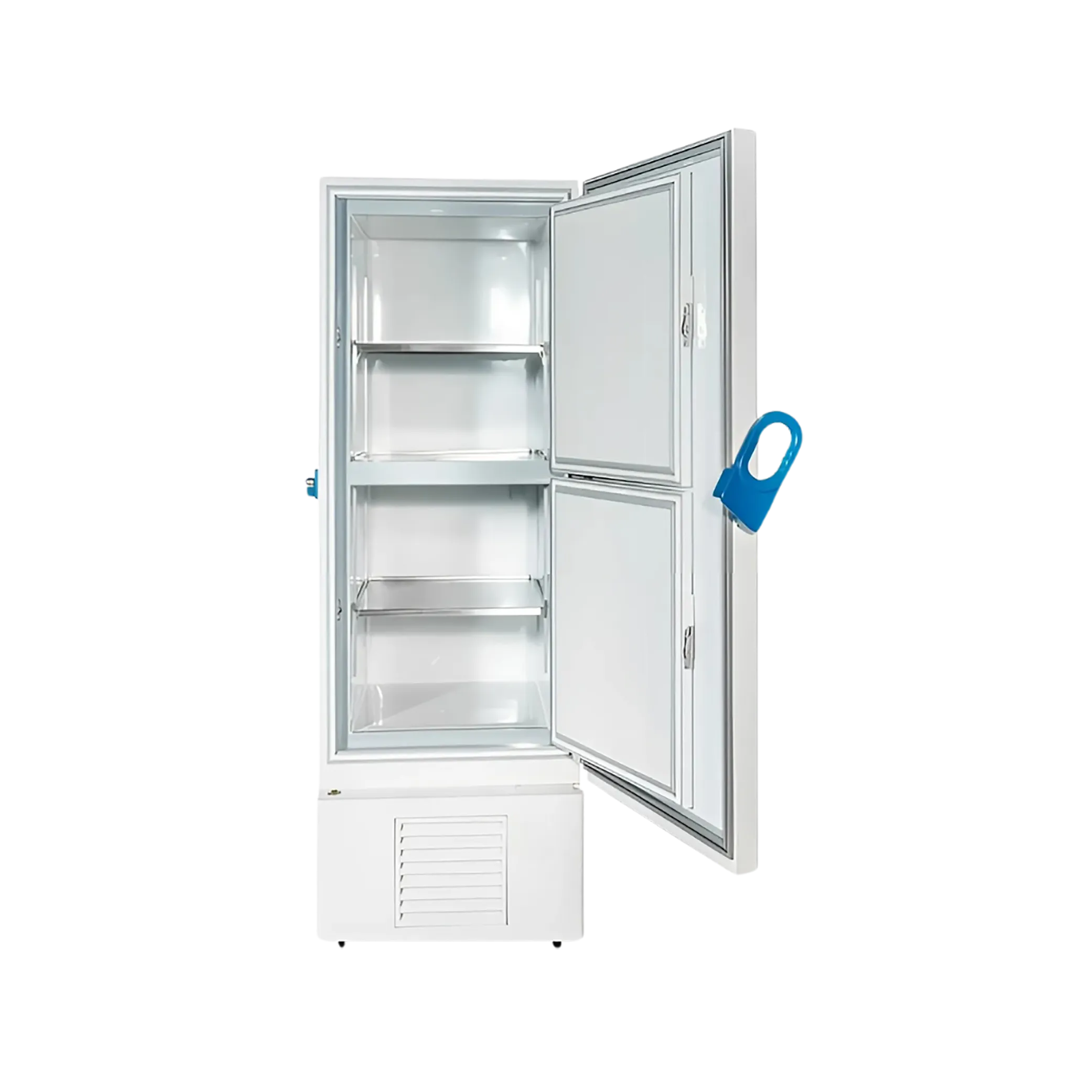

| Inner Door Number | 2 |
| Capacity of 2 Inch Boxes | 320 |
| Refrigerant | HC Mixed |
| Climate Class | N |
| Low / High Temperature Alarm | Yes |
| Condenser High Temperature Alarm | Yes |
| Power Failure Alarm | Yes |
| Sensor Failure Alarm | Yes |
| High Room Temperature Alarm | Yes |
| Alarm Mode | Sound and Light Alarm |
| Rated Voltage | 220V / 50Hz |
| Power Supply | 220V / 50 Hz |
| Power Consumption | 920 W |
| Energy Consumption | 13.5 KW.H / 24H |
| Interior Dimensions | 600 × 600 × 1310 mm |
| Exterior Dimensions | 855 × 855 × 1980 mm |
| Net Weight | 252 kg |
| Gross Weight | 283 kg |
Temperature Recorder
Racks & Boxes
Caster
Test Hole
Shelves (Stainless Steel) -3
Door Locking Device
Handle
Pressure Balance Hole
-86℃ ULT Upright Freezer LBN-UF163 are perfect for long-term storage of biological samples in medical, pharmaceutical, and research facilities, including blood banks, hospitals, laboratories, and epidemic prevention centers.
-86℃ ULT Upright Freezer LBN-UF163 are perfect for long-term storage of biological samples in medical, pharmaceutical, and research facilities, including blood banks, hospitals, laboratories, and epidemic prevention centers.
Most Frequently Asked Questions
1. What is the main application of the -86°C ULT upright freezer?
Ans. This freezer is engineered for the long-term preservation of biological materials such as viruses, proteins, DNA/RNA, cell cultures, and vaccines that require ultra-low temperatures for stability and integrity.
2. Is the -86°C freezer energy efficient?
Ans. Modern units use efficient compressors and insulated chambers to reduce energy consumption while maintaining stable temperatures, supporting sustainability and cost control in laboratory operations.
3. What kind of alert system does -86°C ULT upright freezer include?
Ans. An audio-visual alarm system is built in to provide quick alerts for temperature deviations, power failures, or door-open events. This ensures rapid response to protect valuable samples.
4. How easy is it to operate -86°C ULT upright freezer?
Ans. It features an accessible control panel that simplifies operation. Users can easily monitor and adjust temperature settings, check system status, and respond to alarms directly from the interface.
5. Can the interior be customized for different sample types?
Ans. Yes, the freezer includes adjustable shelves, providing the flexibility to store a wide range of materials in different-sized containers. This makes it adaptable to diverse storage needs.
-86℃ ULT Upright Freezer LBN-UF163 provides secure environment for preserving biological samples with a spacious 480L capacity. Integrated cascade refrigeration technology ensures stable and uniform cooling performance. Equipped with a user-friendly digital display, it allows precise temperature control from -40℃ to -86℃. Built-in double inner doors and high-density insulation reduce energy consumption and cold air loss. Our -86℃ ULT Upright Freezer is perfect for medical, pharmaceutical and research applications.
