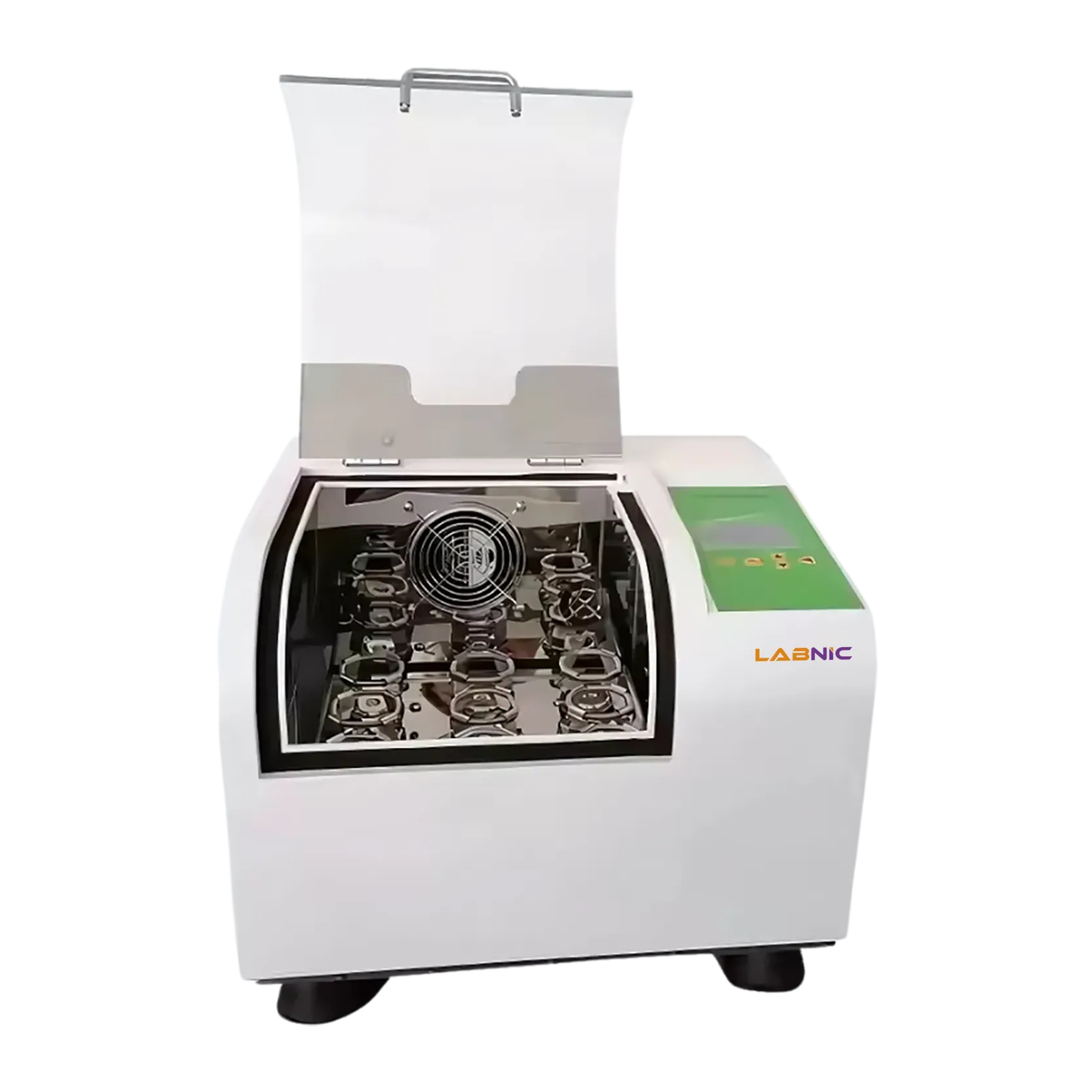

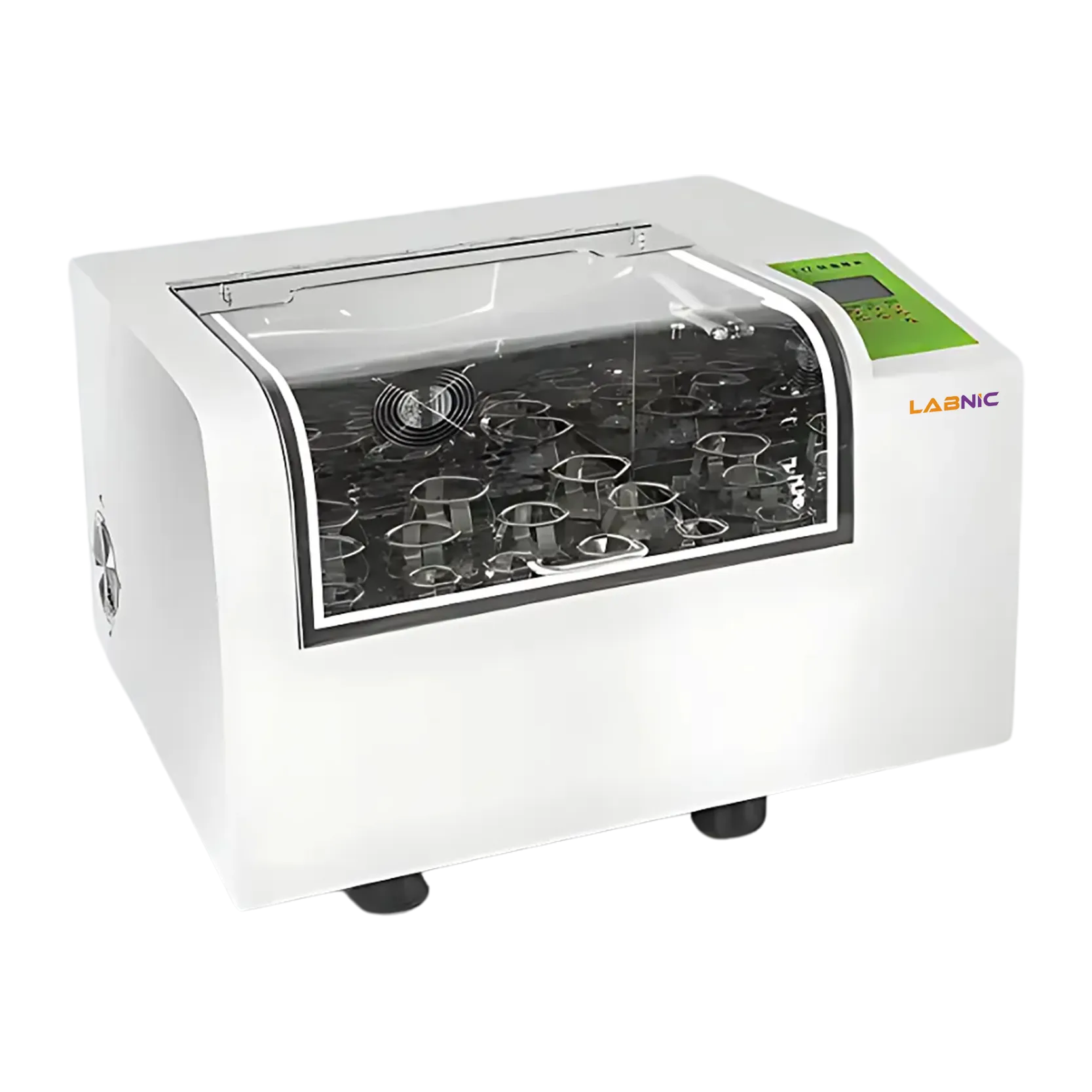

Bench Top Shaker Incubator LBN-SI143 is an efficient equipment that uses a low workspace, working at a refrigerated temperature of 4 to 60 °C within a time range of 1 to 9999 minutes. Integrated with shaker works at speed of 20 to 300 rpm. It not only works as an incubator but is also used in the mixing of cultures and solubility studies producing an incubation environment at controlled temperature
| Operating Temperature | 4 to 60 ℃ (Refrigeration type) |
| Temperature Control Precision | ±0.1 ℃ |
| Rotation Frequency | 20 to 300 rpm |
| Amplitude | Φ26 mm |
| Maximum Capacity | 100 ml×20 or 250 ml×16 or 500 ml×12 |
| Standard Configuration | 50 ml×5, 100 ml×5, 250 ml×4, 500 ml×3 |
| Time Range | 1 to 9999 minutes |
| Frequency Accuracy | ±1 rpm |
| Display Mode | LCD |
| Tray Number | 1 |
| Pallet Size | 450×410 mm |
| Power | 580 W |
| Voltage | AC 220 to 240 V, 50 to 60 Hz |
| Dimension (W×D×H) | 480×450×320 mm |
| Packing Dimension W×D×H | 920×800×610 mm |
| Net Weight | 100 kg |
| Gross Weight | 125 kg |
Integrated with shaker eliminating the need of placing a separate shaker saving the space
Equipped with a single stainless-steel tray which can hold differential capacities of samples
Designed with large LCD screen and control panel for controlling and monitoring the parameters producing reliable results
Having a compact design, it can easily fit into compact laboratory spaces
It not only works as an incubator but is also used for separating the samples
Bench Top Shaker Incubators are often used for cell culturing, cell aeration, and solubility studies mainly in the field of biology and chemistry
Download Catalog for Bench Top Shaker Incubator LBN-SI143
