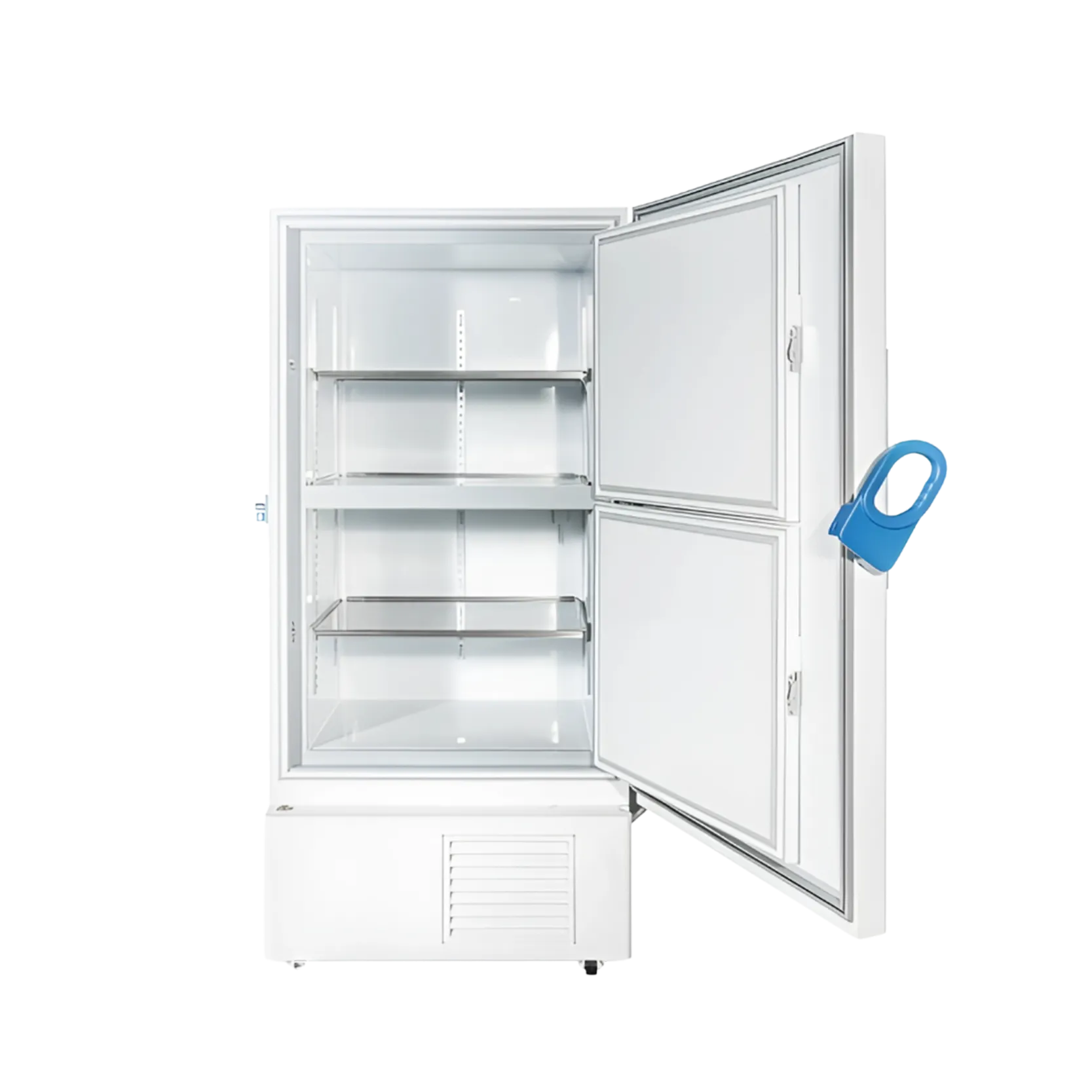

-86℃ ULT Upright Freezer LBN-UF166 delivers reliable storage with an expansive 1018L capacity for temperature sensitive biological samples. Integrated microprocessor control ensures precise temperature adjustments from -40℃ to -86℃. Equipped with an intuitive digital display, it enables real-time monitoring and easy operation. Built-in double inner doors minimize cold air loss, maintaining stable internal conditions. Our -86℃ ULT Upright Freezer is ideal for medical, pharmaceutical, and research applications.
| Cabinet Type | Upright |
| Capacity | 1018 L |
| Temperature Range | -40℃ to -86℃ |
| Cooling Performance | -80℃ |
| Cooling Type | Direct Cooling |
| Defrost Mode | Manual |
| Display | 7” Touch Screen with USB Port |
| Insulation Material | PUF + VIP |
| Exterior Material | Galvanized Steel Powder Coating |
| Interior Material | Galvanized Steel Powder Coating |
| Thickness of Cabinet Foamed Layer | 90 mm |
| Thickness of Door | 90 mm |
| Inner Door Number | 2 |
| Capacity of 2 Inch Boxes | 720 |
| Refrigerant | R290 / R170 |
| Climate Class | N |
| Low / High Temperature Alarm | Yes |
| Condenser High Temperature Alarm | Yes |
| Power Failure Alarm | Yes |
| Sensor Failure Alarm | Yes |
| High Room Temperature Alarm | Yes |
| Alarm Mode | Sound and Light Alarm |
| Rated Voltage | 220V / 50Hz |
| Power Supply | 220V / 50 Hz |
| Power Consumption | 1100 W |
| Energy Consumption | 15 KW.H / 24H |
| Interior Dimensions | 880 × 860 × 1310 mm |
| Exterior Dimensions | 1135 × 1115 × 1980 mm |
| Net Weight | 356 kg |
| Gross Weight | 401 kg |
Temperature Recorder
Racks & Boxes
Caster
Test Hole
Shelves (Stainless Steel) -3
Door Locking Device
Handle
Pressure Balance Hole
-86℃ ULT Upright Freezer LBN-UF166 are designed for long-term storage of biological samples, making them ideal for blood banks, hospitals, research institutes, pharmaceutical industries, and biotechnology laboratories.
-86℃ ULT Upright Freezer LBN-UF166 are designed for long-term storage of biological samples, making them ideal for blood banks, hospitals, research institutes, pharmaceutical industries, and biotechnology laboratories.
Most Frequently Asked Questions
1. What is the main application of the -86°C ULT upright freezer?
Ans. This freezer is engineered for the long-term preservation of biological materials such as viruses, proteins, DNA/RNA, cell cultures, and vaccines that require ultra-low temperatures for stability and integrity.
2. Is the -86°C freezer energy efficient?
Ans. Modern units use efficient compressors and insulated chambers to reduce energy consumption while maintaining stable temperatures, supporting sustainability and cost control in laboratory operations.
3. What kind of alert system does -86°C ULT upright freezer include?
Ans. An audio-visual alarm system is built in to provide quick alerts for temperature deviations, power failures, or door-open events. This ensures rapid response to protect valuable samples.
4. How easy is it to operate -86°C ULT upright freezer?
Ans. It features an accessible control panel that simplifies operation. Users can easily monitor and adjust temperature settings, check system status, and respond to alarms directly from the interface.
5. Can the interior be customized for different sample types?
Ans. Yes, the freezer includes adjustable shelves, providing the flexibility to store a wide range of materials in different-sized containers. This makes it adaptable to diverse storage needs.
-86℃ ULT Upright Freezer LBN-UF166 delivers reliable storage with an expansive 1018L capacity for temperature sensitive biological samples. Integrated microprocessor control ensures precise temperature adjustments from -40℃ to -86℃. Equipped with an intuitive digital display, it enables real-time monitoring and easy operation. Built-in double inner doors minimize cold air loss, maintaining stable internal conditions. Our -86℃ ULT Upright Freezer is ideal for medical, pharmaceutical, and research applications.
