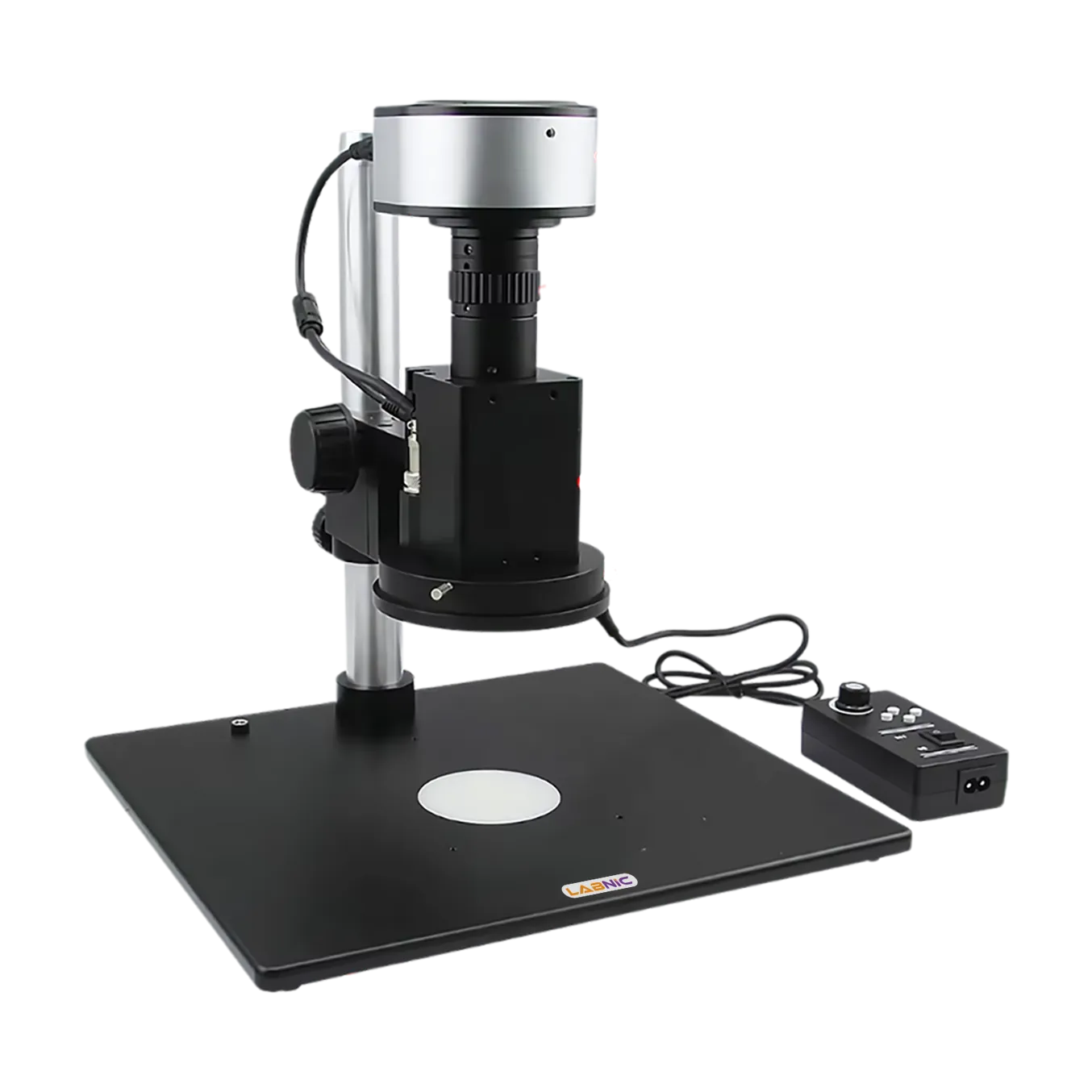

Stereo Microscope LBN-SM133 had motorized control and a magnification range of 0.3-2.5x. The microscope includes a large track stand, a coaxial coarse and fine focus range, and a bottom light. It consists of LED illumination as the light source type, with transmit and reflect as properties. A 1080-pixel camera c-mounted with a 1/2-inch sensor size is included in the microscope.
Standard Magnification | 0.3-2.5x |
Objective | Stereo |
Focusing Type | Coaxial Coarse and Fine Focus |
Light Source Features | Transmit & reflect |
Light Source Type | LED |
Transmit Light | LED |
Reflect Light | LED Light |
Power Supply Type | AC 110V-240V |
Video Adapter | C-Mount 0.3x-2.0x |
Working Distance | 86 mm |
Stereo Stand Type | Track Stand |
Stand Size | 330 × 300 mm |
Camera Pixel | 1080p |
Sensor Size | 1/2 inch |
Mounting | C-Mount |
Output | HDMI, USB Hard Disk |
Weight | 8 Kg |
Dimensions (L × D × H) | 430 × 410 × 360 mm |
It is simple, easy to use and user-friendly
Motorized control
It focuses on coarse and fine specimen
HDMI measure as camera features
HDMI and USB Hard Disk worked as camera output
LED illumination is used as light source
Stereo Microscope is widely used for the designing of SMT, BGA, and PCBs in the fields of technology, engineering institutes, surface board assembly industries, etc.
