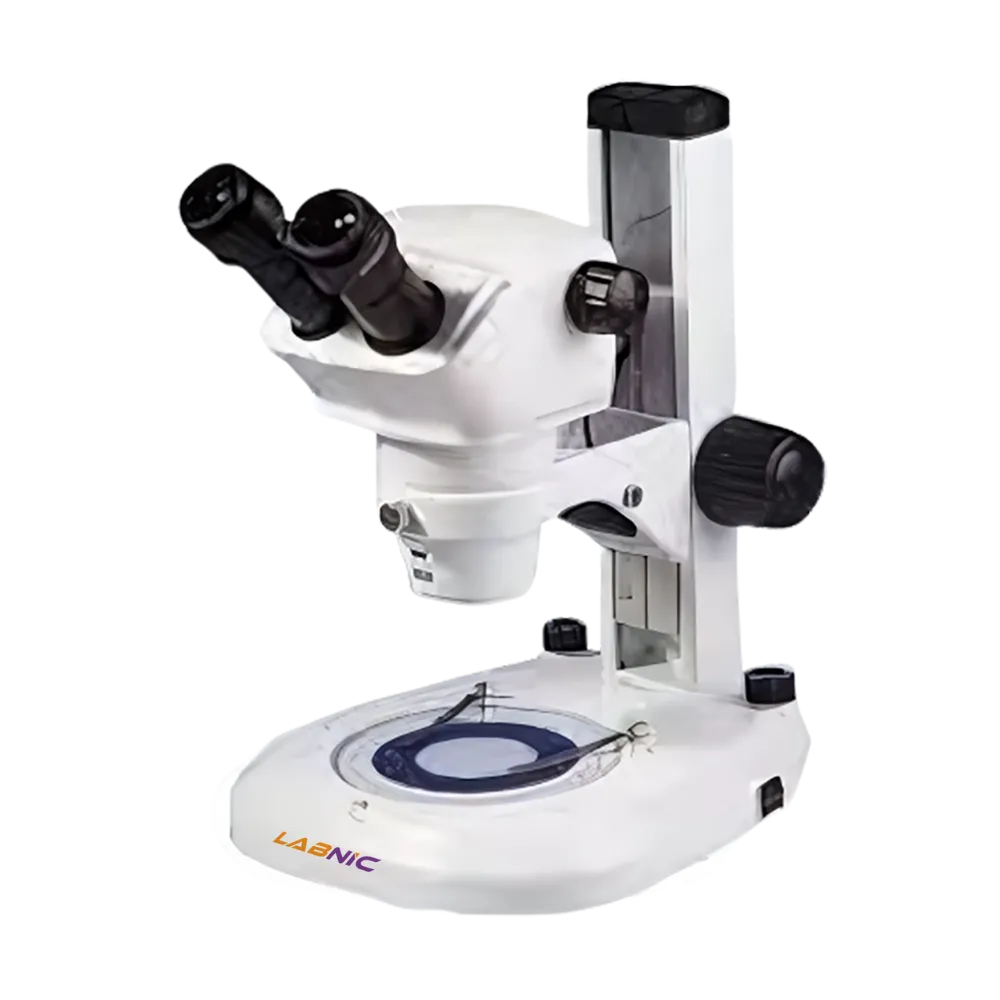

Stereo Microscope LBN-SM135 contains an achromatic objective, a Siedentopf trinocular head, and a 45° inclination. The stereo objective of the microscope has a 100 mm focusing range and can focus on both coarse and fine objects. It has a track stand design, an adjustable head diopter, and a Greenough optical system with 8x–50x magnification.
| Optical System | Greenough |
| Standard Magnification | 8x-50x |
| Head Type | Siedentopf Trinocular |
| Rotation | Head Rotate 360° |
| Interpupillary | 52-75 mm |
| Eyepiece Diameter | 30 mm |
| Eyepiece | WF10x/22mm, 2 Pcs |
| Objective | 0.8x-5.0x, stereo |
| Focusing Range | 100 mm |
| Stereo Zoom Ratio | 0.045891203703704 |
| Working Distance | 115mm, up to 45-211m |
| Stereo Stand Type | Track Stand |
| Stereo Stand | Big Fan Track Stand, No Light |
| Weight | 8 Kg |
| Dimensions( L × D × H) | 360 × 350 × 410 mm |
It is simple, safe, reliable, and easy to operate
Siedentopf Trinocular head type
Greenough optical system
It consists of an adjustable diopter
Stereo objective type, 0.8x-5.0x
Track stand type with no light
Stereo Microscope is used for research analysis of samples, materials, and PCBs designed in the fields of engineering institutes, technologies, medical institutes, surface embedded industries, health clinics, etc.
