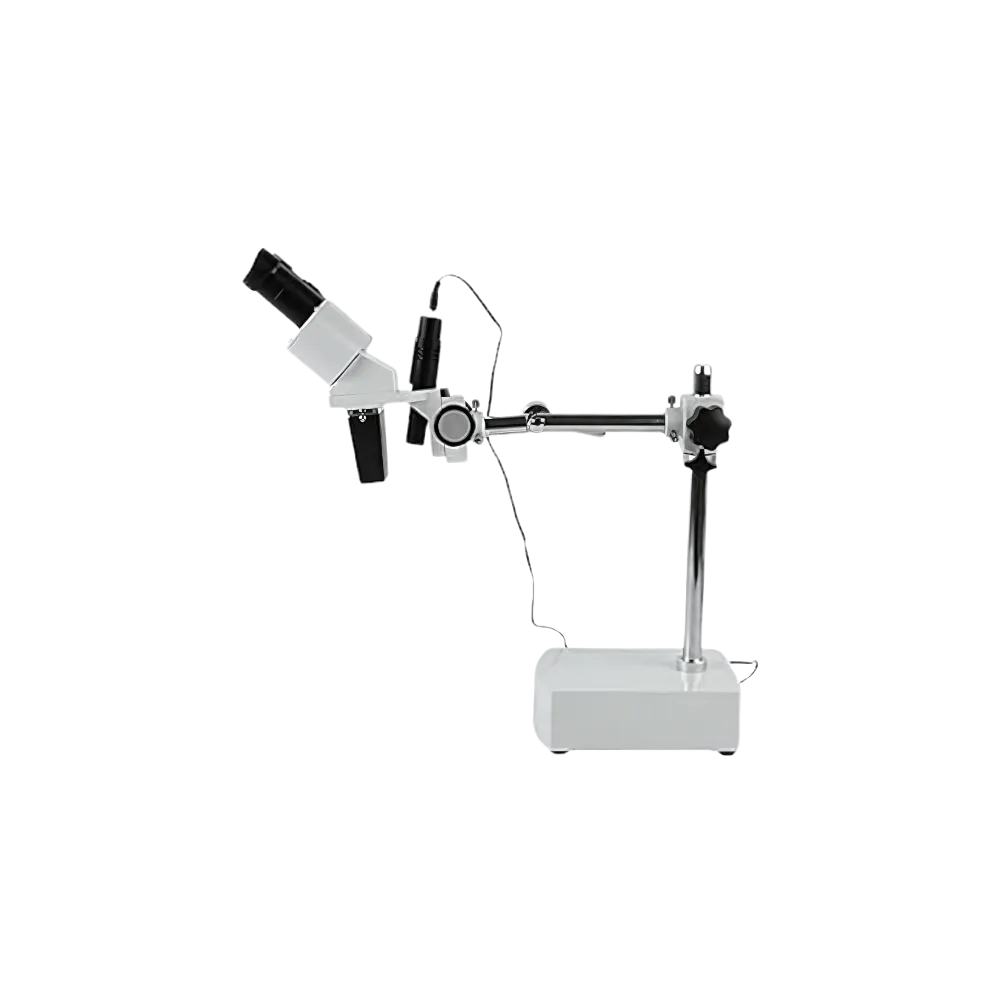

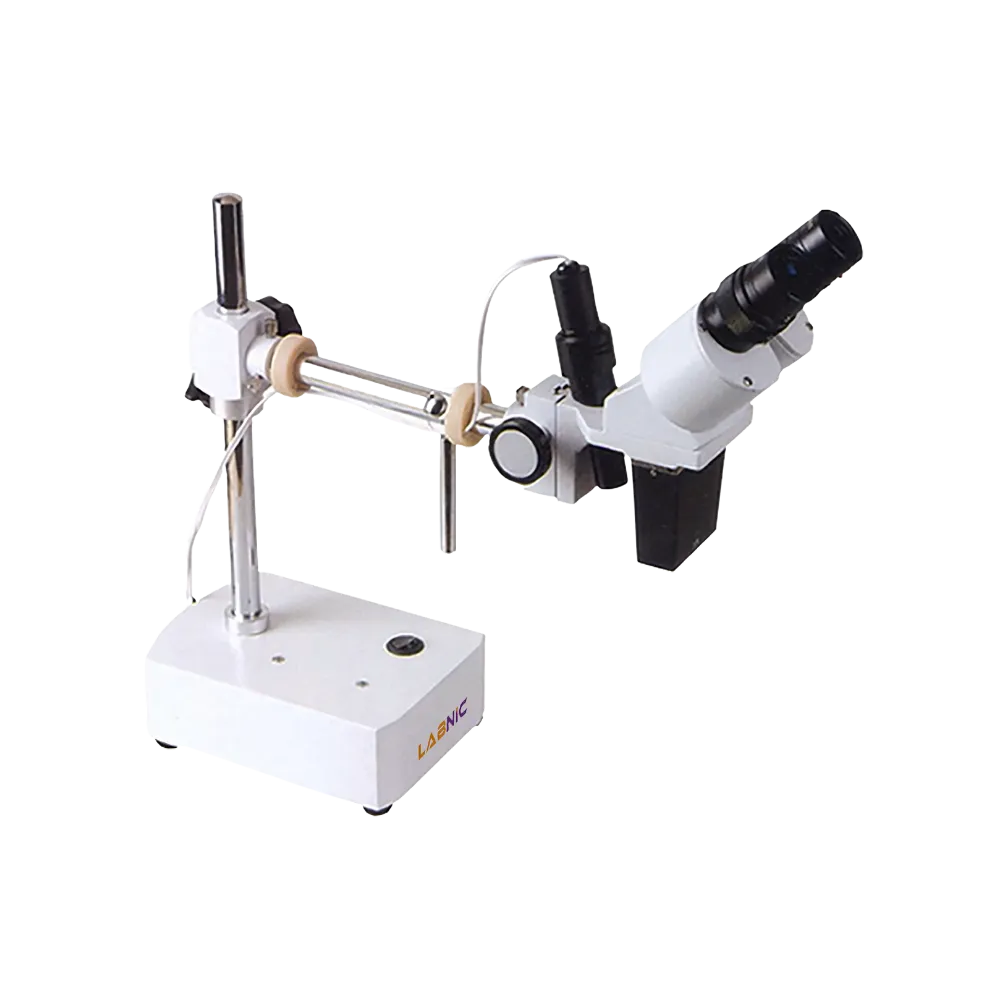

Stereo Microscope LBN-SM123 consists of a Siedentopf binocular head type with a 45-degree inclination and a WF10X eyepiece. It features a Greenough optical system and an incandescent light source. The microscope is equipped with a C-mount 0.3x video adapter and an adjustable left tube. Boom stand single arm design aids in the capture of a wide range of sample images.
| Optical System | Greenough |
| Standard Magnification | 10x |
| Head Type | Siedentopf Binocular |
| Rotation | Fixed |
| Interpupillary | 55-75mm |
| Diopter | Left Tube Adjustable |
| Eyepiece | WF10x, 2 Pcs |
| Eyepiece Diameter | 30 mm |
| Objective | 1.0x |
| Focusing Type | Coarse Focus only |
| Light Source Type | Incandescent |
| Reflect Light | 12V10W or 6V6W |
| Power Supply | AC110V |
| Working Distance | 230 mm |
| Video Adapter | C-mount 0.3x |
| Stereo Stand Type | Boom Stand Single Arm |
| Weight | 7 Kg |
| Dimensions (L × D × H) | 410 × 230 × 400 mm |
Stereo Microscope is used for the research analysis of samples and materials in the fields of metallurgy, zoology, biological research institutes, medical institutes, health clinics, laboratories, etc.
Stereo Microscope is used for the research analysis of samples and materials in the fields of metallurgy, zoology, biological research institutes, medical institutes, health clinics, laboratories, etc.
Most Frequently Asked Questions
1. What are Stereo Microscopes used for?
Ans. Stereo Microscopes are used to observe the surface structure of specimens in three dimensional view for detailed visual inspection.
2. What optical system is used in Stereo Microscopes?
Ans. Stereo Microscopes use a Greenough optical system to provide clear, accurate, and high quality 3D images.
3. How do Stereo Microscopes support flexible sample observation?
Ans. Stereo Microscopes offer adjustable magnification settings to accommodate different sample sizes and inspection requirements.
4. How are Stereo Microscopes designed for user comfort?
Ans. Stereo Microscopes feature ergonomic designs that allow comfortable operation during extended observation sessions.
5. What types of samples can be examined using Stereo Microscopes?
Ans. Stereo Microscopes are suitable for examining blood samples, tissue cultures, and material surfaces.
6. Where are Stereo Microscopes commonly used?
Ans. Stereo Microscopes are commonly used in laboratories, metallurgy facilities, and research environments requiring surface inspection.
Stereo Microscope LBN-SM123 consists of a Siedentopf binocular head type with a 45-degree inclination and a WF10X eyepiece. It features a Greenough optical system and an incandescent light source. The microscope is equipped with a C-mount 0.3x video adapter and an adjustable left tube. Boom stand single arm design aids in the capture of a wide range of sample images.
