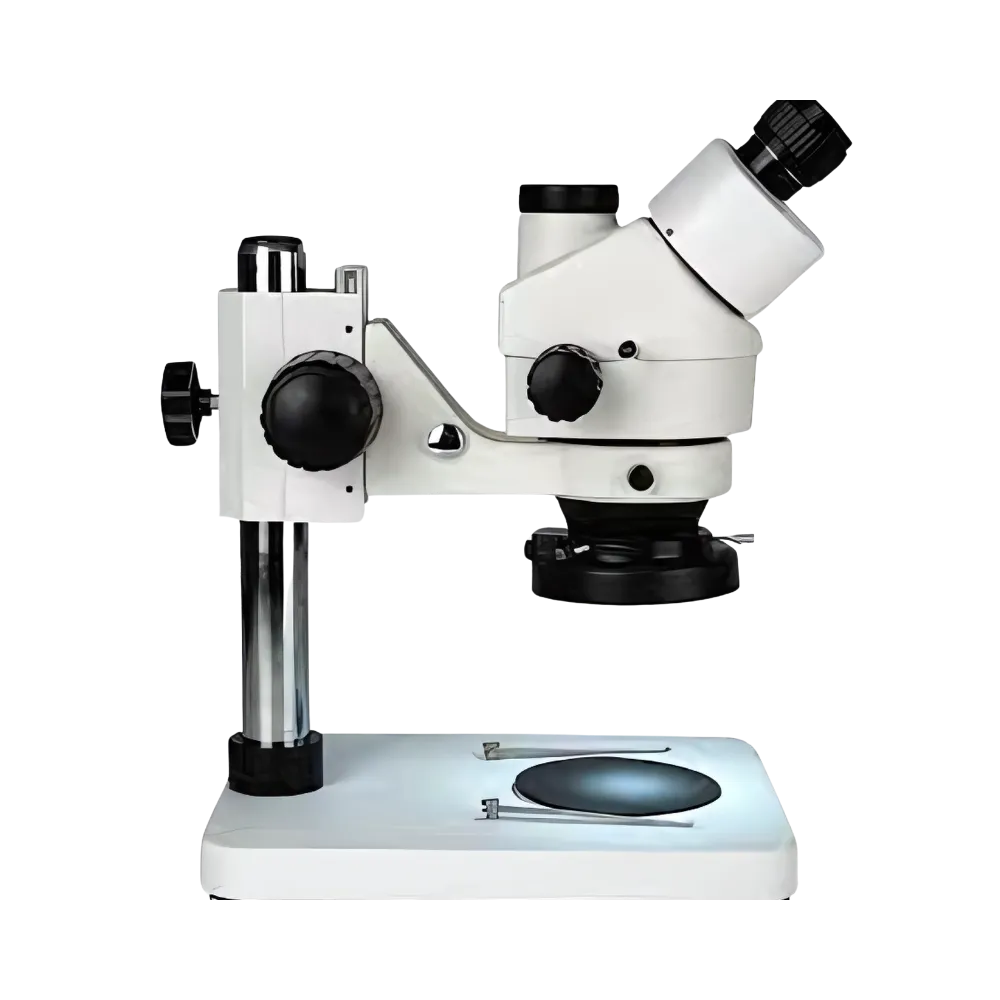

Stereo Microscope LBN-SM126 has a Siedentopf Binocular head type with a 54–75mm interpupillary, a 45° tilt, and 360° rotation. It has a stereo objective type with a 2x/4x magnification and an adjustable tube head diopter. With 50 mm focusing range, it focuses on the coarse specimen only.
| Standard Magnification | 20x/40x |
| Head Type | Siedentopf Binocular |
| Inclination | 45° |
| Rotation | Head Rotate 360° |
| Interpupillary | 54-75 mm |
| Diopter | Both Tube Adjustable |
| Objective Type | Stereo |
| Magnification | 20x/40x |
| Eyepiece | WF10x/23mm |
| Focusing Range | 50 mm |
| Working Distance | 110 mm |
| Power Supply | AC110V-240V |
| Stereo Stand Type | Pole Stand |
| Stand Height | 50 mm |
| Weight | 5.4 Kg |
| Dimensions (L × D × H) | 385 × 240 × 370 mm |
It features a Siedentopf binocular head type with a 45° inclination
WF10x/23mm (High Eyepoint) super wide field
Stereo Objective type
Adjustable head diopter, both tube
It focus on coarse specimen
Pole stand type, 50 mm
It is secure, simple, dependable, and simple to use
Stereo Microscope is used for research analysis of samples and materials in the fields of metallurgy, zoology, agriculture, scientific research institutes, medical institutes, health clinics, laboratories, etc.
Download Catalog for Stereo Microscope LBN-SM126
Download
