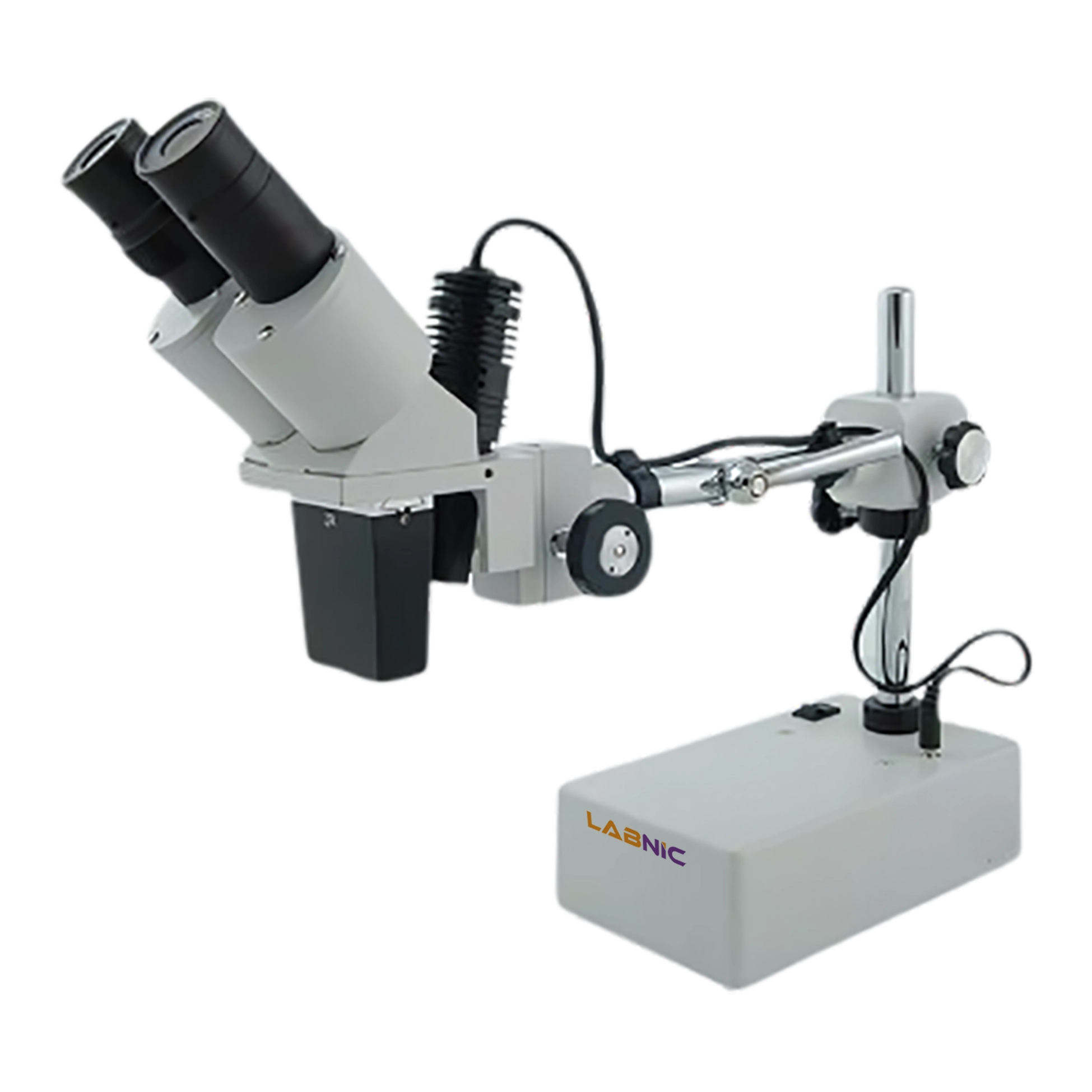

Stereo Microscope LBN-SM123 consists of a Siedentopf binocular head type with a 45-degree inclination and a WF10X eyepiece. It features a Greenough optical system and an incandescent light source. The microscope is equipped with a C-mount 0.3x video adapter and an adjustable left tube. Boom stand single arm design aids in the capture of a wide range of sample images.
| Optical System | Greenough |
| Standard Magnification | 10x |
| Head Type | Siedentopf Binocular |
| Rotation | Fixed |
| Interpupillary | 55-75mm |
| Diopter | Left Tube Adjustable |
| Eyepiece | WF10x, 2 Pcs |
| Eyepiece Diameter | 30 mm |
| Objective | 1.0x |
| Focusing Type | Coarse Focus only |
| Light Source Type | Incandescent |
| Reflect Light | 12V10W or 6V6W |
| Power Supply | AC110V |
| Working Distance | 230 mm |
| Video Adapter | C-mount 0.3x |
| Stereo Stand Type | Boom Stand Single Arm |
| Weight | 7 Kg |
| Dimensions (L × D × H) | 410 × 230 × 400 mm |
Stereo Microscope is used for the research analysis of samples and materials in the fields of metallurgy, zoology, biological research institutes, medical institutes, health clinics, laboratories, etc.
