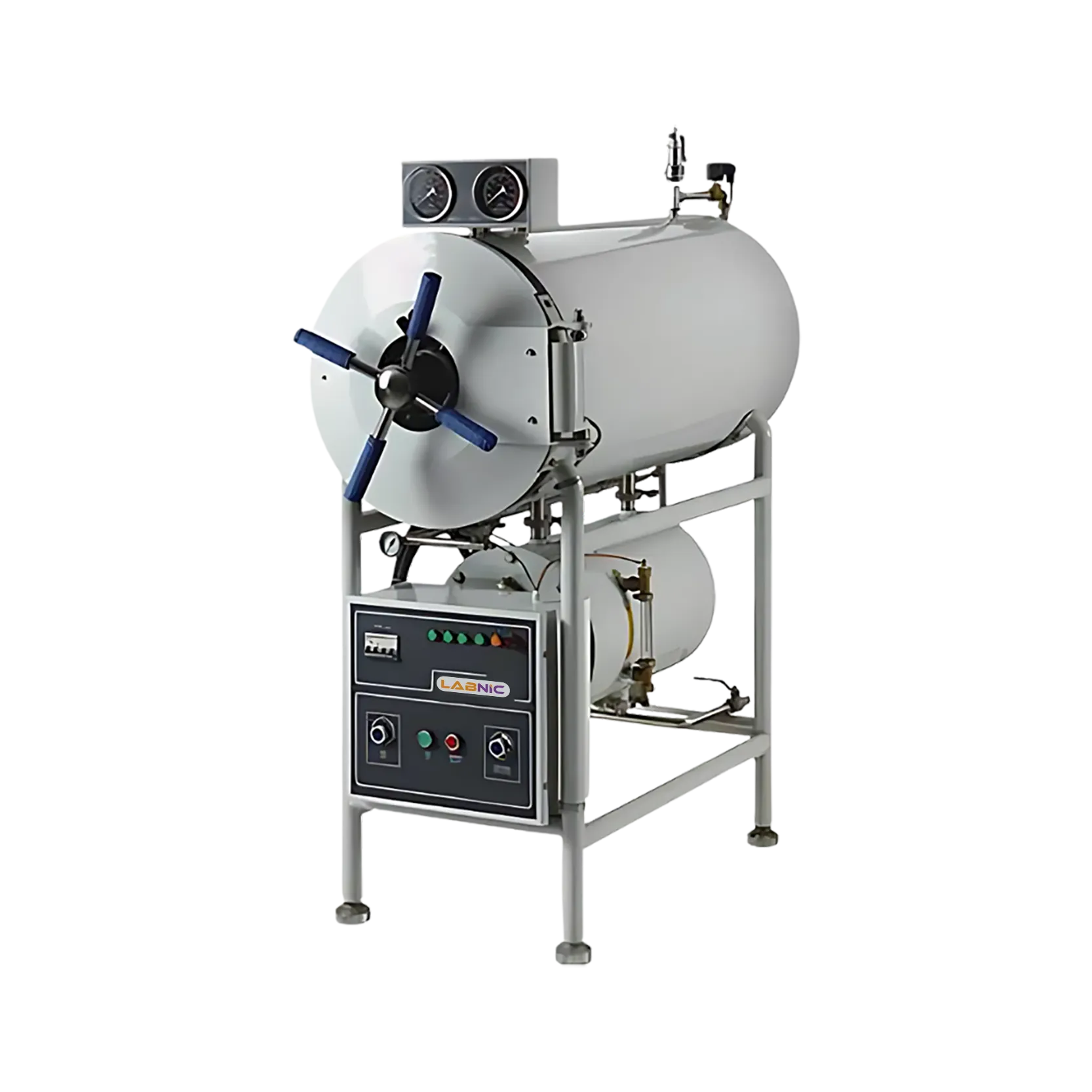

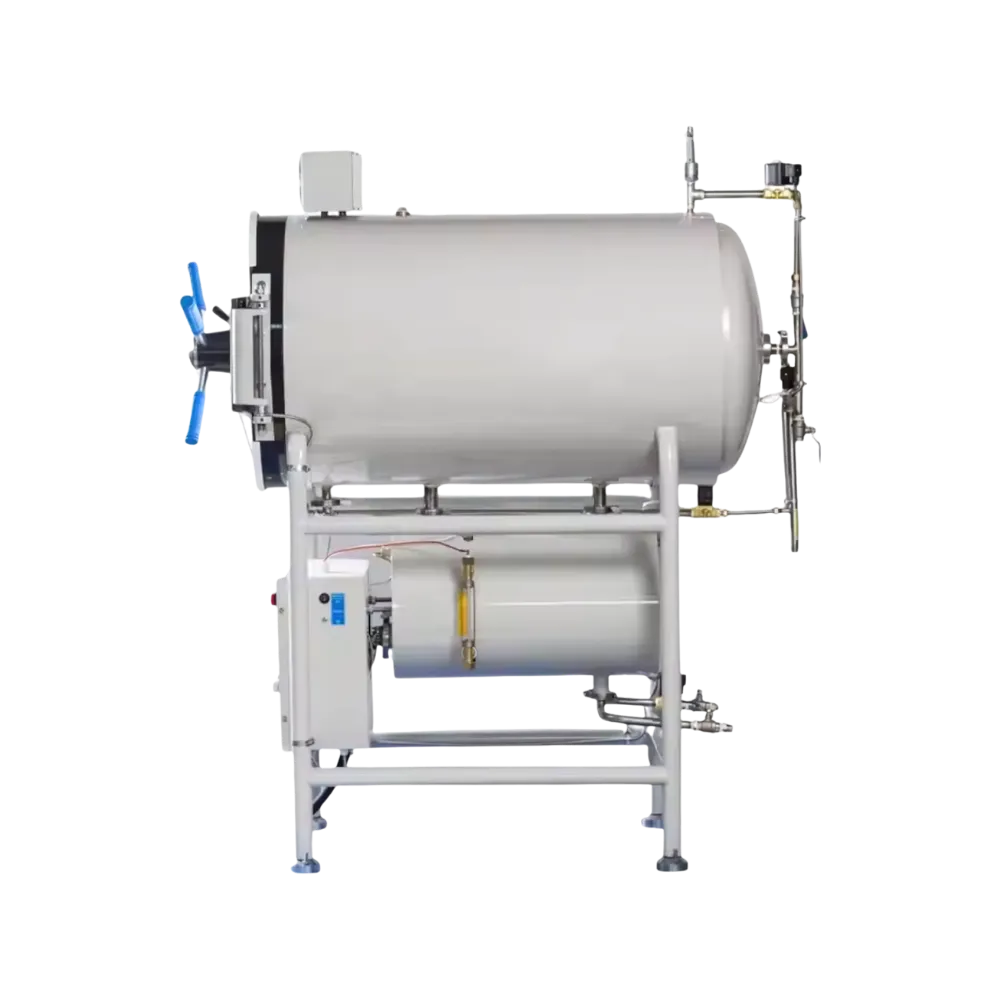

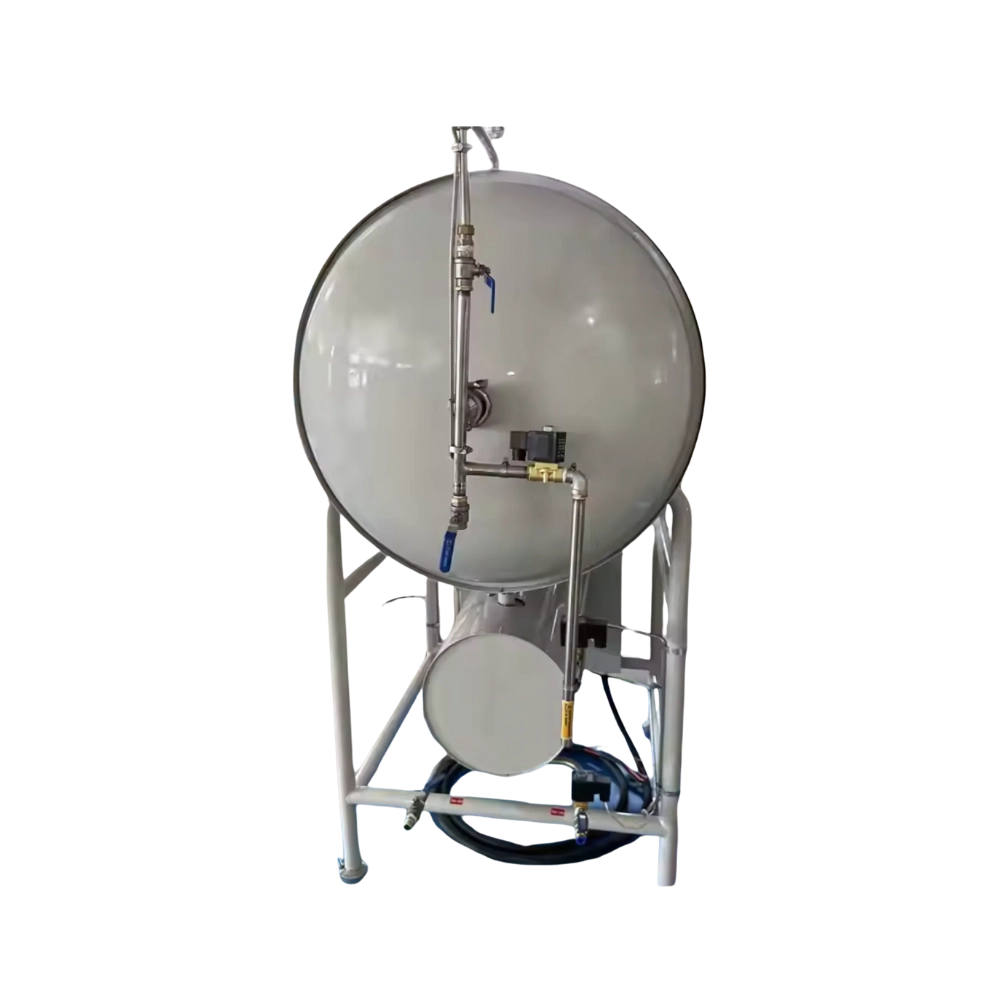

Horizontal Autoclave LBN-CH153 is a front-loading cylindrical autoclave with a 280-liter chamber capacity designed to meet large capacity sterilization needs. It is a programmable cylindrical vessel that enables automatic steam sterilization with precise cycles operating within a timer range of 0 - 60 minutes and a working temperature range of 134°C. The chamber is made of stainless steel for increased durability and reliability, and it has an auto-protect function that shuts off the power if there is insufficient water supply while the process is running.
| Sterilizing Chamber Volume | 280 L |
| Working Temperature | 134°C |
| Adjustable Temperature Range | 40° - 134°C |
| Working Pressure | 0.22MPa |
| Sterilization Time | 0 – 60 minutes |
| Drying Time | 0 – 60 minutes |
| Heat Average | ≤ ±2°C |
| Power | 12 KW |
| Power Supply | AC 380V, 50Hz |
| Chamber Dimension (ɸ×D) | 600 ×1000 mm |
| Dimension (L×W×H) | 1400×770×1780 mm |
| Package Dimension (L×W×H) | 1680×920×2100 mm |
| Net Weight | 365 Kg |
| Gross Weight | 465 Kg |
Stainless steel interior and exterior to increase durability and reliability
Standard working temperature 134°C
Front loading cylindrical autoclave design
Automated drying function
Automatic pressure control switch
Automatically controlled sterilizing process, easy to operate
Over – temperature, over – pressure and auto – protect functions
Automatic water level cut-off
Safety audible and visible alarms
Digital temperature controller
Silicon rubber door gasket
Door cannot be opened until the pressure in the chamber is reduced to 0.027MPa
Safe door lock system ensuring protection during sterilization
Control system automatically adjusts steam inlet and outlet according to chamber temperature
Cylindrical horizontal autoclave is an ideal equipment for clinics, scientific research institutes, medical laboratories and microbiological organizations to sterilize surgical instruments, glassed fabrics and culture media etc.
Download Catalog for Horizontal Autoclave LBN-CH153
Download
Sterilizing Chamber Volume : 150 L
Working Temperature : 134°C
Adjustable Temperature Range : 40° - 134°C
Working Pressure : 0.22MPa
Sterilizing Chamber Volume : 200 L
Working Temperature : 134°C
Adjustable Temperature Range : 40° - 134°C
Working Pressure : 0.22MPa
Sterilizing Chamber Volume : 400 L
Working Temperature : 134°C
Adjustable Temperature Range : 40° - 134°C
Working Pressure : 0.22MPa
Sterilizing Chamber Volume : 500 L
Working Temperature : 134°C
Adjustable Temperature Range : 40° - 134°C
Working Pressure : 0.22MPa
Volume : 100 liters
Maximum Working / Design Temperature : 135° / 139°C
Maximum Working / Design Pressure : 0.22 / 0.25 MPa
Timer Range : 4 – 120 min
Volume : 50 liters
Maximum Working / Design Temperature : 135° / 139°C
Maximum Working / Design Pressure : 0.22 / 0.25 MPa
Timer Range : 4 – 120 min
Volume : 75 liters
Maximum Working / Design Temperature : 135° / 139°C
Maximum Working / Design Pressure : 0.22 / 0.25 MPa
Timer Range : 4 – 120 min
Volume : 29 Liters
Maximum Working / Design Temperature : 135° / 139°C
Maximum Working / Design Pressure : 0.22 / 0.25 MPa
Timer Range : 4 – 120 min
Sterilizing Chamber Volume : 280 L
Maximum Temperature Range : 134°C
Working Temperature : 115° - 134°C
Working Pressure : 0.22MPa
Sterilizing Chamber Volume : 100 L
Maximum Temperature Range : 134°C
Working Temperature : 115° - 134°C
Working Pressure : 0.22MPa
Sterilizing Chamber Volume : 150 L
Maximum Temperature Range : 134°C
Working Temperature : 115° - 134°C
Working Pressure : 0.22MPa
Sterilizing Chamber Volume : 200 L
Maximum Temperature Range : 134°C
Working Temperature : 115° - 134°C
Working Pressure : 0.22MPa
