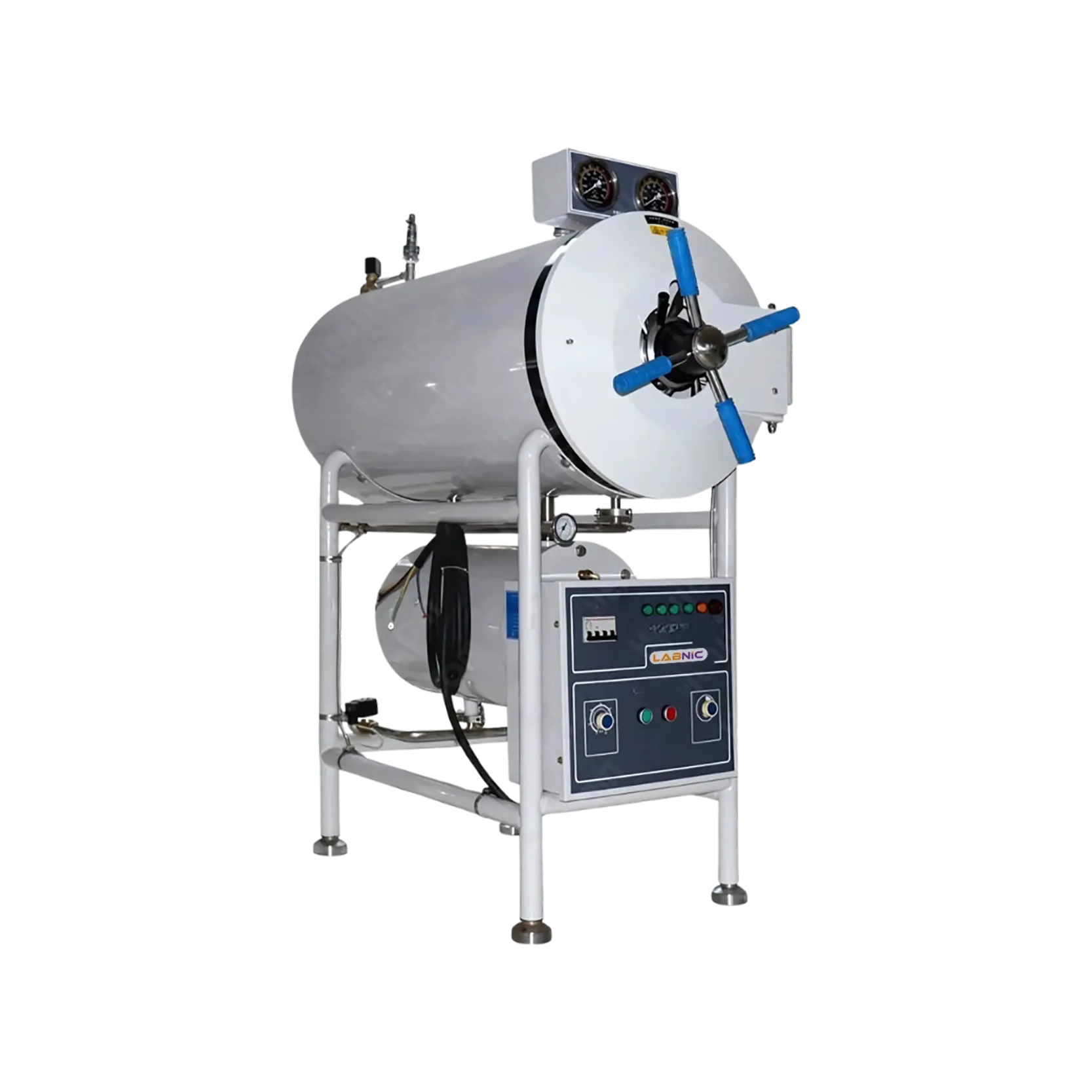

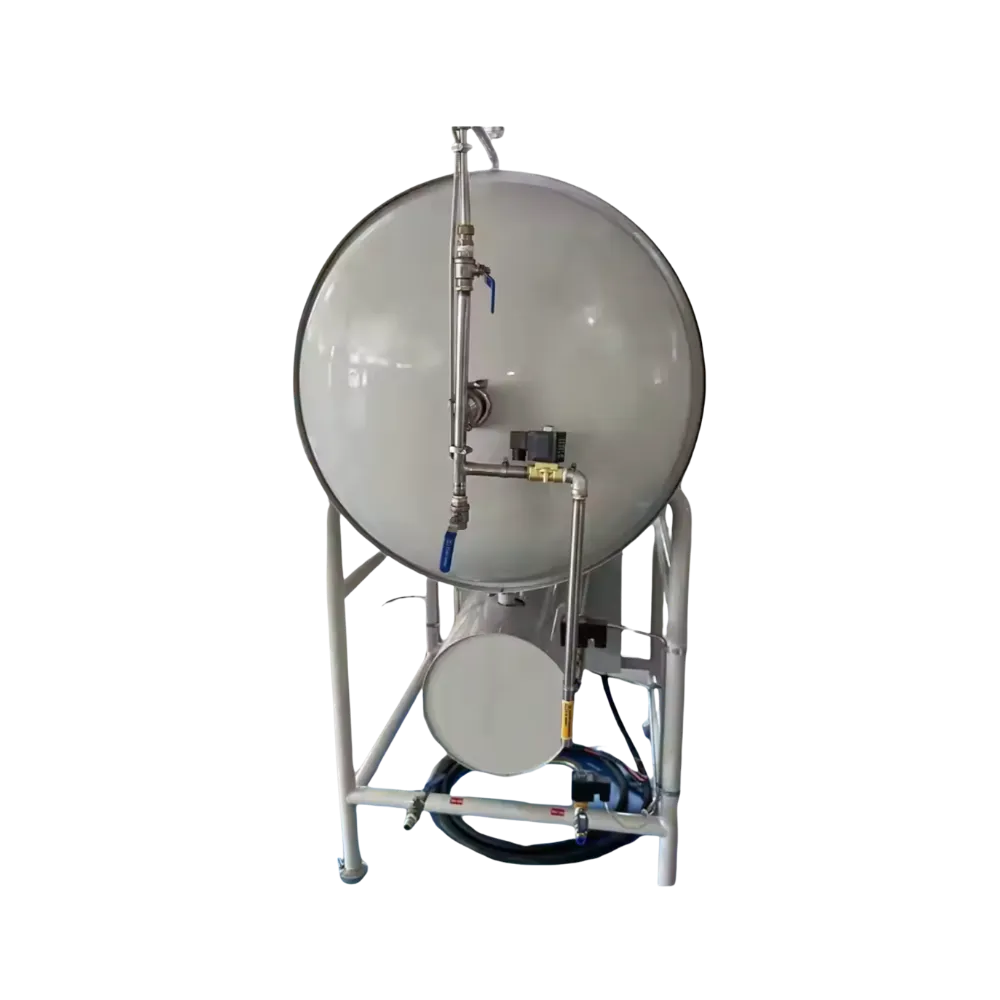

Horizontal Autoclave LBN-CH155

Horizontal Autoclave LBN-CH155 provides 500 L of chamber capacity for large-scale operations. It operates at an adjustable temperature range within 40° to 134°C. Equipped with automatic shutdown in case of system malfunction. Incorporated with a digital display for precise monitoring of temperature, pressure, and cycle duration. Our Horizontal Autoclave offers programmable sterilization cycles for various types of materials.

Volume 500 L
Working Temperature 134°C
Adjustable Temperature Range 40° to 134°C
Working Pressure 0.22 Mpa
Sterilization Time 0 to 60 Minutes
Drying Time 0 to 60 Minutes
Heat Average ≤ ± 2°C
Power Consumption 18 KW
Power Supply AC 380V, 50Hz
Chamber Dimension 700 × 1300 mm
Dimension 1800 × 900 × 1820 mm
Package Dimension 1850 × 1050 × 2100 mm
Net Weight 470 kg
Gross Weight 580 kg

Digital Control Panel

Automated Drying Function

Alarm System

Safety mechanism

Vacuum Exhaust System

Horizontal Autoclave LBN-CH155 is ideal for sterilization and decontamination of glassware, surgical instruments, laboratory equipment, culture media, etc at hospitals, pharmaceutical industries, microbiology laboratories, and food processing industries.

Download Catalog for Horizontal Autoclave LBN-CH155

Download

Horizontal Autoclave

Labnic Horizontal Autoclave is designed for high volume applications with chamber capacities ranging from 150 L to 500 L. These autoclaves operate at a standard temperature of 134℃ for efficient sterilization. Their advanced temperature and pressure control deliver accurate and consistent sterilization. They feature over-pressure and temperature detection to ensure safety. Our Horizontal Autoclave is ideal for application in diverse lab settings.

Horizontal Autoclave LBN-CH151

Horizontal Autoclave LBN-CH151

Volume : 150 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° to 134°C

Working Pressure : 0.22 Mpa

Horizontal Autoclave LBN-CH152

Horizontal Autoclave LBN-CH152

Volume : 200 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° to 134°C

Working Pressure : 0.22 Mpa

Horizontal Autoclave LBN-CH153
Horizontal Autoclave LBN-CH153

Volume : 280 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° to 134°C

Working Pressure : 0.22 Mpa

Horizontal Autoclave LBN-CH154
Horizontal Autoclave LBN-CH154

Volume : 400 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° to 134°C

Working Pressure : 0.22 Mpa

Labnic Class N Tabletop Autoclave has a compact design and offers a range of capacities from 8L to 23L. They operate using a steam process that effectively displaces air, ensuring proper disinfection. Their intuitive controls make operations simple and efficient. Their energy-efficient performance helps lower operating costs. Our Tabletop Autoclave is ideal for sterilizing unwrapped instruments and solid items.

Class N Tabletop Autoclave LBN-NA153

Class N Tabletop Autoclave LBN-NA153

Volume : 18 L

Chamber Volume : Ø250×370

Working Temperature : 134°C

Design Temperature : 139°C

Class N Tabletop Autoclave LBN-NA154
Class N Tabletop Autoclave LBN-NA154

Volume : 23 L

Chamber Volume : Ø250×452 mm

Working Temperature : 134°C

Working Pressure : 0.22 MPa (2.2 bar)

Class N Tabletop Autoclave LBN-NA152
Class N Tabletop Autoclave LBN-NA152

Volume : 12 L

Chamber Volume : Ø200 × 355 mm

Working Temperature : 134°C

Design Temperature : 139°C

Class N Tabletop Autoclave LBN-NA151

Class N Tabletop Autoclave LBN-NA151

Volume : 8 L

Chamber Volume : Ø170 × 320 mm

Working Temperature : 134°C

Design Temperature : 139°C

Labnic Vertical Autoclave is a high-pressure steam sterilizer that works with in a temperature range of 135 to 139℃. Their upright design makes loading and unloading easy. They feature high resolution LCD display that shows real-time set and actual temperatures for intuitive operation. These are equipped with alarm systems to signal the end of sterilization and indicate anomalies. Our Vertical Autoclave is ideal for educational institutes, laboratories and different quality assurance facilities.

Vertical Autoclave LBN-VA152
Vertical Autoclave LBN-VA152

Volume : 50 L

Working Temperature : 135°C

Maximum Temperature : 139°C

Working Pressure : 0.22 MPa

Vertical Autoclave LBN-VA151
Vertical Autoclave LBN-VA151

Volume : 29 L

Working Temperature : 135°C

Maximum Temperature : 139°C

Working Pressure : 0.22 MPa

Vertical Autoclave LBN-VA153

Vertical Autoclave LBN-VA153

Volume : 75 L

Working Temperature : 135°C

Maximum Temperature : 139°C

Working Pressure : 0.22 MPa

Vertical Autoclave LBN-VA154

Vertical Autoclave LBN-VA154

Volume : 100 L

Working Temperature : 135°C

Maximum Temperature : 139°C

Working Pressure : 0.22 MPa

Labnic Rectangular Horizontal Autoclave is a front-loading chamber available in capacities ranging from 100L to 280L. They feature a high-resolution, user-friendly screen for easy operation. Their safety valves prevent over pressure. These autoclaves are equipped with water quality sensor for proper sterilization. Our Rectangular Horizontal Autoclave is well suited for use in laboratories, healthcare facilities, and industrial settings.

Rectangular Horizontal Autoclave LBN-RH152
Rectangular Horizontal Autoclave LBN-RH152

Volume : 150 L

Maximum Temperature : 134°C

Working Temperature Range : 115° to 134°C

Working Pressure : 0.22 MPa

Rectangular Horizontal Autoclave LBN-RH154

Rectangular Horizontal Autoclave LBN-RH154

Volume : 280 L

Maximum Temperature : 134°C

Working Temperature Range : 115° to 134°C

Working Pressure : 0.22 MPa

Rectangular Horizontal Autoclave LBN-RH151

Rectangular Horizontal Autoclave LBN-RH151

Volume : 100 L

Maximum Temperature : 134°C

Working Temperature Range : 115° to 134°C

Working Pressure : 0.22 Mpa

Rectangular Horizontal Autoclave LBN-RH153
Rectangular Horizontal Autoclave LBN-RH153

Volume : 200 L

Maximum Temperature : 134°C

Working Temperature Range : 115° to 134°C

Working Pressure : 0.22 MPa

Labnic Class B Tabletop Autoclave offers space-saving benchtop sterilizers with capacities ranging from 18L to 23L. Their sealed covers ensure hygiene by preventing impurities during the process. They feature microcomputer controls for precise programming and monitoring of cycles. Their stainless-steel design ensures durability and resistance to corrosion. Our Tabletop Autoclave includes a vacuum system that ensures efficient decontamination of a wide range of items.

Class B Tabletop Autoclave LBN-TA151

Class B Tabletop Autoclave LBN-TA151

Volume : 8 L

Chamber Volume : Ø170 × 320 mm

Working Temperature : 134°C

Working Pressure : 0.22 MPa (2.2 bar)

Class B Tabletop Autoclave LBN-TA152

Class B Tabletop Autoclave LBN-TA152

Volume : 12 L

Chamber Volume : Ø200 × 355 mm

Working Temperature : 134°C

Working Pressure : 0.22 MPa (2.2 bar)

Class B Tabletop Autoclave LBN-TA153
Class B Tabletop Autoclave LBN-TA153

Volume : 18 L

Chamber Volume : Ø250 × 370 mm

Working Temperature : 134°C

Working Pressure : 0.22 MPa (2.2 bar)

Class B Tabletop Autoclave LBN-TA154
Class B Tabletop Autoclave LBN-TA154

Volume : 23 L

Chamber Volume : Ø250 × 470 mm

Working Temperature : 134°C

Working Pressure : 0.22 MPa (2.2 bar)
