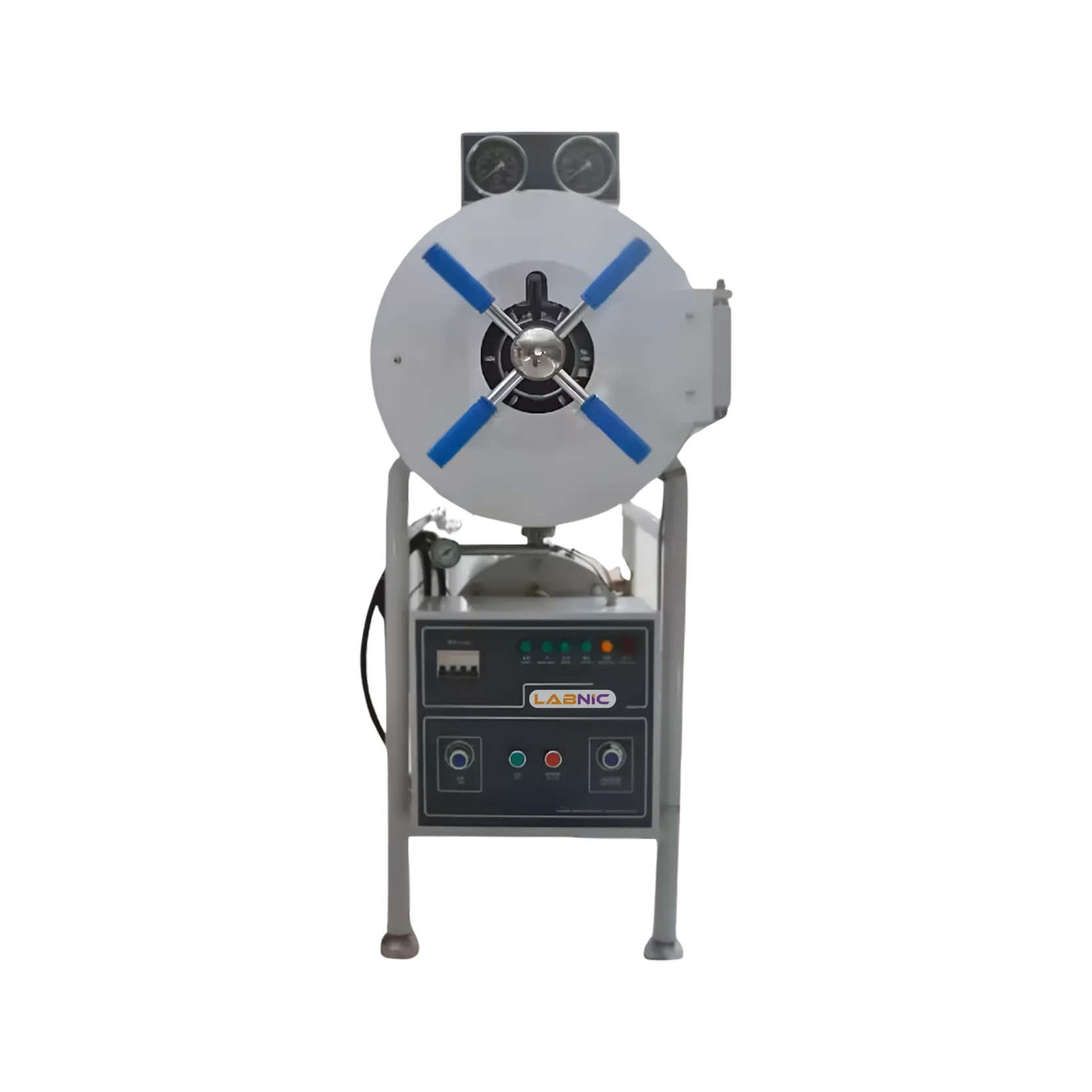

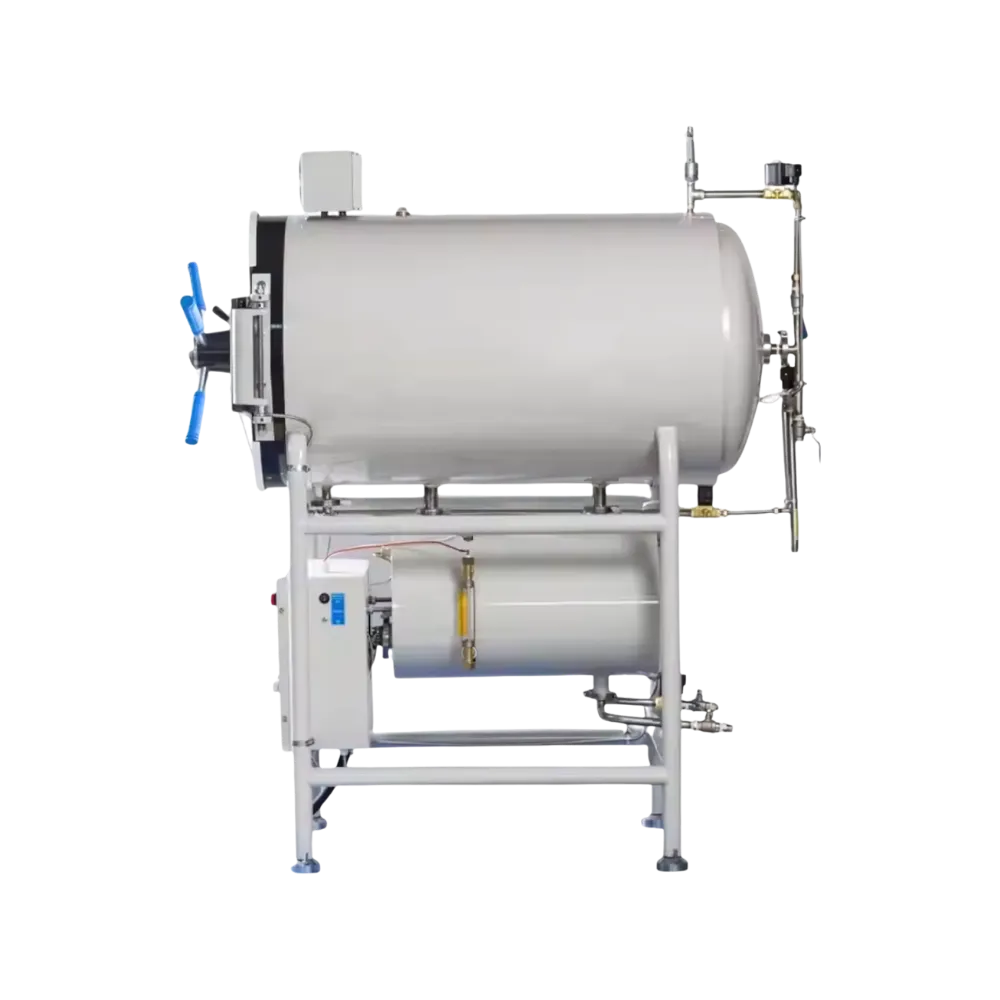

Horizontal Autoclave LBN-CH151 offers 150 L of capacity to provide space for multiple loads. It operates at an adjustable temperature range within 40° to 134°C for optimal sterilization. Built with corrosion-resistant stainless steel to withstand high-pressure sterilization. It comes with rapid cooling and drying features to minimize downtime. Our Horizontal Autoclave ensures safety and hygiene in critical environments.
| Volume | 150 L |
| Working Temperature | 134°C |
| Adjustable Temperature Range | 40° to 134°C |
| Working Pressure | 0.22 Mpa |
| Sterilization Time | 0 to 60 Minutes |
| Drying Time | 0 to 60 Minutes |
| Heat Average | ≤ ± 2°C |
| Power Consumption | 9 KW |
| Power Supply | AC 380V, 50Hz |
| Chamber Dimension | 440 × 1000 mm |
| Package Dimension | 1550 × 750 × 1850 mm |
| Dimension | 1400 × 600 × 1300 mm |
| Net Weight | 240 kg |
| Gross Weight | 320 kg |
Automatic Pressure Control Switch
Alarm System
Digital Temperature Controller
Safety Lock
Pre-Programmed Sterilization Cycles
Horizontal Autoclave LBN-CH151 is ideal for sterilizing laboratory equipment, surgical tools, culture media, biohazardous waste, manufacturing instruments, glassware and other materials.
Download Catalog for Horizontal Autoclave LBN-CH151
DownloadLabnic Horizontal Autoclave is designed for high volume applications with chamber capacities ranging from 150 L to 500 L. These autoclaves operate at a standard temperature of 134℃ for efficient sterilization. Their advanced temperature and pressure control deliver accurate and consistent sterilization. They feature over-pressure and temperature detection to ensure safety. Our Horizontal Autoclave is ideal for application in diverse lab settings.
Volume : 200 L
Working Temperature : 134°C
Adjustable Temperature Range : 40° to 134°C
Working Pressure : 0.22 Mpa
Volume : 280 L
Working Temperature : 134°C
Adjustable Temperature Range : 40° to 134°C
Working Pressure : 0.22 Mpa
Volume : 400 L
Working Temperature : 134°C
Adjustable Temperature Range : 40° to 134°C
Working Pressure : 0.22 Mpa
Volume : 500 L
Working Temperature : 134°C
Adjustable Temperature Range : 40° to 134°C
Working Pressure : 0.22 Mpa
Labnic Class N Tabletop Autoclave has a compact design and offers a range of capacities from 8L to 23L. They operate using a steam process that effectively displaces air, ensuring proper disinfection. Their intuitive controls make operations simple and efficient. Their energy-efficient performance helps lower operating costs. Our Tabletop Autoclave is ideal for sterilizing unwrapped instruments and solid items.
Volume : 8 L
Chamber Volume : Ø170 × 320 mm
Working Temperature : 134°C
Design Temperature : 139°C
Volume : 23 L
Chamber Volume : Ø250×452 mm
Working Temperature : 134°C
Working Pressure : 0.22 MPa (2.2 bar)
Volume : 12 L
Chamber Volume : Ø200 × 355 mm
Working Temperature : 134°C
Design Temperature : 139°C
Volume : 18 L
Chamber Volume : Ø250×370
Working Temperature : 134°C
Design Temperature : 139°C
Labnic Vertical Autoclave is a high-pressure steam sterilizer that works with in a temperature range of 135 to 139℃. Their upright design makes loading and unloading easy. They feature high resolution LCD display that shows real-time set and actual temperatures for intuitive operation. These are equipped with alarm systems to signal the end of sterilization and indicate anomalies. Our Vertical Autoclave is ideal for educational institutes, laboratories and different quality assurance facilities.
Volume : 50 L
Working Temperature : 135°C
Maximum Temperature : 139°C
Working Pressure : 0.22 MPa
Volume : 29 L
Working Temperature : 135°C
Maximum Temperature : 139°C
Working Pressure : 0.22 MPa
Volume : 75 L
Working Temperature : 135°C
Maximum Temperature : 139°C
Working Pressure : 0.22 MPa
Volume : 100 L
Working Temperature : 135°C
Maximum Temperature : 139°C
Working Pressure : 0.22 MPa
Labnic Class B Tabletop Autoclave offers space-saving benchtop sterilizers with capacities ranging from 18L to 23L. Their sealed covers ensure hygiene by preventing impurities during the process. They feature microcomputer controls for precise programming and monitoring of cycles. Their stainless-steel design ensures durability and resistance to corrosion. Our Tabletop Autoclave includes a vacuum system that ensures efficient decontamination of a wide range of items.
Volume : 8 L
Chamber Volume : Ø170 × 320 mm
Working Temperature : 134°C
Working Pressure : 0.22 MPa (2.2 bar)
Volume : 23 L
Chamber Volume : Ø250 × 470 mm
Working Temperature : 134°C
Working Pressure : 0.22 MPa (2.2 bar)
Volume : 12 L
Chamber Volume : Ø200 × 355 mm
Working Temperature : 134°C
Working Pressure : 0.22 MPa (2.2 bar)
Volume : 18 L
Chamber Volume : Ø250 × 370 mm
Working Temperature : 134°C
Working Pressure : 0.22 MPa (2.2 bar)
Labnic Rectangular Horizontal Autoclave is a front-loading chamber available in capacities ranging from 100L to 280L. They feature a high-resolution, user-friendly screen for easy operation. Their safety valves prevent over pressure. These autoclaves are equipped with water quality sensor for proper sterilization. Our Rectangular Horizontal Autoclave is well suited for use in laboratories, healthcare facilities, and industrial settings.
Volume : 280 L
Maximum Temperature : 134°C
Working Temperature Range : 115° to 134°C
Working Pressure : 0.22 MPa
Volume : 100 L
Maximum Temperature : 134°C
Working Temperature Range : 115° to 134°C
Working Pressure : 0.22 Mpa
Volume : 200 L
Maximum Temperature : 134°C
Working Temperature Range : 115° to 134°C
Working Pressure : 0.22 MPa
Volume : 150 L
Maximum Temperature : 134°C
Working Temperature Range : 115° to 134°C
Working Pressure : 0.22 MPa
