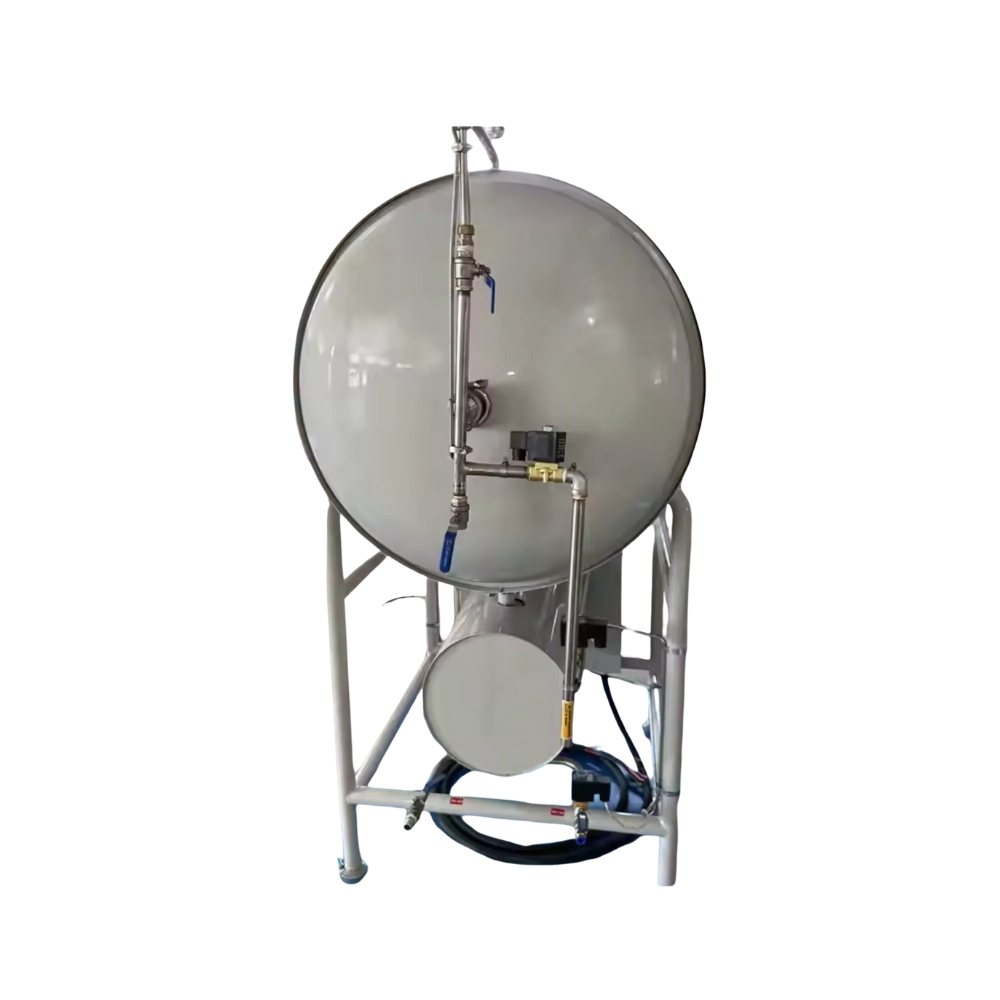

Horizontal Autoclave LBN-CH151 is a front-loading cylindrical autoclave with a 150-liter chamber capacity designed to meet large capacity sterilization needs. It is a programmable cylindrical vessel that enables automatic steam sterilization with precise cycles operating within a timer range of 0 - 60 minutes and a working temperature range of 134°C. The chamber is made of stainless steel for increased durability and reliability, and it has an auto-protect function that shuts off the power if there is insufficient water supply while the process is running.
Sterilizing Chamber Volume | 150 L |
Working Temperature | 134°C |
Adjustable Temperature Range | 40° - 134°C |
Working Pressure | 0.22MPa |
Sterilization Time | 0 – 60 minutes |
Drying Time | 0 – 60 minutes |
Heat Average | ≤ ±2°C |
Power | 9 KW |
Power Supply | AC 380V, 50Hz |
Chamber Dimension (ɸ×D) | 440 ×1000 mm |
Dimension (L×W×H) | 1400×600×1300 mm |
Package Dimension (L×W×H) | 1550×750×1850 mm |
Net Weight | 240 Kg |
Gross Weight | 320 Kg |
Cylindrical horizontal autoclave is an ideal equipment for clinics, scientific research institutes, medical laboratories and microbiological organizations to sterilize surgical instruments, glassed fabrics and culture media etc.
