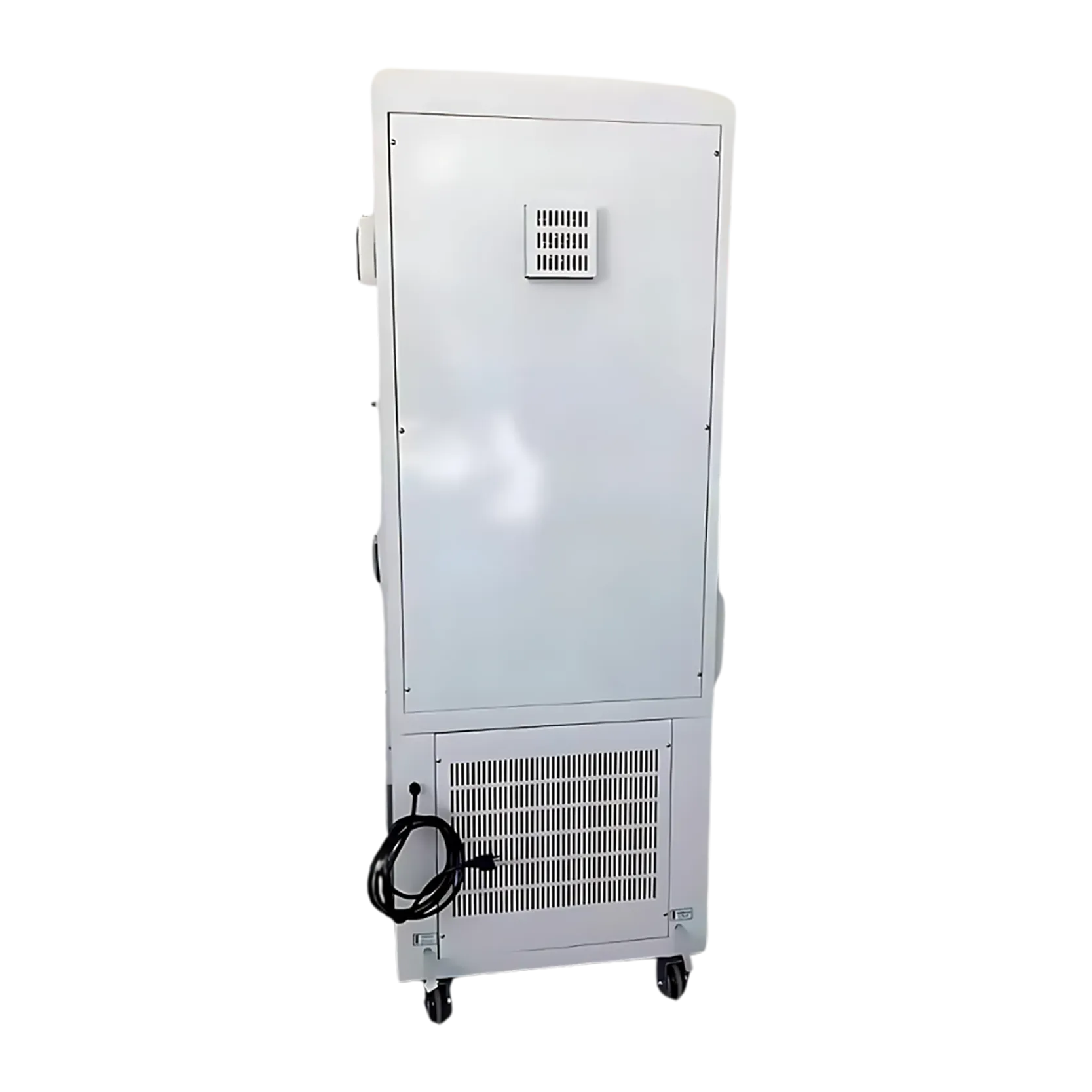

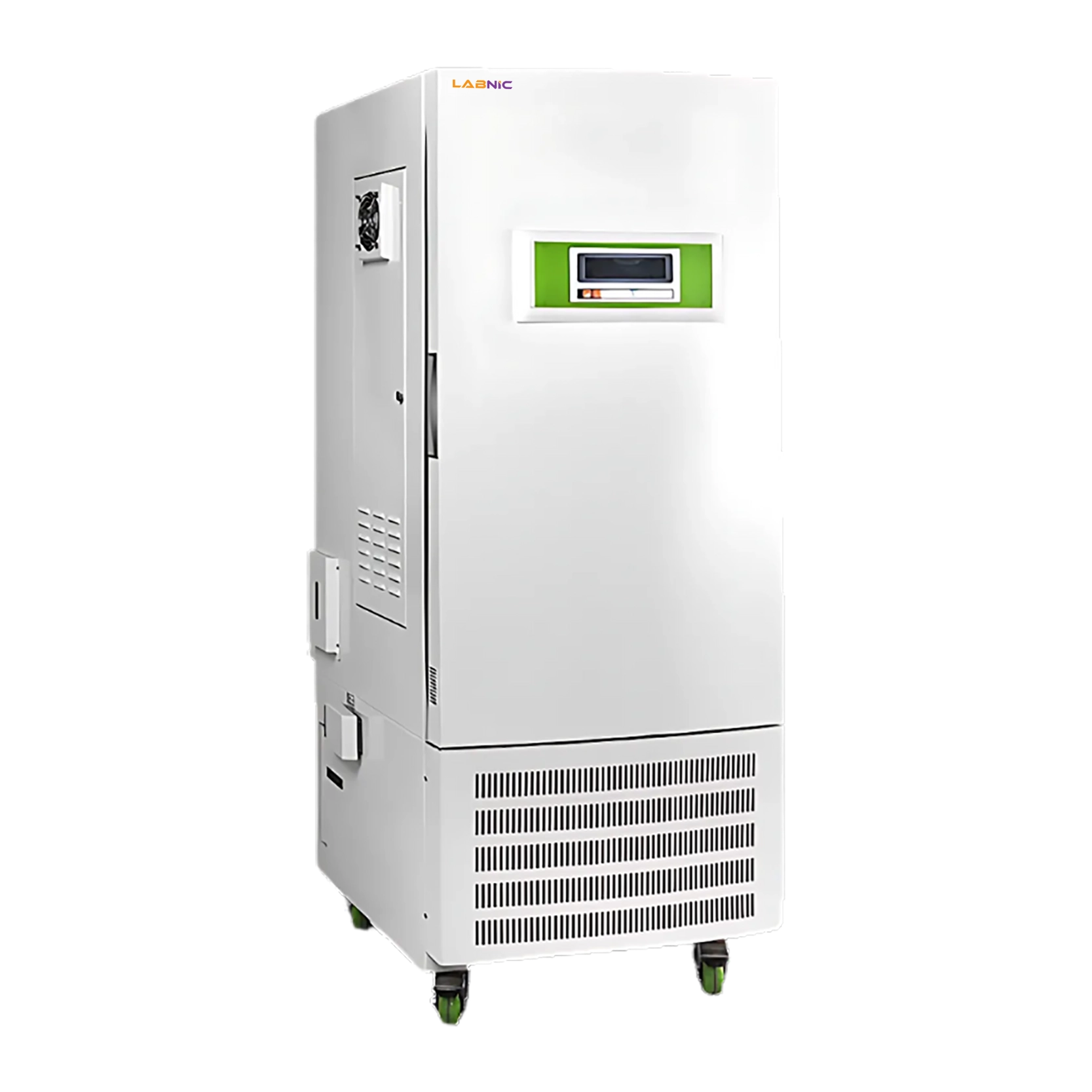

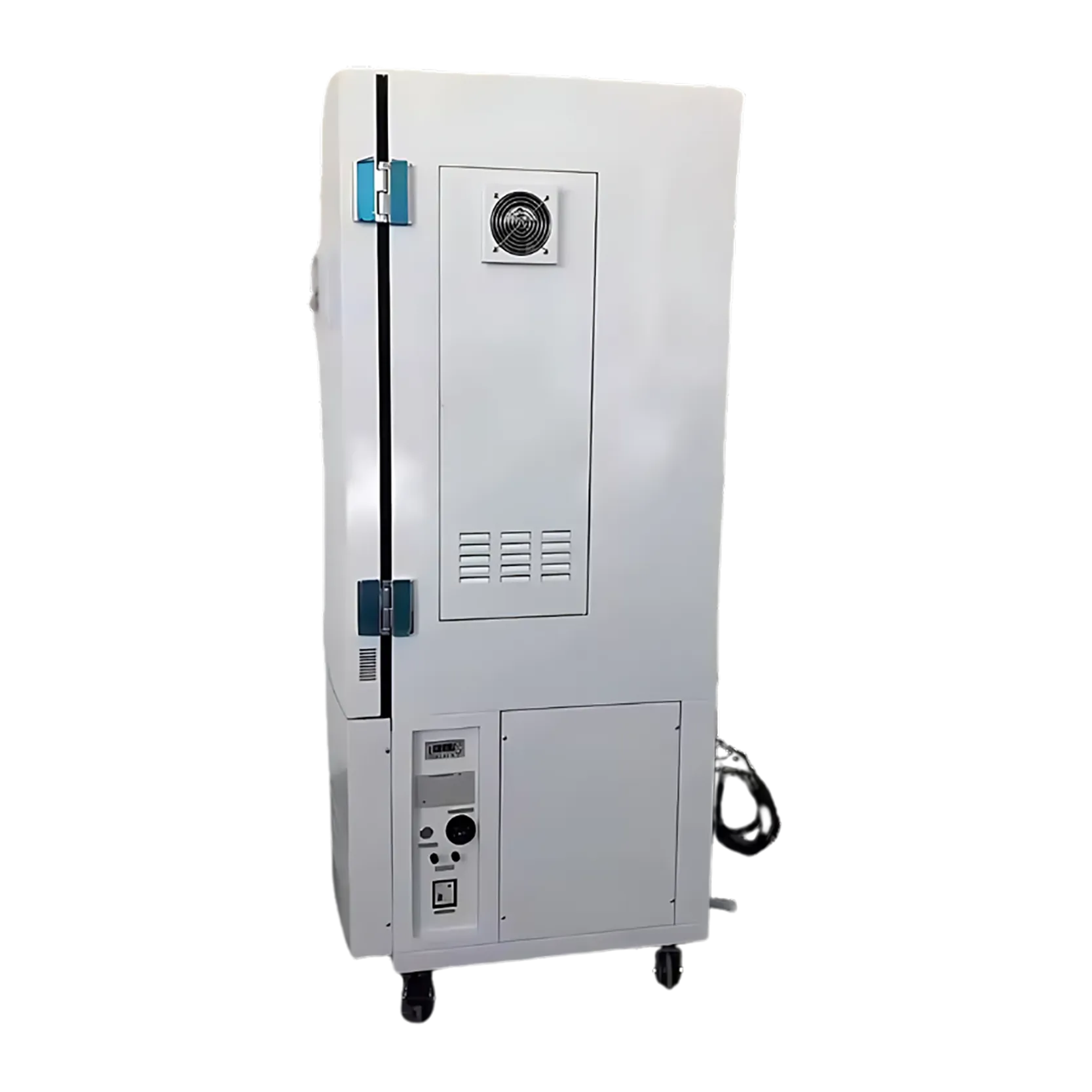

Cooling Incubator LBN-CI167 performs to a high standard, allowing for safe, reproducible incubation even at extreme temperatures. The stainless-steel chamber has a capacity of 800 L and movable shelves for easy cleaning. Its double door design, auxiliary thermostat, and LCD screen make it an excellent piece of operating equipment. Data can be recorded in real time by the external printer.
| Chamber Volume | 800 L |
| Temperature Range | -10 to 75 °C |
| Display Resolution | 0.1 °C |
| Temperature Stability | ±0.5 °C |
| Temperature Uniformity | ±1 °C |
| Timing Range | 0 – 99h59min |
| Refrigerant | R134a |
| Power Rating | 800 W |
| Power Supply | AC 220 10%, 50Hz 2% |
| Exterior Dimension (W x D x H) | 1130 × 930 × 1980 mm |
| Chamber Size (W x Dx H) | 965 × 610 × 1370 mm |
| Net weight | 240 Kg |
Compressor for automatic control of hot and cold temperature
High precision, microprocessor temperature control with large LCD display
Polished stainless-steel chamber, equipped with a fan for forced convection
Adjustable and moveable shelves that are easy to clean
Equipped with power supply outlet and lamp for easy observation
Equipped with spare temperature control which ensures the product work normally even the main temperature control failed (for heating)
The incubator door is built as a double door, with the inner door consisting of tempered glass for easy observation
RS485 connector to link computer and printer; computer and printer can both display temperature and time data
Equipped with leakage protection
Spare temperature control and the auxiliary thermostat ensures the normal working of the product
Cooling Incubators are used in Pharmaceutical, biotechnology, and research institutes for storage and incubation studies. They are mostly used for B.O.D tests, the preservation of sensitive bacterial, microbial, and plant cultures, serum incubation studies, and immunological work, etc.
Download Catalog for Cooling Incubator LBN-CI167
Download
Electrical Requirement : 220V 50Hz
Temperature Range : CL:-10℃ to 65°C
Display Resolution : 0.1°C
Temperature stability : High 0.5℃, low1℃
Chamber Volume : 175 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 275 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 375 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 475 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Chamber Volume : 1075 L
Temperature Range : -10 to 75 °C
Display Resolution : 0.1 °C
Temperature Stability : ±0.5 °C
Voltage : 220V/50Hz
Temperature Range : 0-65℃
Temperature Resolution Ratio : 0.1℃
Temperature Motion : ±0.5℃
Convection Mode : Forced Convection
Capacity : 80 L
Temperature Range : RT+5℃ - 55℃
Temperature Accuracy : 0.1
Convection Mode : Forced Convection
Capacity : 80 L
Temperature Range : RT+5℃ - 60℃
Temperature Accuracy : 0.1
Convection Mode : Forced Convection
Capacity : 160 L
Temperature Range : RT+5℃ - 60℃
Temperature Accuracy : 0.1
Cabin Volume : 248 L
Temperature Control Range : Ambient +5°C ~ 60°C
Working Environment Temperature : 5°C ~ 40°C
Sterilization : 140°C hot air sterilization
Convection Mode : Forced Convection
Capacity : 160 L
Temperature Range : RT+5℃ - 55℃
Temperature Accuracy : 0.1
Temperature Range : RT+5 to 60 °C
Capacity : 582 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : RT+5 to 60 °C
Capacity : 170 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : RT+5 to 60 °C
Capacity : 280 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 4 to 60 °C
Capacity : 170 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 4 to 60 °C
Capacity : 582 L
Shaking Speed : 40 to 300 rpm
Temperature Accuracy : ± 0.1 °C
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Temperature Range : 22 ± 2 °C
Temperature Accuracy : 0.1 °C
Temperature Control : Microprocessor controller
Oscillation : 60 ± 5 cycles/ minute
Temperature Range : 20-24°C
Capacity : 10 L
Blood Bags : 20
Refrigerant : R134a
Dimension : 540×605×960 mm
Voltage : 220 V 50 Hz
Storage area and layers (W×D×H) : 390×300×230 5 layers
Storage bags : 5 to 10 bags
Temperature Range : 20-24°C
Capacity : 5 L
Blood Bags : 10
Refrigerant : R134a
Capacity : 80 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 50 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 20 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 160 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Capacity : 270 L
Temperature Range : RT +5 to 66 ℃
Temperature Fluctuation : 0.5 ℃
Temperature Uniformity : ±1 ℃
Temperature Range : RT+5 to 60 °C
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : 4 to 60 ℃ (Cooling)
Capacity : 155 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
Temperature Range : RT+5 to 60 °C
Capacity : 265 L
Shaking Speed : 20 to 300 rpm
Time Range : 1 to 9999 minutes
