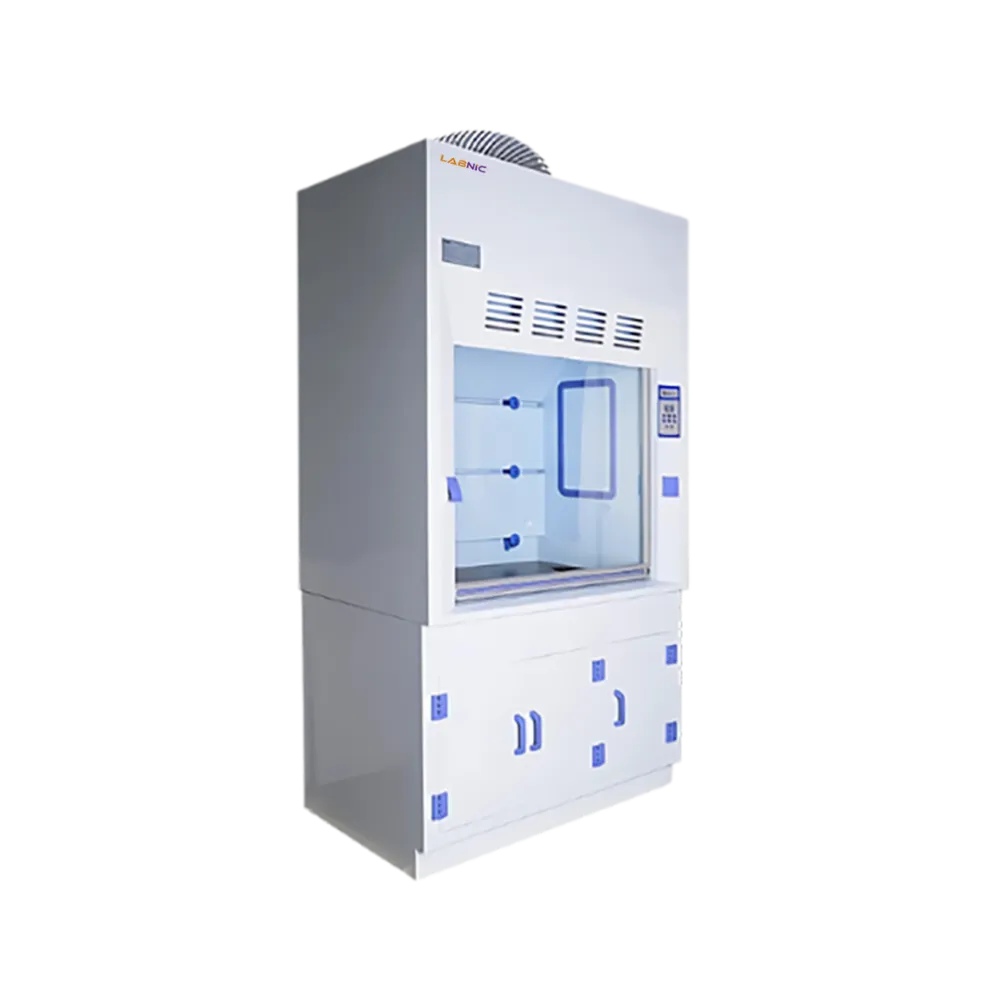

PP Spray Fume Hood LBN-PF163 is a custom-made fume hood with an exhaust volume of 920m3/h designed to reduce perchloric acid residues. The inside of the deflector has a spray system that can neutralise the acid gas before discharging it into the exhaust gas. For ease of use, the advanced model includes a circulating pump, waterproof socket, water-gas remote control, PP sink, and an LED display.
| Material | Porcelain white PP, 8mm thickness |
| Airflow Velocity | 0.3 ~ 0.8 m/s |
| Exhaust Volume | 920 m3 /h |
| Waterproof Socket | Two, total load ≤500 W |
| Blower | Built-in PP centrifugal blower |
| Front Window | Resistant to acid and alkali, manual, 5mm toughened glass |
| Operators | 2 - 3 |
| Noise | ≤ 68 dB (A) |
| Illumination | ≥ 400lx |
| LED Lamp | 30 W |
| Power Consumption | 500 W + 370 W (Pump) |
| Power Supply | 220V, 50/60 Hz |
| Dimensions (W × D × H) | 1547 × 800 × 2450 mm |
| Gross Weight | 308 Kg |
| Model No | Name | Quantity |
|---|---|---|
| LBN-PF161- LBN-PF164 | Work Table: Chemical Resistant Phenolic Resin | 1 pc |
| LBN-PF161- LBN-PF163 | 4.3 Meters PVC Duct, Diameter: 250mm | 1 pc |
| LBN-PF164 | 4.3 Meters PVC Duct, Diameter: 250mm | 2 pcs |
| LBN-PF161- LBN-PF163 | Pipe Strap | 2 pcs |
| LBN-PF164 | Pipe Strap | 4 pcs |
| LBN-PF161- LBN-PF164 | Base Cabinet | 1 pc |
| LBN-PF161- LBN-PF164 | Waterproof Socket | 2 pcs |
| LBN-PF161- LBN-PF164 | Water Tap (PP) | 1 pc |
| LBN-PF161- LBN-PF164 | Gas Tap (PP) | 1 pc |
| LBN-PF161- LBN-PF164 | Water Sink | 1 pc |
| LBN-PF161- LBN-PF163 | PP Centrifugal Blower | 1 pc |
| LBN-PF164 | PP Centrifugal Blower | 2 pcs |
| LBN-PF161- LBN-PF164 | LED Light | 1 pc |
PP Spray Fume Hoods are used in laboratories to ensure that high concentrations of perchloric acid residues do not accumulate in the fume hood, thereby preventing chemical reactions such as combustion, explosion or a lot of heat.
PP Spray Fume Hoods are used in laboratories to ensure that high concentrations of perchloric acid residues do not accumulate in the fume hood, thereby preventing chemical reactions such as combustion, explosion or a lot of heat.
PP Spray Fume Hood LBN-PF163 is a custom-made fume hood with an exhaust volume of 920m3/h designed to reduce perchloric acid residues. The inside of the deflector has a spray system that can neutralise the acid gas before discharging it into the exhaust gas. For ease of use, the advanced model includes a circulating pump, waterproof socket, water-gas remote control, PP sink, and an LED display.
