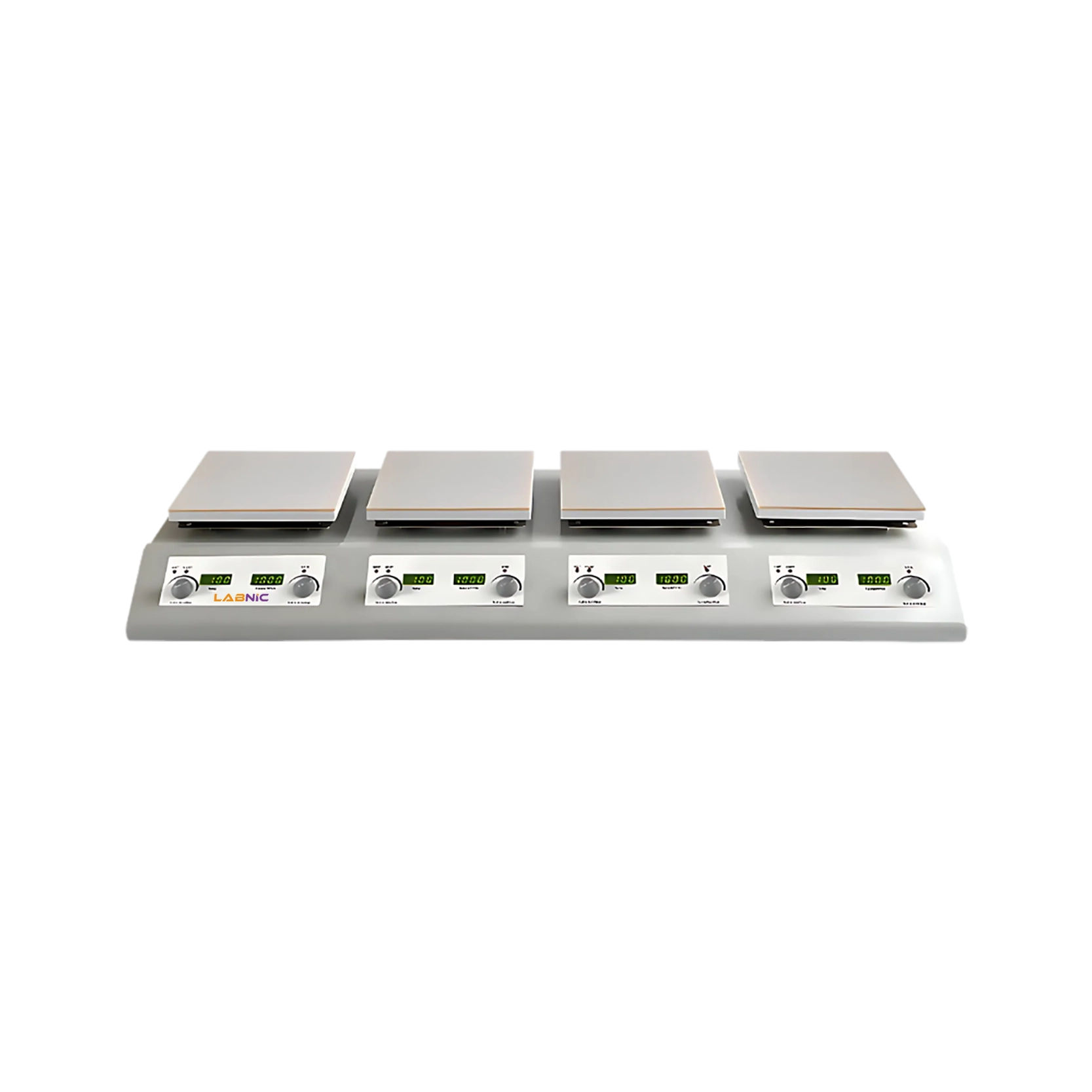

Multi-Plate Stirrer LBN-MP152 is designed with four stirring plates each with a maximum capacity of 10L. Incorporated with a robust ceramic work surface, it ensures excellent heat resistance and durability. Equipped with an LED display, it enables precise monitoring of temperature and speed settings. Integrated with an external PT1000 sensor, it delivers accurate and consistent temperature control. Our Multi-Plate Stirrer is perfect for applications in research, chemical processing, and laboratory testing.
| Speed Range | 150 to 1500rpm |
| Plate Number | 4 |
| Number of Stirring Positions in each Plate | 1 |
| Maximum Stirring Quantity per Stirring Position | 10L (H2O) |
| Display | LED |
| Plate Material | Ceramic |
| Hot Warning | Yes |
| Number of Control | 4 |
| Temperature Setting Range | 35 to 500℃ |
| Heating Range for Plate | 35 to 500℃ |
| Heating Range for Solution | 35 to 200℃ |
| External Temperature Sensor | PT1000 |
| Heating Setting Resolution of Plate | 1℃ |
| Heating Setting Resolution of Solution | 0.1℃ |
| Temperature Stability | 1℃ |
| Heat Control Accuracy with PT1000 | +/-0.5℃ |
| Capable of Calibration on External Probe | Yes |
| Stir Bar Length Range | 25 to 60mm |
| Overheat Warning in Plate and Medium Detection | Yes |
| Operation Ambient Temperature | 5 to 40℃ |
| Operation Relative Humidity | 0.8 |
| Protection Class According to DIN EN 60529 | IP 21 |
| Power Consumption | 2500W |
| Power Supply | 200 to 240V |
| Frequency | 50/60Hz |
| Each Plate Dimension | 160mm × 160mm |
| Dimensions (W×D×H) | 760×290×100 mm |
| Weight | 3.5kg |
Multi-Plate Stirrer LBN-MP152 is perfect for applications in chemistry, biology, and other fields that require precise temperature control and mixing of solutions.
Multi-Plate Stirrer LBN-MP152 is perfect for applications in chemistry, biology, and other fields that require precise temperature control and mixing of solutions.
Most Frequently Asked Questions
1. How do Multi Plate Stirrers support versatile workflow?
Ans. Many models offer independent or configurable stations so different samples can run under tailored conditions in one unit.
2. What control and monitoring features are common on Multi Plate Stirrers?
Ans. Multi Plate Stirrers typically include precise speed controls, digital displays, and easy operation interfaces for clear parameter setting and monitoring.
3. Can Multi Plate Stirrers run samples together or separately?
Ans. Yes, they can be set to operate synchronously or asynchronously, allowing either uniform or individualized stirring across plates.
4. In which applications are Multi Plate Stirrers most useful?
Ans. They’re ideal for chemical synthesis, biological research, and quality control where multiple, parallel mixing tasks are required.
5. What benefits do Multi Plate Stirrers bring to space limited labs?
Ans. They consolidate several stirring stations into one compact device, saving bench space while maintaining efficient, multi sample processing.
6. What are Multi Plate Stirrers used for?
Ans. Multi Plate Stirrers enable simultaneous stirring of several samples, boosting throughput for labs handling multiple reactions or tests at once.
Multi-Plate Stirrer LBN-MP152 is designed with four stirring plates each with a maximum capacity of 10L. Incorporated with a robust ceramic work surface, it ensures excellent heat resistance and durability. Equipped with an LED display, it enables precise monitoring of temperature and speed settings. Integrated with an external PT1000 sensor, it delivers accurate and consistent temperature control. Our Multi-Plate Stirrer is perfect for applications in research, chemical processing, and laboratory testing.
