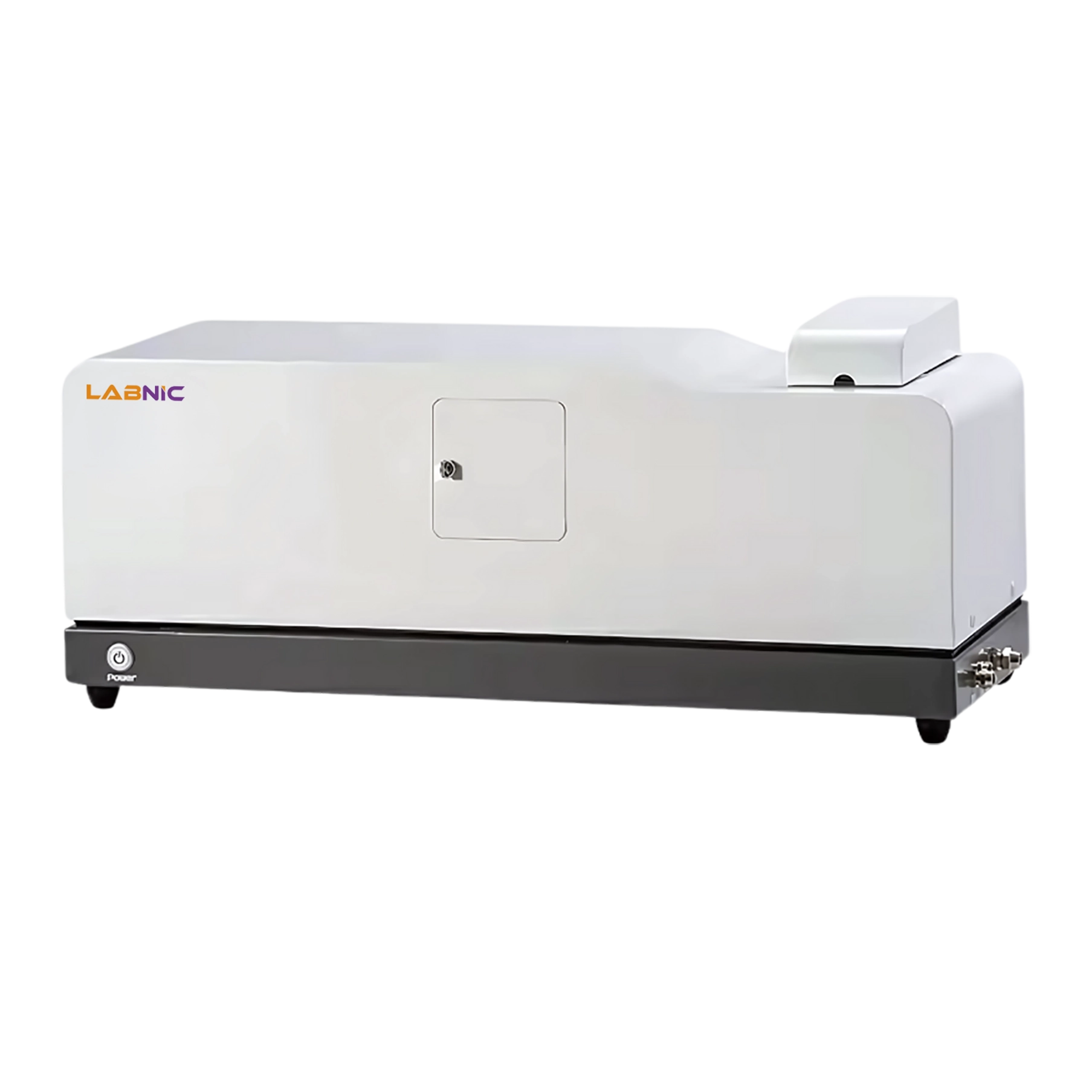

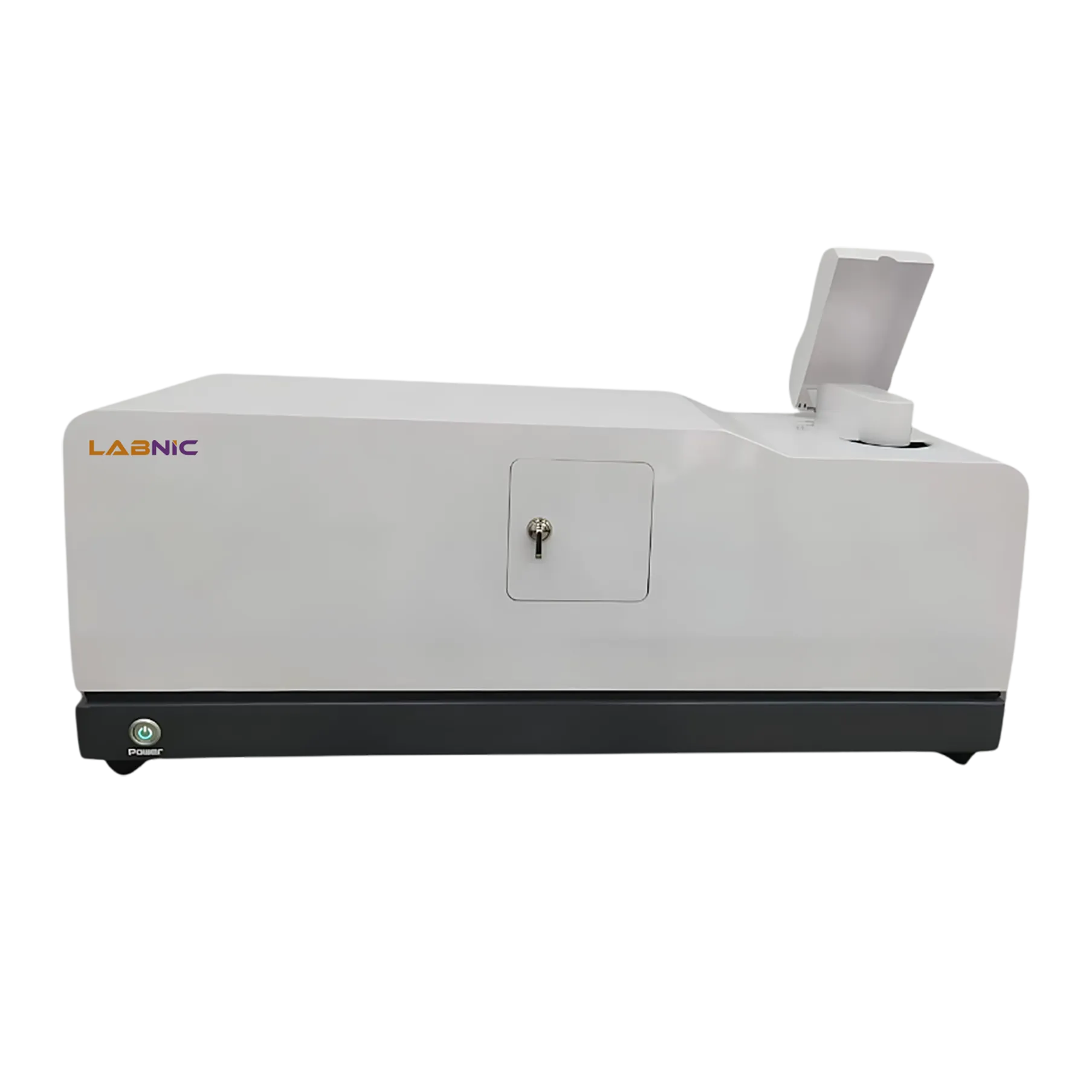

Laser Particle Size Analyzer LBN-LPA110 is a fully automated instrument designed for accurate particle size analysis across a wide range of materials. It has an advanced optical path design with enhanced resolution of the tool. Integrated optics and a 70-channel detector ensure precise 0.1 μm to 800 μm particle analysis. Equipped with a fourth-generation detector facilitates strong oxidation resistance and photoelectric conversion efficiency. Our Automatic Laser Particle Size Analyzer is ideal for pharmaceuticals, chemicals, mining, and quality control labs.
| Sample Volume | 190 to 600 ml Standard |
| Test Range | 0.1 μm to 800 μm |
| Number of Detector Channels | 70 |
| Accuracy Error | Less than 1% (National standard sample D50 value) |
| Repeatability Error | Less than 0.5% (National standard sample D50 value) |
| Mixing Speed | 100 to 3950 RPM |
| Laser Parameter | Imported Fiber Output High Power λ=635 nm, P >10 mW |
| Circulation System | Adjustable Flow 0 to 10 L/min |
| Calibration | Automatic Optical Path Calibration |
| Software Features | Auto SOP, Multilingual UI, Real-Time Data Logging |
| Statistical Modes | Volume, Quantity, R-R, Log-Normal Distributions |
| Data Output | Word, Excel, BMP, Text formats |
| Power Consumption | 80W |
| Power Supply | 40 KHz |
| Dimensions (L×W×H) | 850 × 410 × 450 mm |
| Packaging Dimension | 980×430×530mm |
| Net Weight | 30kg |
| Gross Weight | 60 kg |
Computer
Laser Particle Size Analyzer LBN-LPA110 is ideal for precision particle analysis in industries such as pharmaceuticals, chemicals, mining, metallurgy, microbiology and research laboratories.
Laser Particle Size Analyzer LBN-LPA110 is ideal for precision particle analysis in industries such as pharmaceuticals, chemicals, mining, metallurgy, microbiology and research laboratories.
Most Frequently Asked Questions
1. What are Laser Particle Size Analyzers used for?
Ans. Laser Particle Size Analyzers are used to measure particle size distribution accurately in powders, suspensions, and dispersed materials.
2. What measurement technology is used in Laser Particle Size Analyzers?
Ans. Laser Particle Size Analyzers use advanced laser diffraction techniques to deliver precise and reliable particle size analysis.
3. How do Laser Particle Size Analyzers support accurate analysis?
Ans. Laser Particle Size Analyzers provide consistent performance and stable measurement conditions for dependable particle distribution results.
4. What operation features are included in Laser Particle Size Analyzers?
Ans. Laser Particle Size Analyzers feature user-friendly interfaces that ensure smooth operation and easy data interpretation.
5. What types of materials can be analyzed using Laser Particle Size Analyzers?
Ans. Laser Particle Size Analyzers support analysis of a wide range of materials used across different industries.
6. Where are Laser Particle Size Analyzers commonly used?
Ans. Laser Particle Size Analyzers are commonly used in pharmaceutical laboratories, chemical industries, and research facilities.
