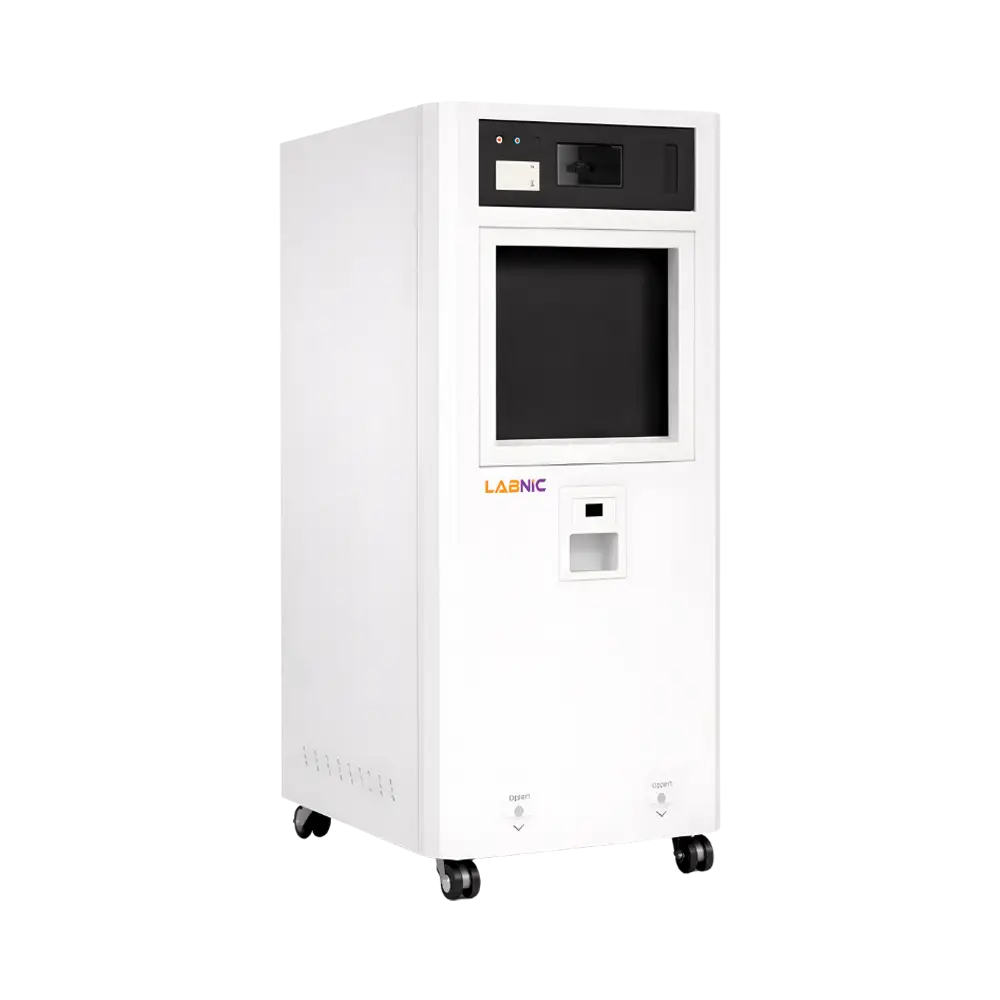

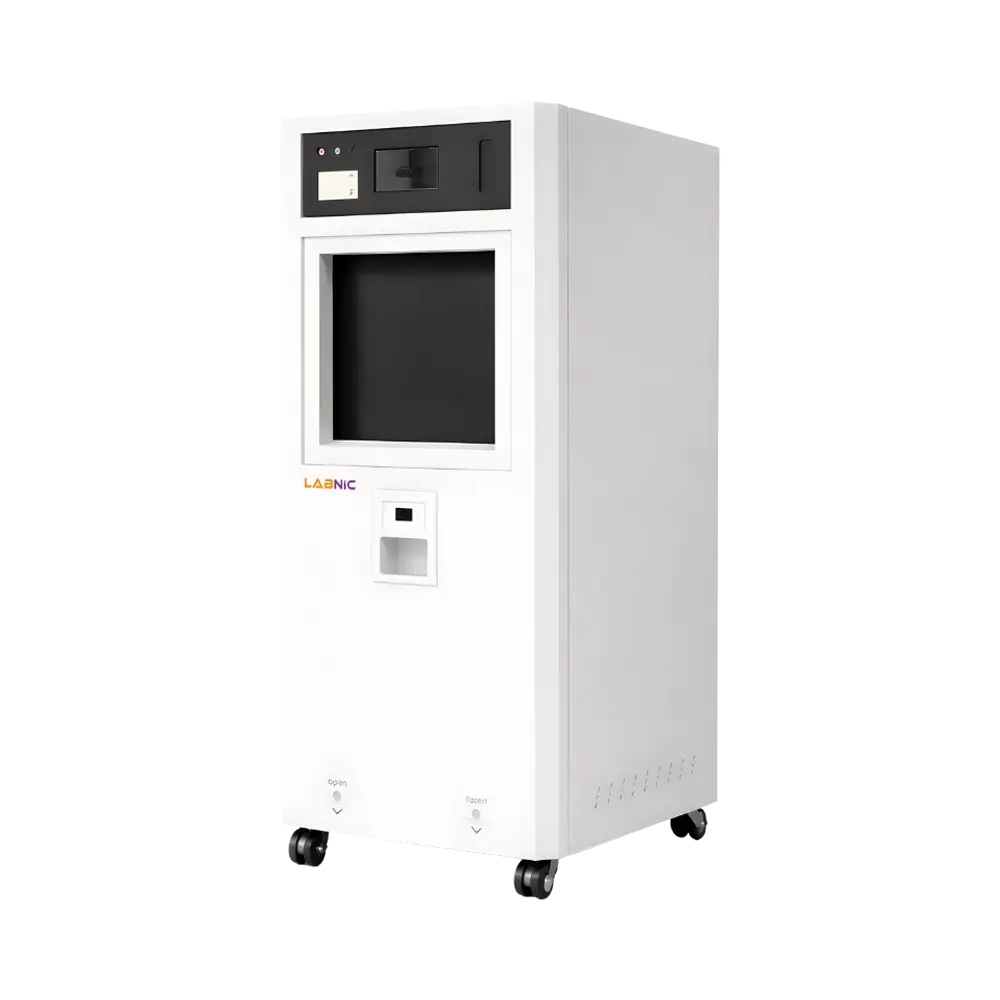

Plasma Autoclave LBN-PS110 It is designed for sterilization at 50°C ±5°C. It features a corrosion-resistant vacuum pump with a 16 m³/h evacuation rate, for efficient and high-performance vacuum generation. Equipped with an automatic real-time alarm and fault display system. Integrated with a biomonitoring system using Bacillus stearothermophilus, ensures optimal sterilization performance by verifying the effectiveness of each cycle. our plasma autoclave is ideal for hospitals, laboratories, and medical research facilities.
| Capacity | 160L |
| Sterilization Temperature | 50°C ±5°C |
| Sterilizing Agent |
Hydrogen Peroxide Plasma (58%) Cassette Type with 12 × 5 mL Capsules |
| Sterilizing Time |
Rapid: 25 min Standard: 35 min Enhanced: 55 min |
| Filling Method |
Cassette-Type Auto Injection Online Purification to >93% H₂O₂ Concentration |
| Loading Method |
Vertical Automatic Lifting Door Anti-Clamp Safety System Foot-Sensing Open/Close |
| Test Methods |
Biomonitoring Using Bacillus Stearothermophilus Incubated at 56°C for 48 Hours |
| Controller | PLC Microprocessor Controller |
| Display | 7-inch High-Resolution Color Touch Screen |
| Door Number / Type | Single Vertical Automatic Door with Safety Interlock and Foot-Sensing Open/Close |
| Printer | Built-in Micro Printer, Records Sterilization Parameters, Physical Curves, and Process Logs; Stores ≥8000 Cycles With Power-off Memory |
| Vacuum Pump System |
Rotary Vane Vacuum Pump H₂O₂ Corrosion Resistant Evacuation Rate 16 m³/h noise <65 dB, with Phase-Sequence Protector and Oil Mist Filter (Oil Recycling) |
| Alarm System | Automatic Fault Detection, Teal-Time Alarm, and Permanent Alarm Storage |
| Chamber Material | 304 Stainless Steel, 3 mm Thick (inner) and Aluminium Alloy 5052 ion Grid (3 mm) |
| Power Consumption | 4.0 KVA, Chamber Heating Power 1800 W |
| Power Supply | 380 V AC, 50/60 Hz, 3-Phase |
| Chamber Dimension | 770 × 460 × 460 mm (±1%) |
| Outer Dimension | 920 × 770 × 1760 mm (±5%) |
| Packing Dimension | 940 × 790 × 1860 mm (±5%) |
| Weight | ≈290 kg |
Plasma Autoclave LBN-PS110 is ideal for hospitals, laboratories, Central Sterile Supply Departments and medical research facilities
Plasma Autoclave LBN-PS110 is ideal for hospitals, laboratories, Central Sterile Supply Departments and medical research facilities
Most Frequently Asked Questions
1. What are Plasma Autoclaves used for?
Ans. Plasma Autoclaves are used for low-temperature sterilization of medical instruments, electronics, and laboratory equipment.
2. How do Plasma Autoclaves achieve low temperature sterilization?
Ans. Plasma Autoclaves operate using ionized gas to provide precise thermal control for consistent sterilization.
3. What cycle options are available in Plasma Autoclaves?
Ans. Plasma Autoclaves offer customizable sterilization cycles to support versatile decontamination requirements.
4. How do Plasma Autoclaves ensure efficient monitoring during operation?
Ans. Plasma Autoclaves include real time monitoring systems to track sterilization performance throughout each cycle.
5. How do Plasma Autoclaves enhance sterilization effectiveness?
Ans. Plasma Autoclaves operate in dual stages combining plasma and steam for thorough disinfection.
6. What benefits do Plasma Autoclaves offer for sustainable operation?
Ans. Plasma Autoclaves use advanced technology to deliver reliable, energy saving, and eco friendly purification.
