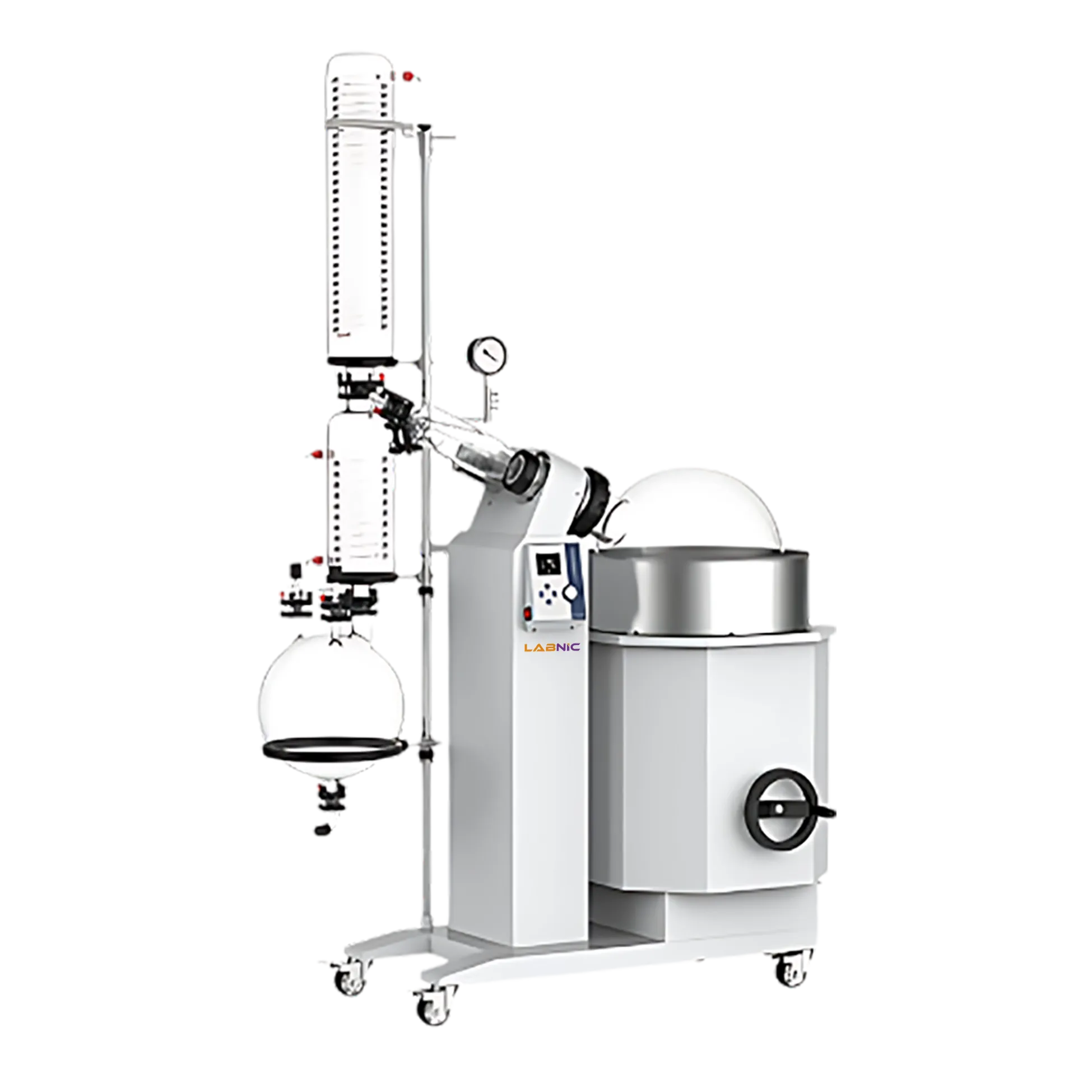

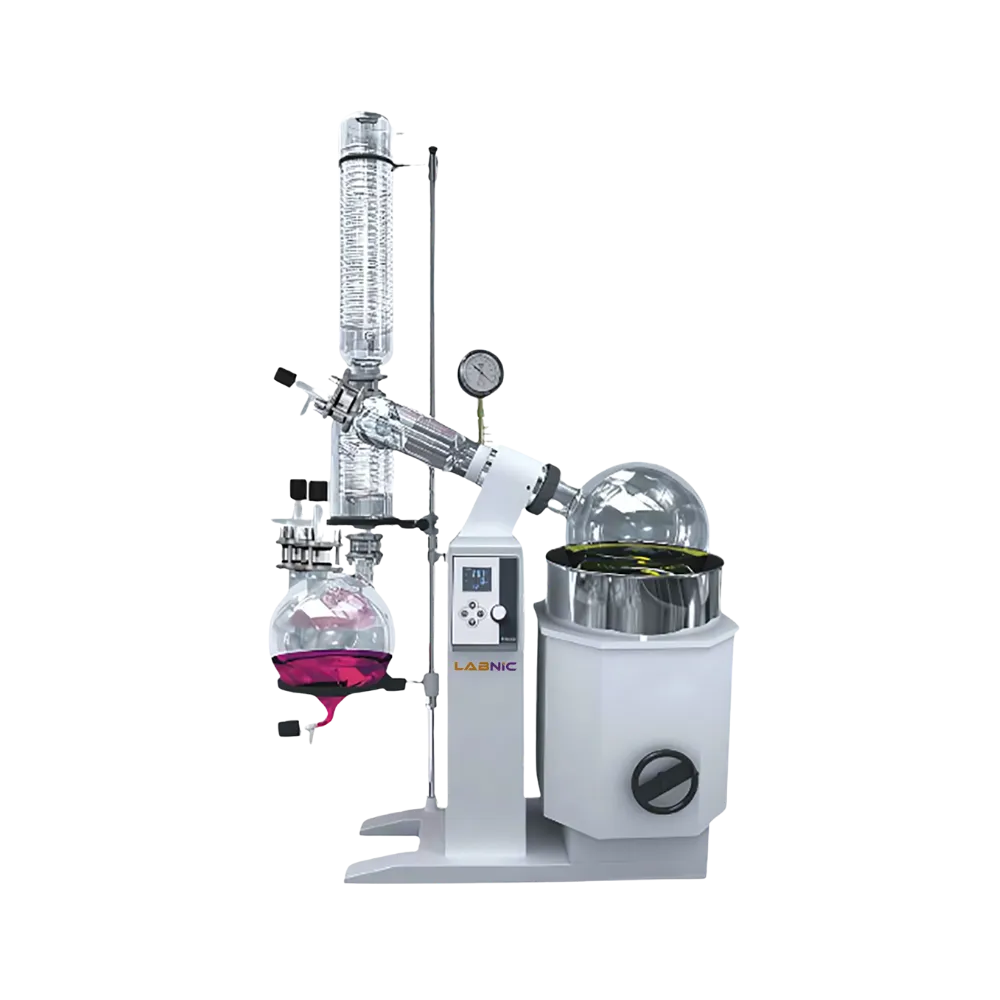

Rotary Evaporator LBN-RE134 is a must-have evaporator that meets the basic requirements of economic evaporation and is built to high quality standards. It has a step-less speed control range of 20 to 110 rpm and a motorized lift for precise glassware positioning. The innovative 50 L bath design allows for rapid heating, allowing for faster experiments. The bath is designed to be user-friendly while maintaining the highest level of safety and can reach 99°C. A digital display is included in this equipment for monitoring and controlling rotation speed parameters.
| Rotary Flask Capacity | 50 L |
| Receiving Flask Capacity | 20 L |
| Water Bath Capacity | 77 L |
| Bath Size | ɸ550×320 mm |
| Opening diameter | Flange ɸ 125 mm |
| Evaporating Speed |
Water: 9 L/H Alcohol: 24.5 L/H |
| Rotating Speed | 20 to 110 rpm |
| Lifting Distance | 0 to 180 mm |
| Lifting Function | Motorized lift |
| Vacuum | ≤ 399.9 Pa |
| Temperature Range | RT to 99°C |
| Working Environment Temperature | 5°C to 35°C |
| Condenser Cooling Surface |
Main Condenser: 11500 cm² Auxiliary Condenser: 4000 cm² |
| Condenser Type | Vertical |
| Speed Control | Step less control |
| Display | Digital display |
| Heating Power | 6.3 kW |
| Motor Power | 250 W |
| Dimension (W×D×H) | 1345×770×2140 mm |
| Package Dimension (W×D×H) | 117×70×153 cm |
| Weight | 140 Kg |
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
Rotary Evaporator LBN-RE134 is a must-have evaporator that meets the basic requirements of economic evaporation and is built to high quality standards. It has a step-less speed control range of 20 to 110 rpm and a motorized lift for precise glassware positioning. The innovative 50 L bath design allows for rapid heating, allowing for faster experiments. The bath is designed to be user-friendly while maintaining the highest level of safety and can reach 99°C. A digital display is included in this equipment for monitoring and controlling rotation speed parameters.
