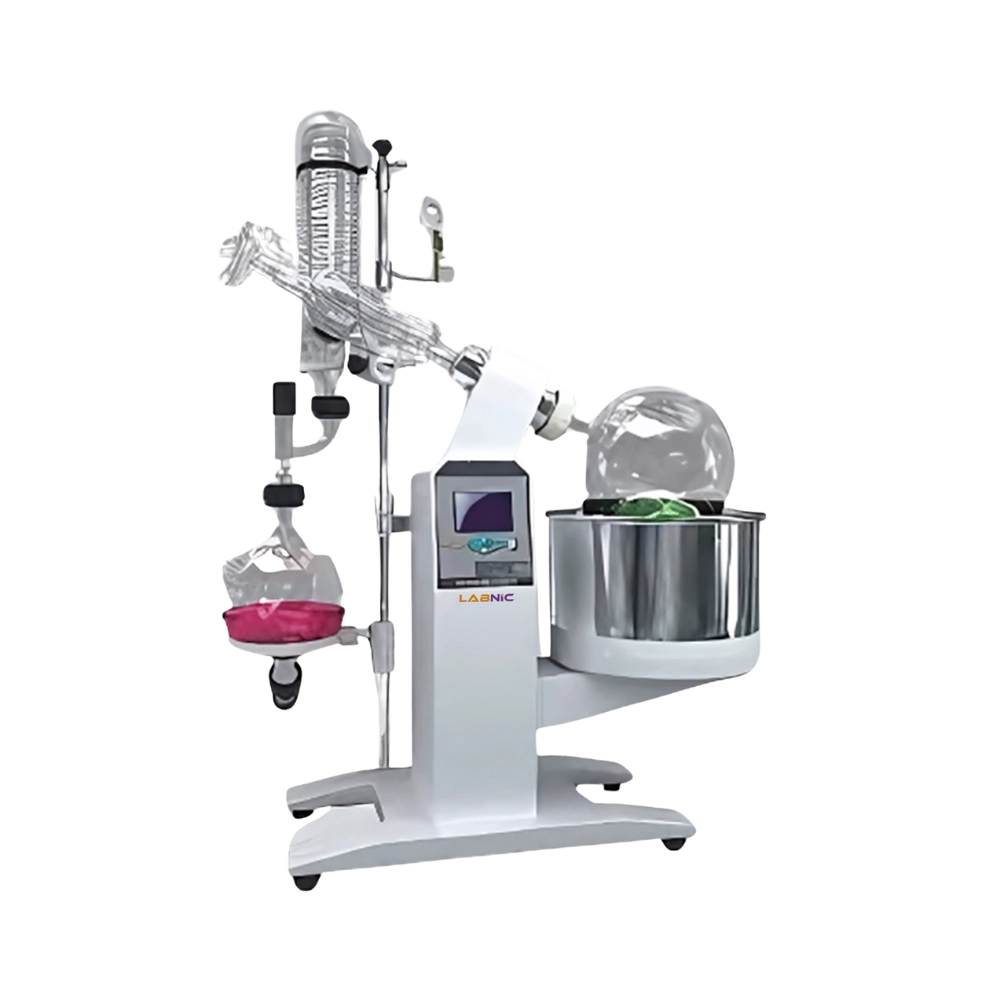

Rotary Evaporator LBN-RE133 is a must-have evaporator that meets the basic requirements of economic evaporation and is built to high quality standards. It has a step-less speed control range of 20 to 130 rpm and a motorized lift for precise glassware positioning. The innovative 20 L bath design allows for rapid heating, allowing for faster experiments. The bath is designed to be user-friendly while maintaining the highest level of safety and can reach 99°C. A digital display is included in this equipment for monitoring and controlling rotation speed parameters.
Rotary Flask Capacity | 20 L |
Receiving Flask Capacity | 10 L |
Water Bath Capacity | 41 L |
Bath Size | ɸ450×260 mm |
Opening diameter | Flange ɸ 125 mm |
Evaporating Speed | Water: 5 L/H Alcohol: 14.3 L/H |
Rotating Speed | 20 to 130 rpm |
Lifting Distance | 0 to 190 mm |
Lifting Function | Motorized lift |
Vacuum | ≤ 399.9 Pa |
Temperature Range | RT to 99°C |
Working Environment Temperature | 5°C to 35°C |
Condenser Cooling Surface | Main Condenser: 9480 cm² Auxiliary Condenser: 3580 cm² |
Condenser Type | Vertical |
Speed Control | Step less control |
Display | Digital display |
Heating Power | 6.3 kW |
Motor Power | 250 W |
Dimension (W×D×H) | 1195×635×2070 mm |
Package Dimension (W×D×H) | 104×62×120 cm |
Weight | 90 Kg |
Borosilicate glass, which is resistant to high temperatures and corrosion
Continuous feeding is convenient for users
Vacuum pressure gauge displays real time vacuum degree
Easy and smooth operation of lifting and moving
Separation of bath and mainframe makes configuration flexible
High rated condenser with exceptional cooling properties
Heats up quickly because of optimized bath volumes
Easy and jolt-free raising and lowering of rotary evaporator
Adjustable final position recognition to protect operator and sample against breaking
Evaporating flask with an ejector is very convenient to remove
It is an indispensable instrument for evaporation, concentration, crystallization, separation and solvent recovery in research and production of medicine, chemical and biological products etc.
Download Catalog for Rotary Evaporator LBN-RE133
DownloadLabnic Rotary Evaporator is an essential laboratory instrument for efficient solvent removal. They consist of a rotating flask with a vacuum system for controlled evaporation. These devices operate under reduced pressure to lower boiling point of substances. Their purpose is to prevent sample degradation while ensuring high-quality recovery. Our Rotary Evaporator machine is suitable for research analysis and production processes across multiple industries.
Rotary Flask Capacity : 0.5 L to 2 L
Receiving Flask Capacity : 1 L
Water Bath Capacity : 6.5 L
Bath Size : ɸ254×130 mm
Rotary Flask Capacity : 0.5 L to 2 L
Receiving Flask Capacity : 1 L
Water Bath Capacity : 6.5 L
Bath Size : ɸ254×130 mm
Water Bath Capacity : 5 L
Rotating Speed : 20 to 200 rpm
Lifting Distance : 110 mm + 100 mm
Lifting Function : Sliding Manual Lift + Auxiliary
Rotary Flask Capacity : 5 L
Receiving Flask Capacity : 3 L
Water Bath Capacity : 12 L
Bath Size : ɸ300×170 mm
Rotary Flask Capacity : 10 L
Receiving Flask Capacity : 5 L
Water Bath Capacity : 21 L
Bath Size : ɸ350×220 mm
Rotary Flask Capacity : 50 L
Receiving Flask Capacity : 20 L
Water Bath Capacity : 77 L
Bath Size : ɸ550×320 mm
Rotating Flask : 5L
Optional Rotating Flask : 3L, 2L, 1L
Receiving Flask : 3L
Lifting Type : Automatic lifting
Down mode : Automatic lifting
The speed range : 20 to 110(rpm)
Temperature range : (water )RT to 98(℃)
condenser : Vertical type, double serpentine tube
Speed : 3 to 120, rpm digital display
Speed adjust : Frequency conversion
Bath : Heating power: 6kw/380v RT to 99℃ (water)
Rotation Bottle : 50LBig flange mouth (¢inner100mm)
Down mode : Automatic lifting
The speed range : 20 to 110 rpm
Temperature range : (water) RT to 98℃
Condenser : Vertical type, double serpentine tube
Rotating Flask : 5L
Optional Rotating Flask : 3L, 2L, 1L
Receiving Flask : 3L
Lifting Type : Automatic lifting
Bath Capacity : 5 L
Speed range : 20-280 rpm
Motor Type : Brushless DC motor
Heat Temperature range : RT ~180°C
