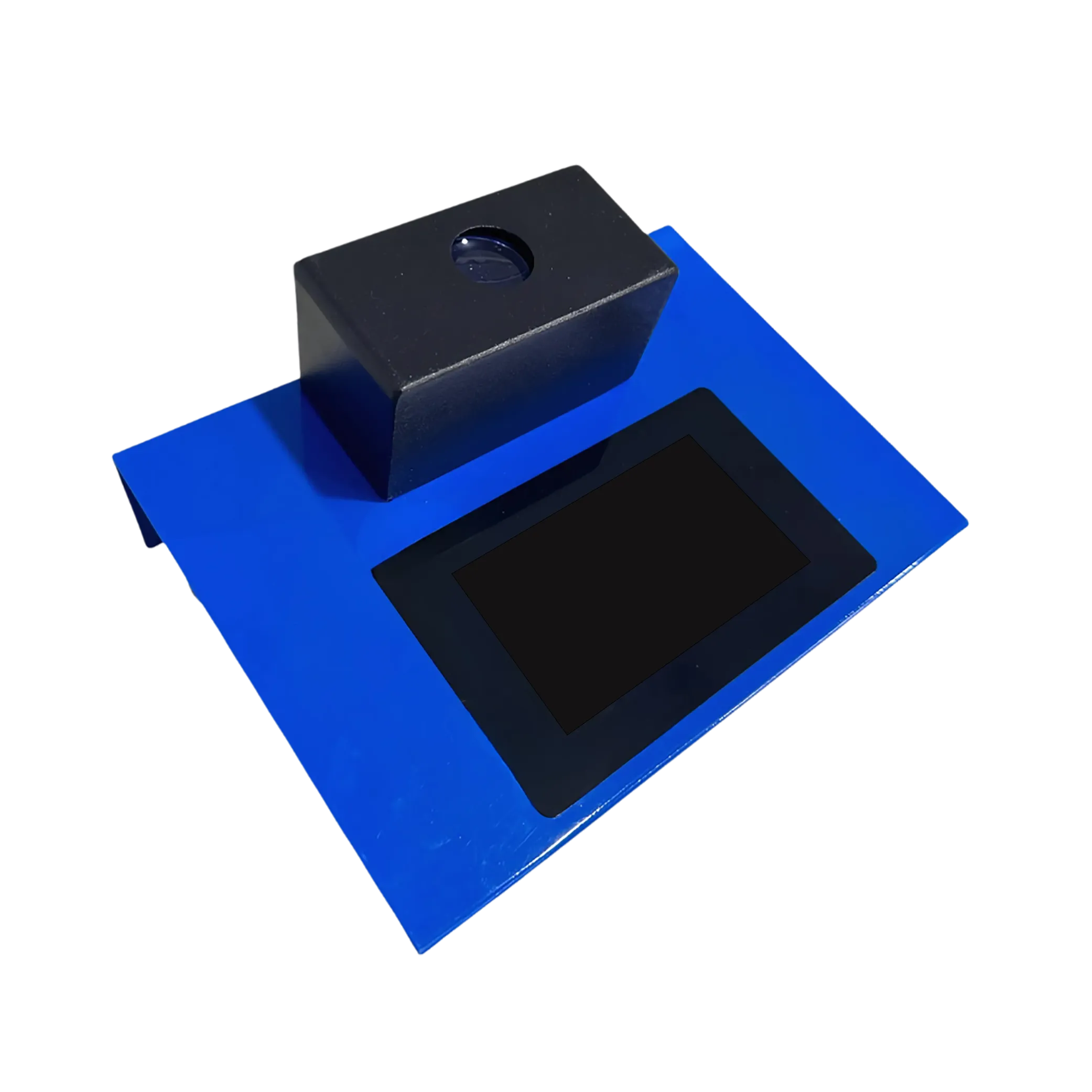

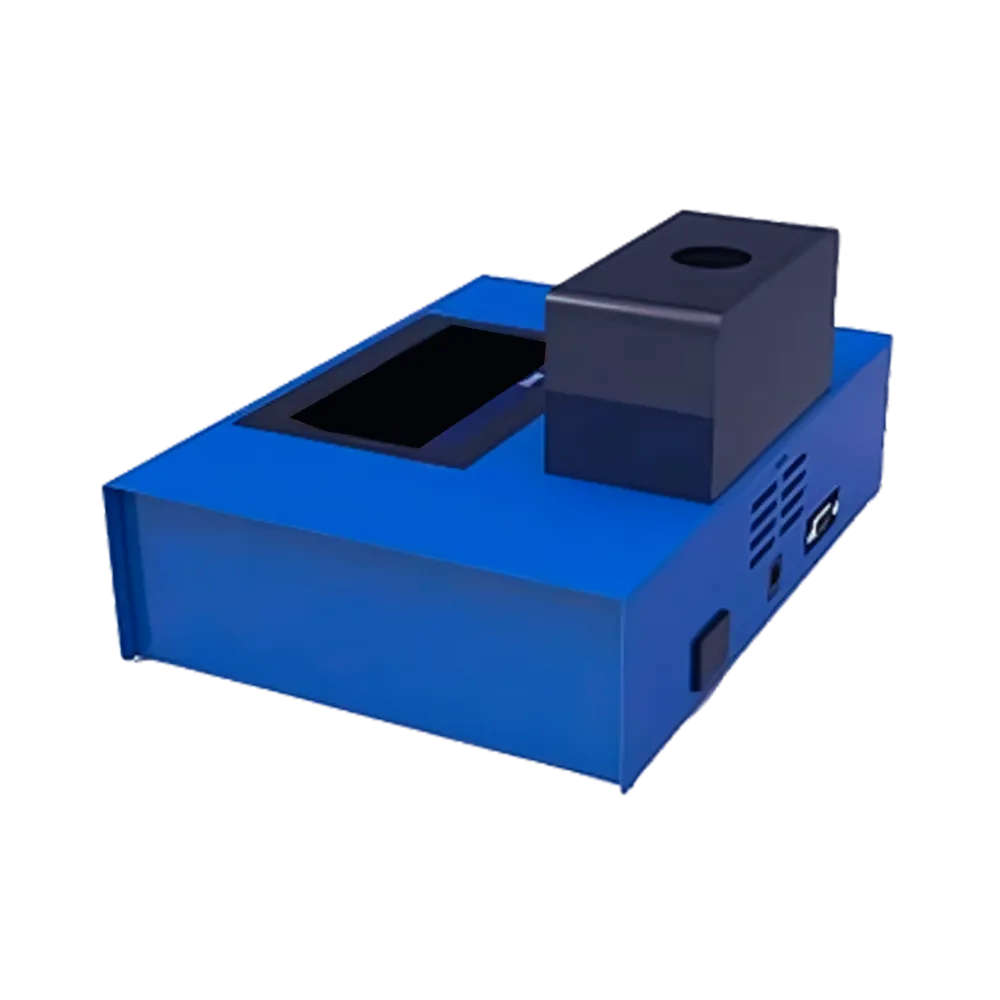

Micro Melting Point Tester LBN-MP161 accurately determines the melting point of small samples within a temperature range of room temperature to 400°C. It processes three samples simultaneously, enhancing efficiency in laboratory analysis. Integrated with a color touch screen, it ensures user-friendly operation and precise control. Equipped with an adjustable heating rate from 0.1 to 10°C per minute, and an automatic cooling fan for rapid regulation. Our Micro Melting Point Tester is ideal for the chemical industry, medical research, and the production of food, medicines, and more.
| Temperature Range | RT to 400℃ |
| Cooling Method | Fan Cooling |
| Sample Cell | Capillary Tube |
| Sample Tube |
Outer Diameter : φ1.6mm Inner Diameter : φ1.2mm |
| Resolution | 0.1℃ |
| Temperature Increase Speed | 0.1℃ to 10℃ (100 Grades Steplessly Adjustable) |
| Temperature Control Method | PID Precise Temperature Control, Fully Enclosed Furnace Body |
| Accuracy |
±0.4℃ ±0.7°C (Greater Than 250°C) |
| Repeatability | Melting Point Repeatability at 0.1℃/Min ±0.3℃ |
| Display | TFT High-Definition True Color Screen |
| Output | RS 232 |
| Power Consumption | 100V |
| Power Supply | 100V to 240V 50HZ to 60HZ |
| Dimensions | 250mm × 250mm × 150mm |
| Packing Dimensions | 280mm × 280mm × 190mm |
| Gross Weight | 2.52kg |
Micro Melting Point Tester LBN-MP161 has application in the chemical industry and medical research also used for the production of food, medicine, spices, dyes, pharmaceuticals and other organic crystal substances.
Micro Melting Point Tester LBN-MP161 has application in the chemical industry and medical research also used for the production of food, medicine, spices, dyes, pharmaceuticals and other organic crystal substances.
Most Frequently Asked Questions
1. What are Micro Melting Point Testers used for?
Ans. Micro Melting Point Testers are used to determine the melting point of small sample quantities accurately.
2. How do Micro Melting Point Testers ensure precise measurement?
Ans. Micro Melting Point Testers offer high accuracy for efficient and reliable melting point analysis.
3. What display features are included in Micro Melting Point Testers?
Ans. Micro Melting Point Testers feature digital displays for clear and easy reading of temperature values.
4. What optical system is used in Micro Melting Point Testers?
Ans. Micro Melting Point Testers are equipped with high-definition optical lens magnification systems for enhanced observation.
5. How are Micro Melting Point Testers used in quality evaluation?
Ans. Micro Melting Point Testers support purity determination of drugs and quality control in food and industrial applications.
6. Where are Micro Melting Point Testers commonly used?
Ans. Micro Melting Point Testers are commonly used in pharmaceutical industries, research laboratories, and food testing facilities.
