Download Catalog

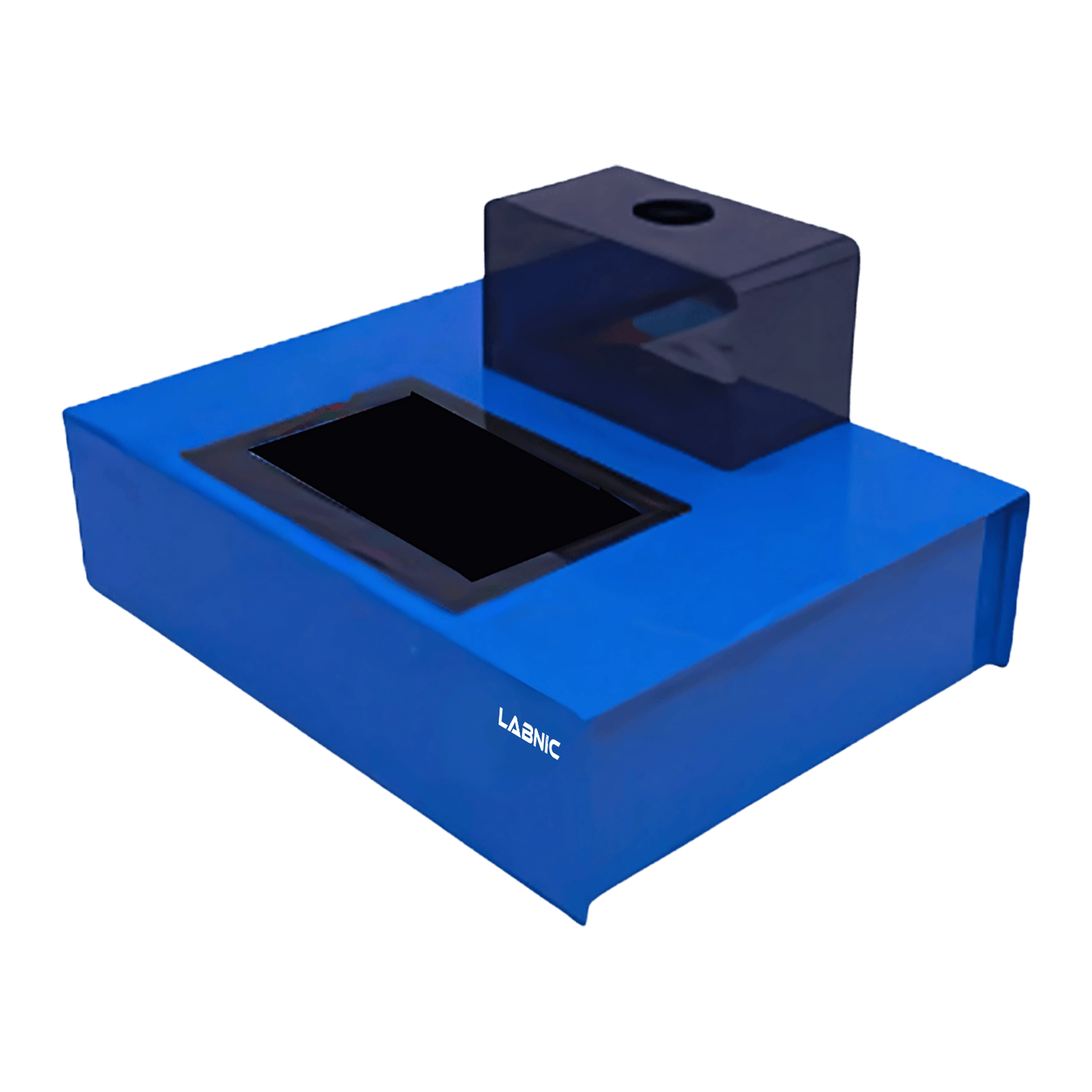

Micro Melting Point Tester LBN-MP161 accurately determines the melting point of small samples within a temperature range of room temperature to 400°C. It processes three samples simultaneously, enhancing efficiency in laboratory analysis. Integrated with a color touch screen, it ensures user-friendly operation and precise control. Equipped with an adjustable heating rate from 0.1 to 10°C per minute, and an automatic cooling fan for rapid regulation. Our Micro Melting Point Tester is ideal for the chemical industry, medical research, and the production of food, medicines, and more.
| Temperature Range | RT to 400℃ |
|---|---|
| Cooling Method | Fan Cooling |
| Sample Cell | Capillary Tube |
| Sample Tube | Outer Diameter : φ1.6mm<br>Inner Diameter : φ1.2mm |
| Resolution | 0.1℃ |
| Temperature Increase Speed | 0.1℃ to 10℃ (100 Grades Steplessly Adjustable) |
| Temperature Control Method | PID Precise Temperature Control, Fully Enclosed Furnace Body |
| Accuracy | ±0.4℃<br>±0.7°C (Greater Than 250°C) |
| Repeatability | Melting Point Repeatability at 0.1℃/Min ±0.3℃ |
| Display | TFT High-Definition True Color Screen |
| Output | RS 232 |
| Power Consumption | 100V |
| Power Supply | 100V to 240V 50HZ to 60HZ |
| Dimensions | 250mm × 250mm × 150mm |
| Packing Dimensions | 280mm × 280mm × 190mm |
| Gross Weight | 2.52kg |
Platinum Temperature Sensor
Intuitive User-Friendly Interface
Ultra-Fast Rapid Heating
Clear Optical Observation
Precise Calibration Function
Highly Energy-Efficient Operation
Advanced Dual-Channel Observation
Micro Melting Point Tester LBN-MP161 has application in the chemical industry and medical research also used for the production of food, medicine, spices, dyes, pharmaceuticals and other organic crystal substances.
