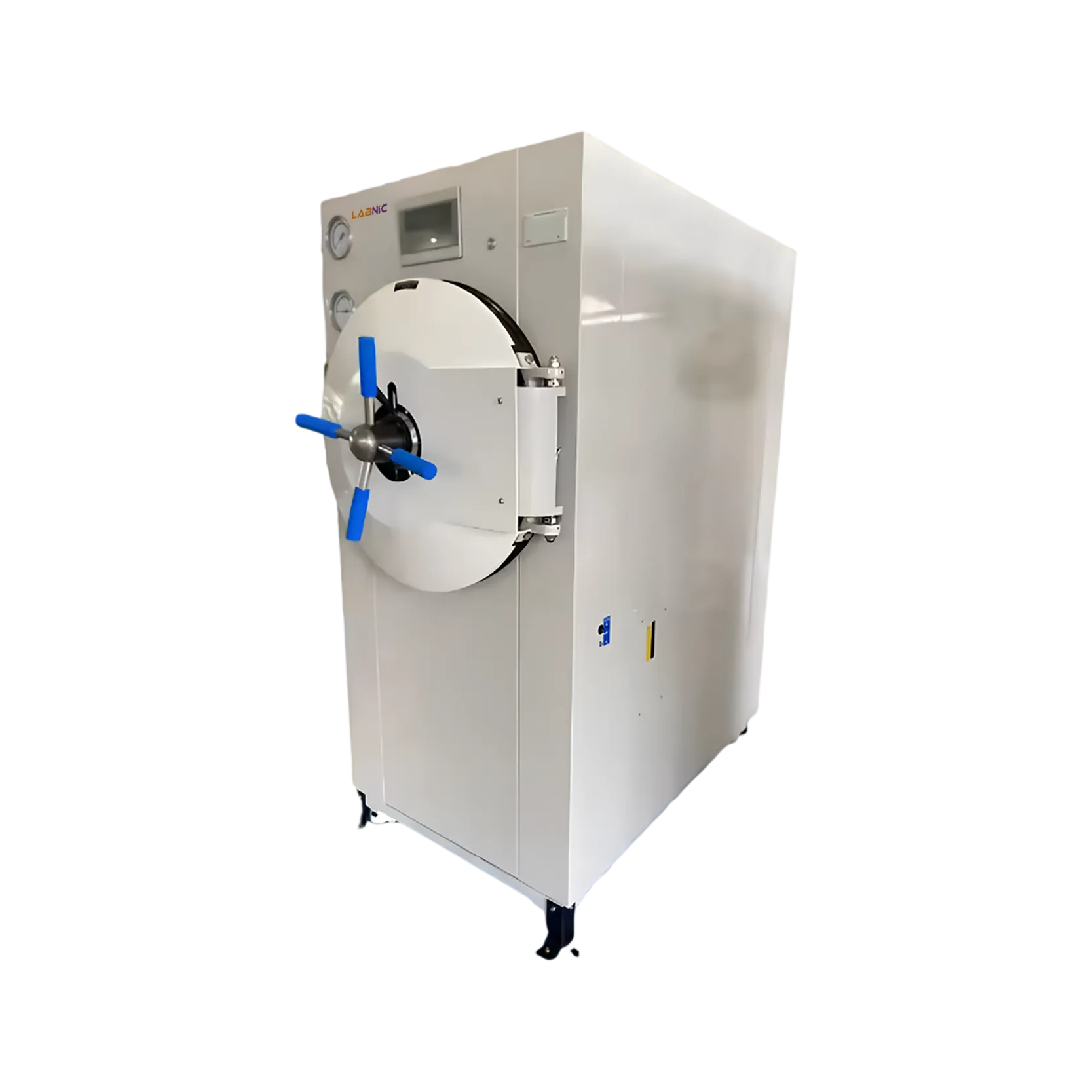

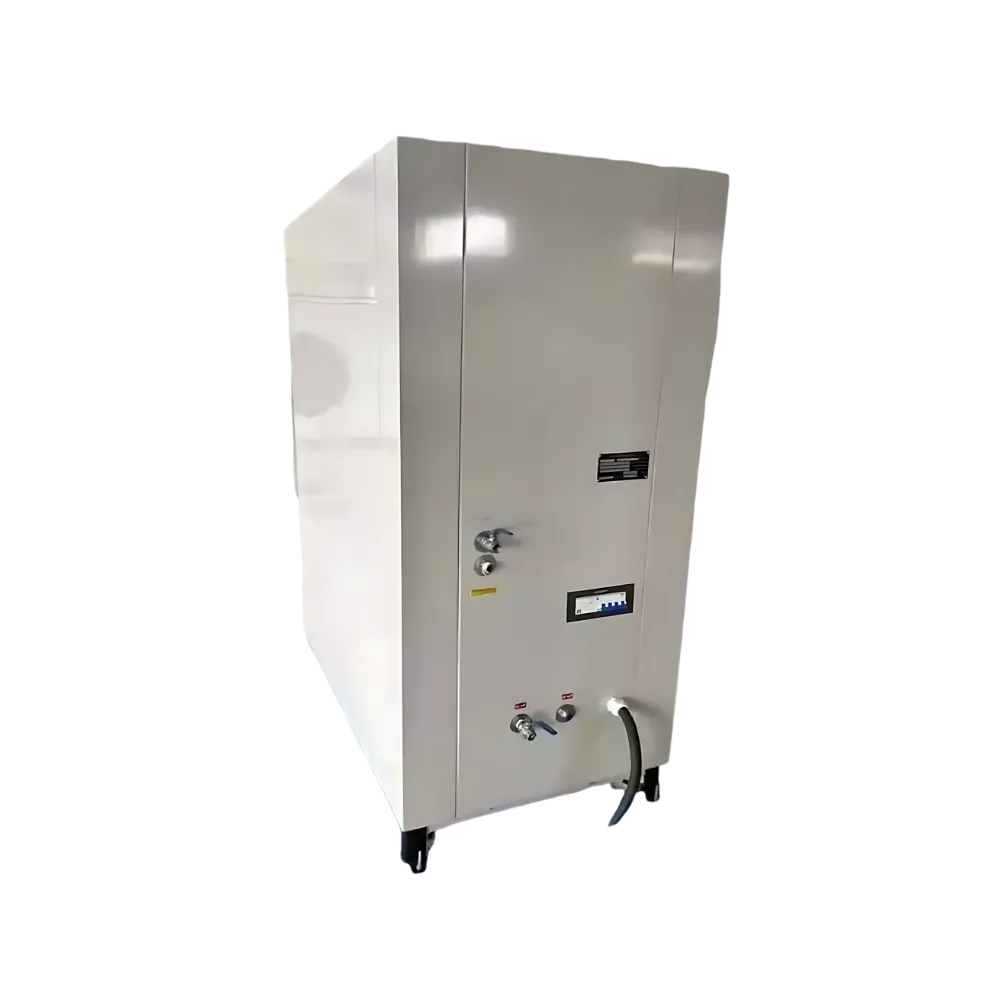

Rectangular Horizontal Autoclave LBN-RH152

Rectangular Horizontal Autoclave LBN-RH152

Rectangular Horizontal Autoclave LBN-RH152 is a floor-standing round chamber front loading steam autoclave. It is a compact and powerful autoclave with a 150 L chamber volume that sterilizes with pressure saturated steam at temperatures ranging from 115° to 134°C and a working pressure of 0.22MPa. The sterilizing chamber is made of corrosion-resistant stainless steel with an easy-to-clean jacket for deep drying, and it operates via a robust and high-resolution screen that offers fully automatic logging with an alert system via PC.

Sterilizing Chamber Volume 150 L
Maximum Temperature Range 134°C
Working Temperature 115° - 134°C
Working Pressure 0.22MPa
Sterilization Time 0 – 99 min
Drying Time 0 – 99 min
Vacuum Limit -0.08MPa
Heat Average ≤± 2°C
Power 10 KW
Power Supply AC 380V, 50Hz
Chamber Dimension (ɸ×D) 440×1000 mm
Dimension (L×W×H) 1400×660×1640 mm
Package Dimension (L×W×H) 1560×820×1820 mm
Net Weight 350 Kg
Gross Weight 440 Kg

Robust and high-resolution screen with intuitive operation

Water quality sensor

Improved air removal by suppressing air to bottom

After cooling steam is readily available for next sterilization run

Automatic microcomputer controlled sterilizing process

Easy to operate without supervision

Equipped with a set of movable sterilizing plates

Consists of sterilizing chamber and a jacket with deep drying function

With over-temperature and over-pressure automatic protection devices

Safety interlock system

Safety valve with automatic pressure relief protection

Outside chamber is made of carbon steel and inner chamber is made of corrosion resistant stainless steel material

Machine cannot start if the required water level is not reached

It is ideal for material tests like pressure vessel test, quality control, and class B program cycles. As well for food preservation, culture media preparation, sterilization of waste in liquids, bottles, instruments, porous materials, synthetic materials and glass ware in hospitals, food industries, clinical laboratories, medical institutes, science and research organizations etc.

Download Catalog for Rectangular Horizontal Autoclave LBN-RH152

Download
Rectangular Horizontal Autoclave LBN-RH151

Rectangular Horizontal Autoclave LBN-RH151

Sterilizing Chamber Volume : 100 L

Maximum Temperature Range : 134°C

Working Temperature : 115° - 134°C

Working Pressure : 0.22MPa

Rectangular Horizontal Autoclave LBN-RH153

Rectangular Horizontal Autoclave LBN-RH153

Sterilizing Chamber Volume : 200 L

Maximum Temperature Range : 134°C

Working Temperature : 115° - 134°C

Working Pressure : 0.22MPa

Rectangular Horizontal Autoclave LBN-RH154
Rectangular Horizontal Autoclave LBN-RH154

Sterilizing Chamber Volume : 280 L

Maximum Temperature Range : 134°C

Working Temperature : 115° - 134°C

Working Pressure : 0.22MPa

Vertical Autoclave LBN-VA151

Vertical Autoclave LBN-VA151

Volume : 29 Liters

Maximum Working / Design Temperature : 135° / 139°C

Maximum Working / Design Pressure : 0.22 / 0.25 MPa

Timer Range : 4 – 120 min

Vertical Autoclave LBN-VA152
Vertical Autoclave LBN-VA152

Volume : 50 liters

Maximum Working / Design Temperature : 135° / 139°C

Maximum Working / Design Pressure : 0.22 / 0.25 MPa

Timer Range : 4 – 120 min

Vertical Autoclave LBN-VA154
Vertical Autoclave LBN-VA154

Volume : 100 liters

Maximum Working / Design Temperature : 135° / 139°C

Maximum Working / Design Pressure : 0.22 / 0.25 MPa

Timer Range : 4 – 120 min

Vertical Autoclave LBN-VA153

Vertical Autoclave LBN-VA153

Volume : 75 liters

Maximum Working / Design Temperature : 135° / 139°C

Maximum Working / Design Pressure : 0.22 / 0.25 MPa

Timer Range : 4 – 120 min

Horizontal Autoclave LBN-CH153
Horizontal Autoclave LBN-CH153

Sterilizing Chamber Volume : 280 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° - 134°C

Working Pressure : 0.22MPa

Horizontal Autoclave LBN-CH154
Horizontal Autoclave LBN-CH154

Sterilizing Chamber Volume : 400 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° - 134°C

Working Pressure : 0.22MPa

Horizontal Autoclave LBN-CH155

Horizontal Autoclave LBN-CH155

Sterilizing Chamber Volume : 500 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° - 134°C

Working Pressure : 0.22MPa

Horizontal Autoclave LBN-CH152

Horizontal Autoclave LBN-CH152

Sterilizing Chamber Volume : 200 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° - 134°C

Working Pressure : 0.22MPa

Horizontal Autoclave LBN-CH151
Horizontal Autoclave LBN-CH151

Sterilizing Chamber Volume : 150 L

Working Temperature : 134°C

Adjustable Temperature Range : 40° - 134°C

Working Pressure : 0.22MPa
