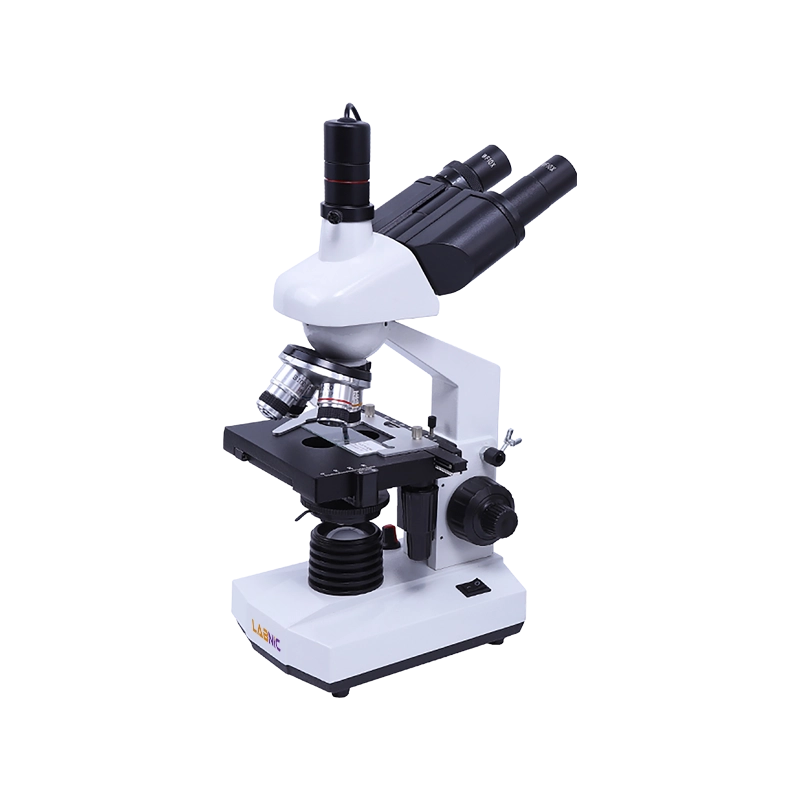

Digital Microscope LBN-DM143 has an achromatic optical system with a magnification range of 40x-1600x. It features an outward quadruple nosepiece and an abbe-iris diaphragm 1.25 N. A condenser. The microscope is equipped with a C-mounted 5-megapixel camera and has a USB output, as well as an LED light source with dimmable brightness.
| Optical System | Achromatic |
| Standard Magnification | 40x-1600x |
| Head Type | Siedentopf Trinocular |
| Inclination | 30° |
| Rotation | Head Rotate 360° |
| Light Path | E50:P50 |
| Eyepiece | WF10x, 2 pc, WF10x, 2 pc |
| Diameter | 23.2mm |
| Nosepiece | Outward 4 holes |
| Objective | Achromatic |
| Magnification | 4x, 10x, 40x (s), 100x (o, s) |
| Stage | 2 Layer Mechanical |
| Size | 115 × 125mm |
| Focusing Range | 13mm |
| Condenser | Abbe + iris diaphragm 1.25 N. A |
| Light Source Type | LED |
| Transmit Light | LED Brightness Adjustable |
| Video Adapter | C-Mount 0.3x |
| Pixel | 5.0MP |
| Mounting | C-Mount |
| Output | USB |
| System Support | Win7,10, 11, Android, iOS, iMac |
| Power Supply Type | DC USB Adapter |
| Weight | 7.5Kg |
It consists of an achromatic optical system
Siedentopf trinocular head type
Quadruple outward nosepiece
Coaxial coarse and fine focusing type with safety stop screw
Abbe + Iris 1.25 N. A condenser with spiral up/down and filter holder
LEDs are used as light sources
A 5.0-megapixel camera is used, USB as output
Digital Microscope is used for analyzing samples of blood cells and tissues culture in the fields of medical research institutes, biological laboratories, metallurgy, health clinics, etc.
Download Catalog for Digital Microscope LBN-DM143
