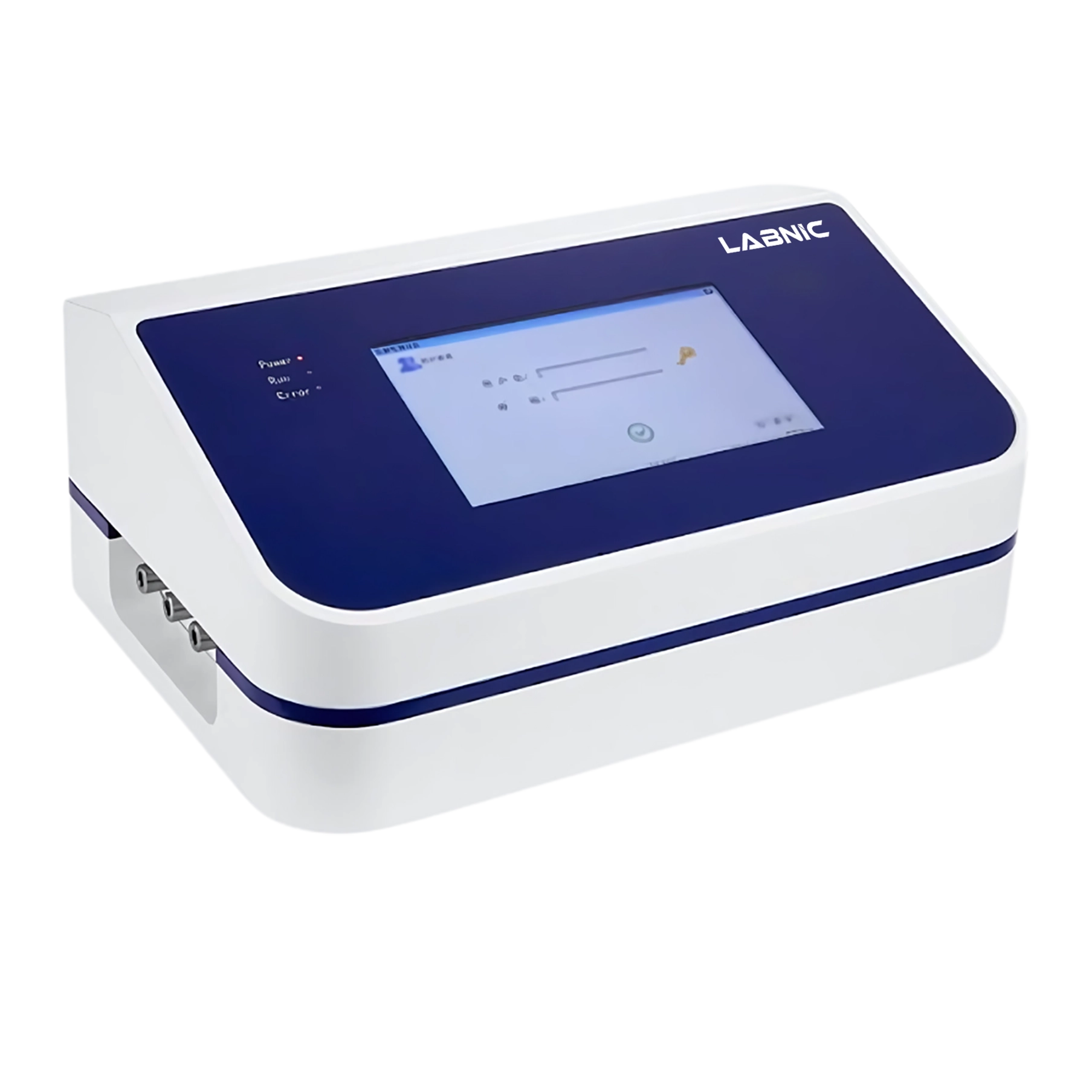

Filter Integrity Tester LBN-FIT121 is designed for precise measurement of integrity with a pressure range of 100 to 10000 mbar. It supports bubble point with diffusion tests for both hydrophobic and hydrophilic membrane filters. Equipped with a 10-inch touchscreen interface and a built-in printer for instant result output. Integrated with automatic self-diagnostics and secure user-level access for reliable and safe operation. Our Filter Integrity Tester is ideal for pharmaceutical, biotechnology, food beverage industry and environmental protection industry.
| Operation Pressure | 100 to 10000 mbar (150 psi) |
|---|---|
| Operation Condition | Ambient Temperature: +5℃ to +40℃ |
| Relative Humidity | 10 to 80% |
| Test Accuracy | Upstream Volume Test ± 4%<br> Bubble Point Test ± 50 mbar<br> Diffusion Flow Test ± 4%<br> Water Immersion Test ± 0.01 ml |
| Test Scope | BP 100 to 8000 mbar<br>DF 1 to 900 ml/min<br>WI 0.01 to 100 ml/min |
| Audit Trail | Exportable and Irreversible Record Keeping |
| Audit Trail Record Storage | ≥ 5 years |
| Reservation Solution (programs) | 1000 sets |
| Dust and Splash Level | IP54 certified |
| Print Function | Built-in printer, can control on PC, subject selection available |
| Historical Record Storage | 300,000 sets |
| Operating System | Linux system |
| Display Screen | 10-inch high-definition color touchscreen |
| Serial Connection | USB, RS232, wireless data export and integration supported |
| Power Consumption | 120W |
| Power Supply | 100 to 240 VAC 50HZ |
| Dimension | 480×300×190mm |
| Weight | 10kg |
High Accuracy Pressure Sensor
IP54 Splashproof and Dustproof Design
1000 Programmable Test Records
USB and Ethernet Connectivity
12 Core Cartridge Testing Capability
10 Year Data Retention Durability
USB, RS232, and Wireless Ports
Voice Prompt Guidance
Multi-Language Support
Filter Integrity Tester LBN-FIT121 ensures accurate readings, spectral scanning and quantitative analysis, making it ideal for testing symmetric and asymmetric membranes, needle filters, and capsule filters in research, pharmaceutical, biotechnology, food beverage industry and environmental protection industry. laboratory validation applications.
