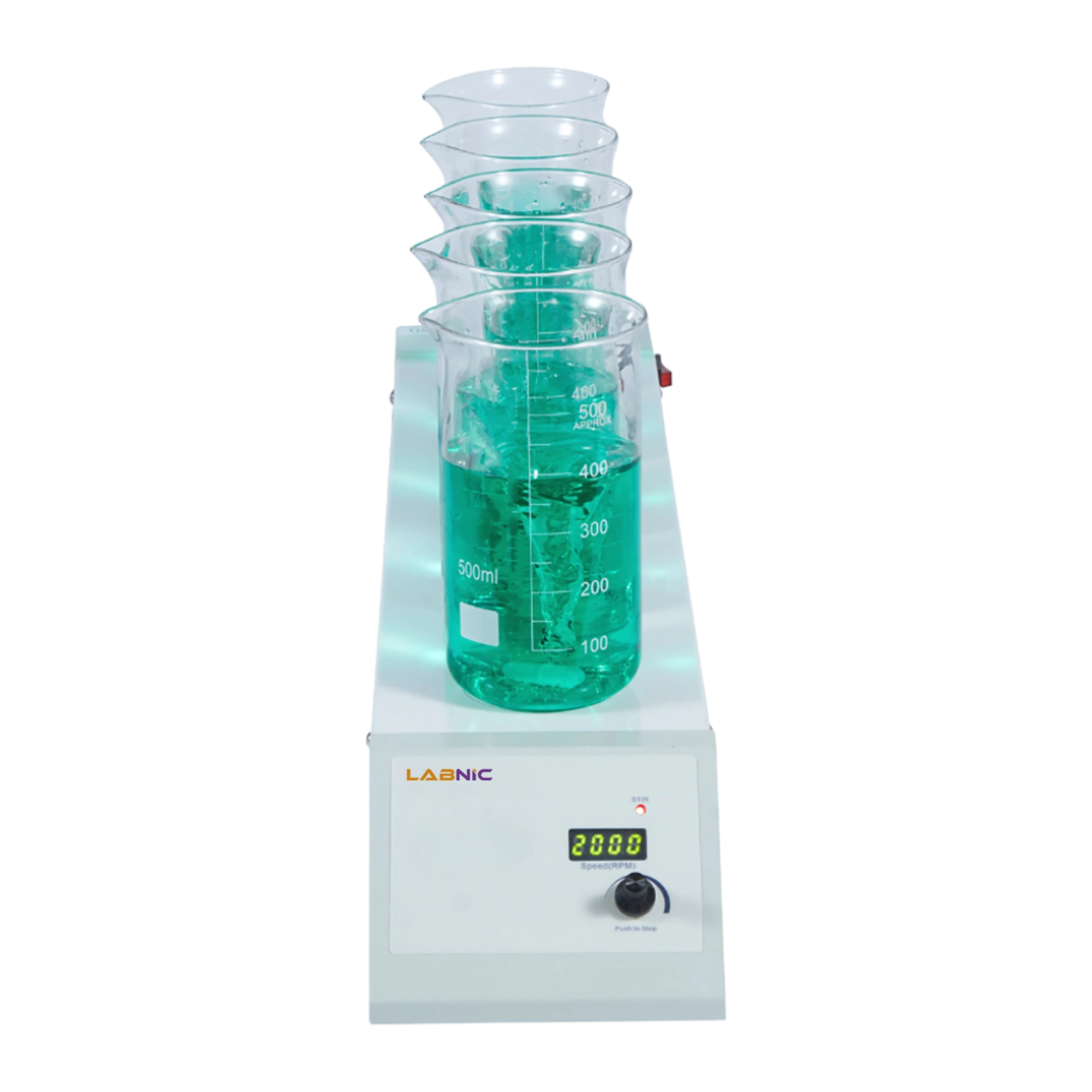

Multi-Position Magnetic Stirrer LBN-MM181 features five stirring points for simultaneous sample processing. It operates at a speed range of 100 to 2000rpm, ensuring efficient mixing. Equipped with a maximum stirring capacity of 1L per station. Integrated with precise control settings for consistent and reliable performance. Our Multi-Position Magnetic Stirrer is ideal for laboratories handling chemical, biological, and research applications.
| Number of Stirring Positions | 5 |
|---|---|
| Maximum Stirring Quantity per Position | 1L (H2O) |
| Speed Range | 100 to 2000rpm |
| Speed Control | 1rpm/step |
| Stirring Position Distance | 100mm |
| Stirring Bar Length | 25 to 35mm |
| Plate Material | Ceramic Coated Stainless Steel |
| Chemical Resistant | Yes |
| Operation Temperature | 5 to 40℃ |
| Operation Relative Humidity | 80% |
| Protection Class According to DIN EN 60529 | IP42 |
| Power Supply | 100 to 240 V |
| Frequency | 50/60Hz |
| Power Consumption | 30W |
| Fuse | 2x T4A 250V |
| Plate Dimensions | 130×500mm |
| Dimensions (L×W×H) | 645×135×84mm |
| Weight | 4.6 kg |
Digital display
Knob control system
Ceramic coated stainless-steel plate
Durable design
Chemical resistant plate
Multi-Position Magnetic Stirrer LBN-MM181 is essential for laboratories conducting simultaneous sample mixing in chemical synthesis, biological research, and analytical testing.
