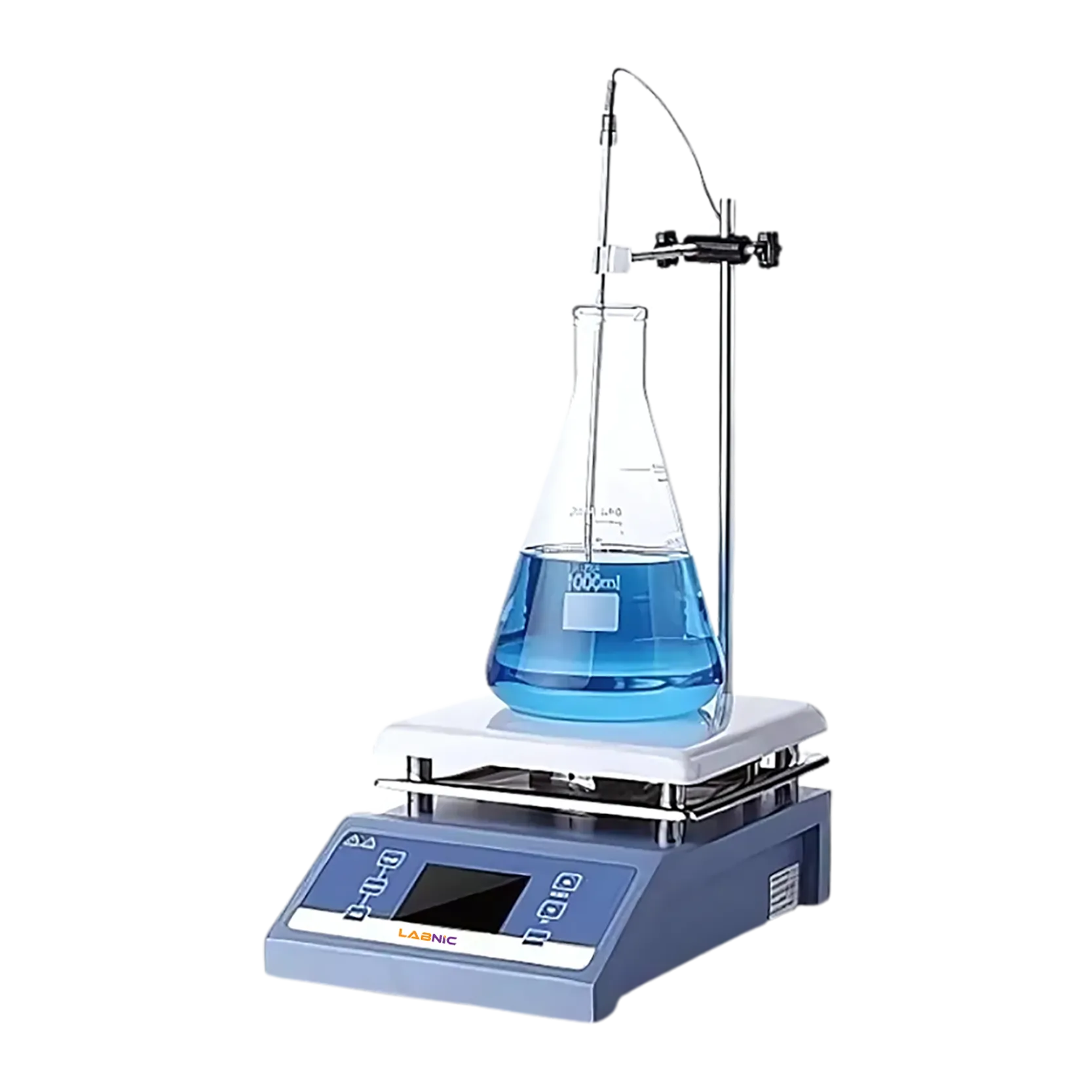

Hot Plate Magnetic Stirrer LBN-HS155 is a uniquely designed stirrer with a temperature probe working at a temperature range of 0 to 350 °C. It has a maximum stirring capacity of 5 L with a speed range of 200 to 2000 rpm. Equipped with a corrosion-free ceramic plate for uniformly distributing the heat. Uniquely designed control panel with touch buttons for setting the speed, temperature, and time, LCD screen for precise reading.
Function | Heating and stirring |
Speed Range | 200 to 2000 rpm |
Maximum Stirring Volume | 5 L |
Plate Temperature | 350 ℃ ± 10 % |
Plate Material | Ceramic panel |
Control | Digital control panel |
Plate Size | 190 × 190 mm |
Strong magnetic force resulting in an efficient stirring effect
Aluminum plate uniformly distributes the heat throughout the plate
Equipped with aluminum plate/anti-corrosion ceramic plate
Safety circuit over-temperature protection
Mainly used for routine stirring applications for research and clinical lab in the field of life science, industrial quality analysis, etc.,
Download Catalog for Hot Plate Magnetic Stirrer LBN-HS155
DownloadFunction : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 2L (H2O)
Plate Temperature : 260 ℃
Temperature Range : RT 5℃ - 380℃
Speed Range : 200 – 1500 rpm
Maximum Stirring Volume : 5 L
Stirring Position : 1
Temperature Range : RT - 500℃
Speed Range : 100 – 1500 rpm
Maximum Stirring Volume : 30 L
Stirring Position : 1
Temperature Range : RT - 550℃
Speed Range : 100 – 1500 rpm
Maximum Stirring Volume : 20 L
Stirring Position : 1
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 1 L
Plate Temperature : 260 ℃
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 3 L
Plate Temperature : 300 ℃
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 5 L
Plate Temperature : 350 ℃ ± 10 %
Maximum mix capacity : 3L
Speed range : 200 to 2000rpm
Heating power : 450w
Input power : 500w
Function : Stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 10 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1100 rpm
Maximum Stirring Volume : 30 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1300 rpm
Maximum Stirring Volume : 15 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1100 rpm
Maximum Stirring Volume : 50 L
Speed Regulation Accuracy : ± 10 rpm/min
Motor : Brushless motor
Maximum amount of stirring (H20) : 20 L
RPM : 50 to 1200 rpm
Timing : 1 min to 23 h 59 min
Speed Range : 50 to 2200 rpm
Maximum Stirring Quantity [H2O] : 40 L
Speed Display Accuracy : ±3 rpm
Speed Display : LCD
Speed Range : 50 to 2200 rpm
Maximum Stirring Quantity [H2O] : 20 L
Speed Display Accuracy : ±3 rpm
Speed Display : LCD
Speed Range : 50 to 2200 rpm
Maximum Stirring Quantity [H2O] : 20 L
Speed Display Accuracy : ±3 rpm
Speed Display : LCD
Motor : Brushless motor
Maximum amount of stirring (H20) : 10 L
RPM : 100 to 2000
Timing : 1 min to 23 h 59 min
Stirring Capacity : 2000 mL
Stirring Speed : 0~1250 rpm
Timing Work Range : 0~999 minutes
Heating Power : 380 W
Function : Stirring
Speed Range : 200 to 2000 rpm
Maximum Stirring Volume : 2 L (H2O)
Control : Rotary knob / LCD
Stirring capacity : 20
Speed range : 200-1800rpm
Input power : 50w
Plate dimension : 180×180mm
Function : Stirring
Speed Range : 200 to 2000 rpm
Maximum Stirring Volume : 4 L (H2O)
Control : Digital Knob control
Stirring Capacity : 2000 mL
Stirring Speed : 0~1250 rpm
Timing Work Range : 0~999 minutes
Heating Power : 450 W
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 4 × 500 ml
No. Of Stirring Points : 4
Timing : 23 h / 59 min / 59 sec
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 8 × 500 ml
No. Of Stirring Points : 8
Timing : 23 h / 59 min / 59 sec
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 6 × 500 ml
No. Of Stirring Points : 6
Timing : 23 h / 59 min / 59 sec
