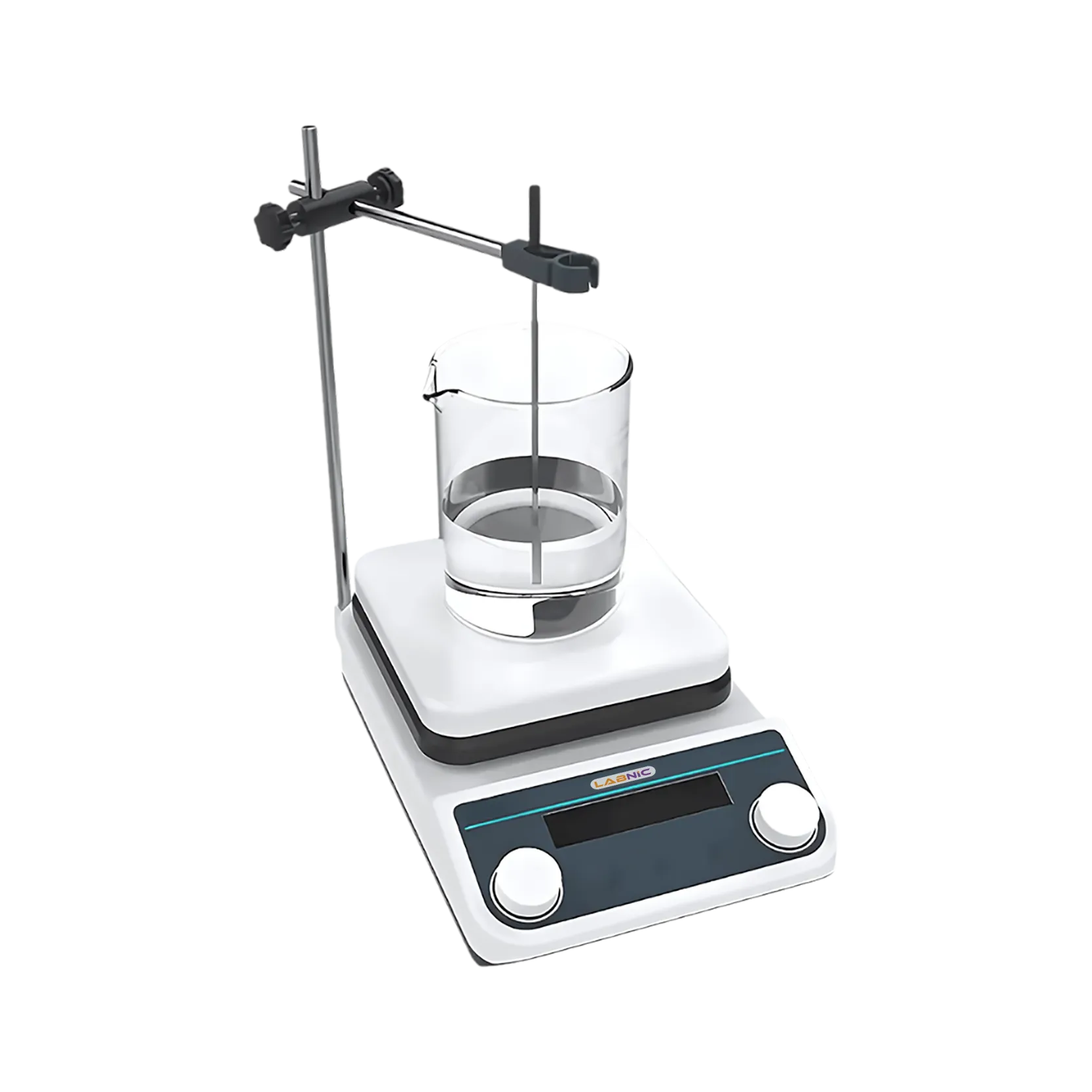

Hot Plate Magnetic Stirrer LBN-HS175 features a 20L stirring capacity and a temperature range of up to 550°C. It features a brushless DC motor with stable performance and a digital LCD display for clear, accurate monitoring. Equipped with PID temperature control and an external PT1000 sensor, it guarantees high precision with ±0.2°C accuracy and reliable overheat protection. Integrated with a corrosion-resistant glass ceramic plate and a “HOT” warning indicator, it ensures both durability and operator safety. Our Hot Plate Magnetic Stirrer is widely used in chemical, pharmaceutical, biotechnology, and academic laboratories for heating, mixing, and sample preparation.
| Speed Range | 1500 rpm |
| Maximum Stirring Volume | 20 L |
| RPM Increment | ±1 rpm |
| Control | Dual Control Knobs & LCD Display |
| Motor | Brushless DC Motor |
| Stir Bar Size | Max 80 mm |
| Timing Range | Digital Timer Function |
| Direction | One-way |
| Maximum Temperature of Hot Plate | 550°C |
| Ambient Temperature | 5 to 40°C |
| Relative Humidity | ≤80% RH |
| Temperature Display Accuracy/Increment | ±0.1°C / 1°C |
| Liquid/Plate Temperature Control Accuracy | ±1°C (<100°C), ±1% (>100°C) |
| Temperature Sensor | PT1000, Accuracy ±0.2°C |
| Overheating Protection | 580°C |
| HOT Warning | Flashes at ≥50°C even when off |
| Data Connector | RS232 interface for PC connectivity |
| Motor Output | 10 W |
| Protection Class | IP21 |
| Power Consumption | 1050 W |
| Power Supply | AC 100–120V / 200–240V, 50/60Hz |
| Hot Plate Dimension | 184 × 184 mm (7 inch), Glass ceramic |
| Dimension (W×D×H) | 215 × 360 × 112 mm |
| Packaging Dimension | 490 × 350 × 260 mm |
| Net Weight | 5.3kg |
| Gross Weight | 6.22kg |
Temperature sensor
Stand
Stirrer
Hot Plate Magnetic Stirrer LBN-HS175 is ideal for chemical synthesis, pharmaceutical research, biotechnology labs, academic experiments, and material testing applications
Hot Plate Magnetic Stirrer LBN-HS175 is ideal for chemical synthesis, pharmaceutical research, biotechnology labs, academic experiments, and material testing applications
Most Frequently Asked Questions
1. What are Hot Plate Magnetic Stirrers used for?
Ans. Hot Plate Magnetic Stirrers are used for simultaneous heating and mixing of liquid samples in laboratory applications.
2. What stirring speed range is supported by Hot Plate Magnetic Stirrers?
Ans. Hot Plate Magnetic Stirrers offer a stirring speed range of 50 to 2000 rpm for efficient and uniform mixing.
3. How do Hot Plate Magnetic Stirrers ensure safe operation?
Ans. Hot Plate Magnetic Stirrers are equipped with over-temperature protection to enhance operational safety.
4. Are heating and stirring settings easy to adjust?
Ans. Hot Plate Magnetic Stirrers allow quick and easy adjustment of heating and stirring parameters.
5. How are operating parameters monitored on Hot Plate Magnetic Stirrers?
Ans. Hot Plate Magnetic Stirrers feature a digital display for monitoring heating, stirring speed, and time settings.
6. Where are Hot Plate Magnetic Stirrers commonly used?
Ans. Hot Plate Magnetic Stirrers are commonly used in research laboratories, clinical labs, and industrial quality analysis.
Hot Plate Magnetic Stirrer LBN-HS175 features a 20L stirring capacity and a temperature range of up to 550°C. It features a brushless DC motor with stable performance and a digital LCD display for clear, accurate monitoring. Equipped with PID temperature control and an external PT1000 sensor, it guarantees high precision with ±0.2°C accuracy and reliable overheat protection. Integrated with a corrosion-resistant glass ceramic plate and a “HOT” warning indicator, it ensures both durability and operator safety. Our Hot Plate Magnetic Stirrer is widely used in chemical, pharmaceutical, biotechnology, and academic laboratories for heating, mixing, and sample preparation.
