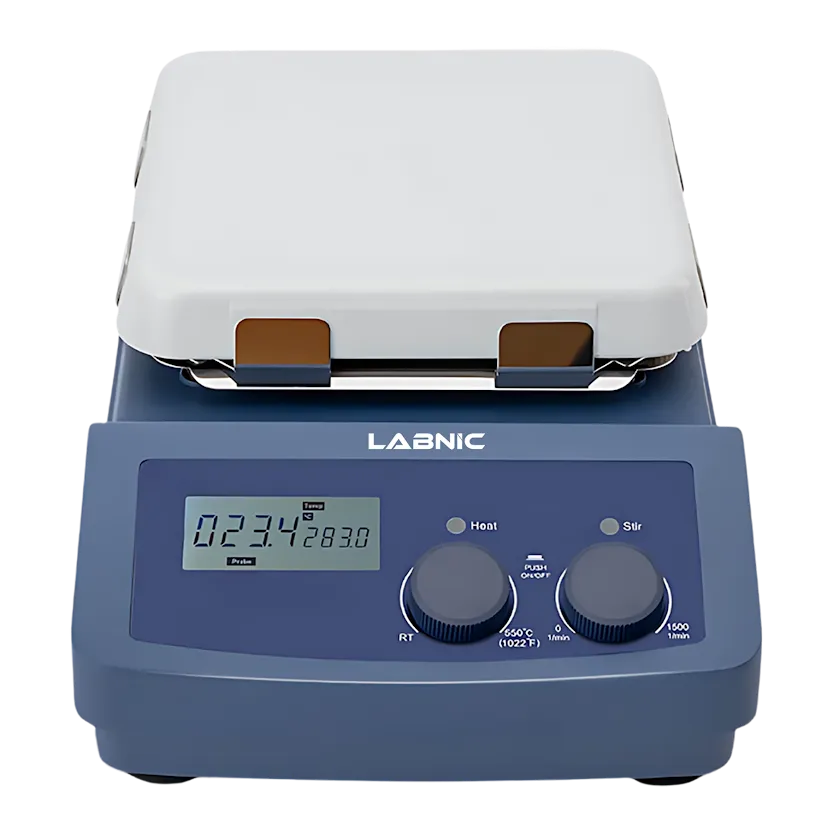

Hot Plate Magnetic Stirrer LBN-HS175 Catalog

Hot Plate Magnetic Stirrer LBN-HS175 features a 20L stirring capacity and a temperature range of up to 550°C. It features a brushless DC motor with stable performance and a digital LCD display for clear, accurate monitoring. Equipped with PID temperature control and an external PT1000 sensor, it guarantees high precision with ±0.2°C accuracy and reliable overheat protection. Integrated with a corrosion-resistant glass ceramic plate and a “HOT” warning indicator, it ensures both durability and operator safety. Our Hot Plate Magnetic Stirrer is widely used in chemical, pharmaceutical, biotechnology, and academic laboratories for heating, mixing, and sample preparation.

Speed Range	1500 rpm
Maximum Stirring Volume	20 L
RPM Increment	±1 rpm
Control	Dual Control Knobs & LCD Display
Motor	Brushless DC Motor
Stir Bar Size	Max 80 mm
Timing Range	Digital Timer Function
Direction	One-way
Maximum Temperature of Hot Plate	550°C
Ambient Temperature	5 to 40°C
Relative Humidity	≤80% RH
Temperature Display Accuracy/Increment	±0.1°C / 1°C
Liquid/Plate Temperature Control Accuracy	±1°C (<100°C), ±1% (>100°C)
Temperature Sensor	PT1000, Accuracy ±0.2°C
Overheating Protection	580°C
HOT Warning	Flashes at ≥50°C even when off
Data Connector	RS232 interface for PC connectivity
Motor Output	10 W
Protection Class	IP21
Power Consumption	1050 W
Power Supply	AC 100–120V / 200–240V, 50/60Hz
Hot Plate Dimension	184 × 184 mm (7 inch), Glass ceramic
Dimension (W×D×H)	215 × 360 × 112 mm
Packaging Dimension	490 × 350 × 260 mm
Net Weight	5.3kg
Gross Weight	6.22kg

Dual Control Knobs

Digital Timer Function

Digital Speed Control

PC Remote Control

Data Transmission

High-Temperature Capability

Hot Plate Magnetic Stirrer LBN-HS175 is ideal for chemical synthesis, pharmaceutical research, biotechnology labs, academic experiments, and material testing applications
