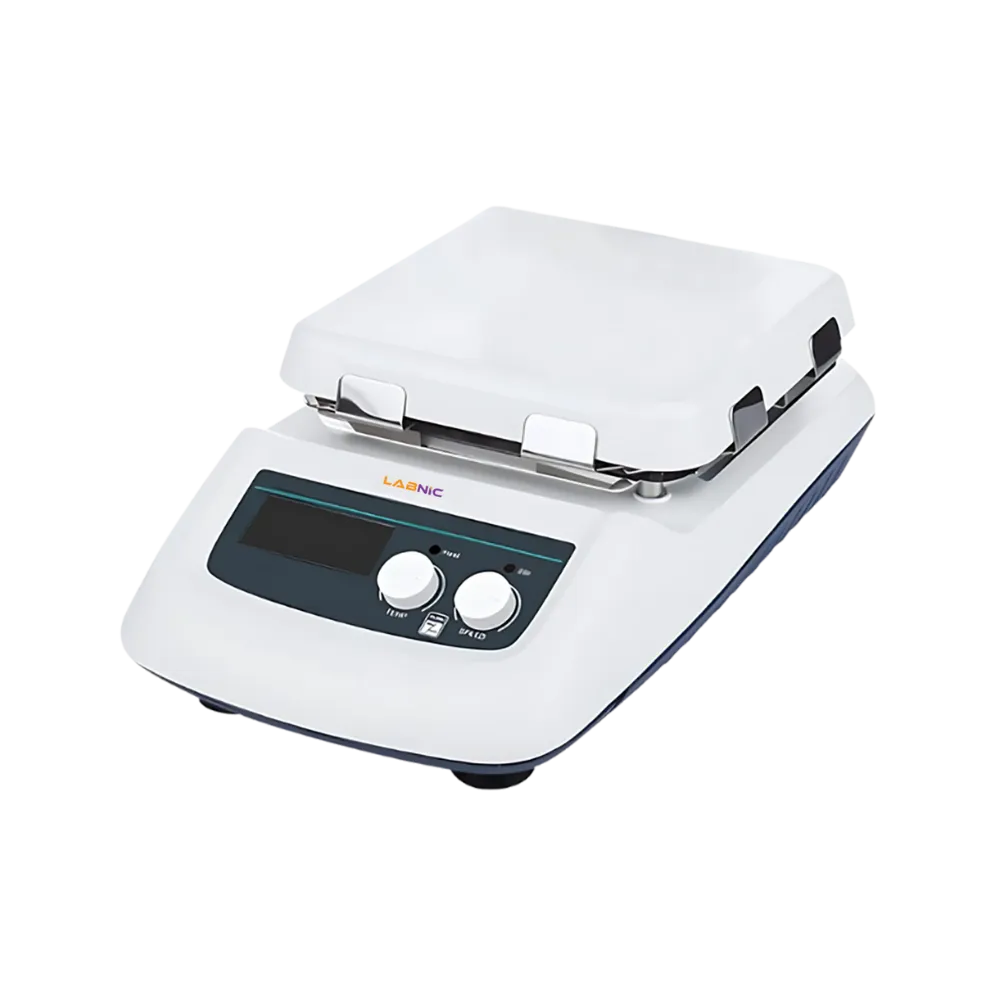

Hot Plate Magnetic Stirrer LBN-HS174 is designed for efficient mixing with a maximum capacity of 20L. It operates at speeds ranging from 50 to 1500rpm, providing reliable performance. Equipped with a digital display, it allows easy monitoring and adjustment of settings. Built-in sensor ensures accurate and consistent temperature control. Our Hot Plate Magnetic Stirrer is ideal for various laboratory applications.
| Speed Range | 50 to 1500rpm |
| Maximum Stirring Capacity | 20L (H2O) |
| RPM Increment | 10rpm |
| Control Methods | Digital Screen + Knob |
| Magnetic Stirring Bar Size | 50mm Linear Shape |
| Direction | Anticlockwise |
| Motor | Brushless Motor |
| Hot Plate Material | Aluminium Alloy – Ceramic Coated |
| Maximum Temperature of Hot Plate | 550℃ |
| Temperature Display Accuracy / Increment | 0.1℃ / 1℃ |
| Liquid / Plate Temperature Control Accurracy | Temperature of Plate ±1℃ |
| Temperature Sensor | PT1000 |
| Power Consumption | 1000W |
| Power Supply | AC 110V / 220V |
| Hot Plate Dimension | 160×160 mm |
| Dimensions | 285×180×90mm |

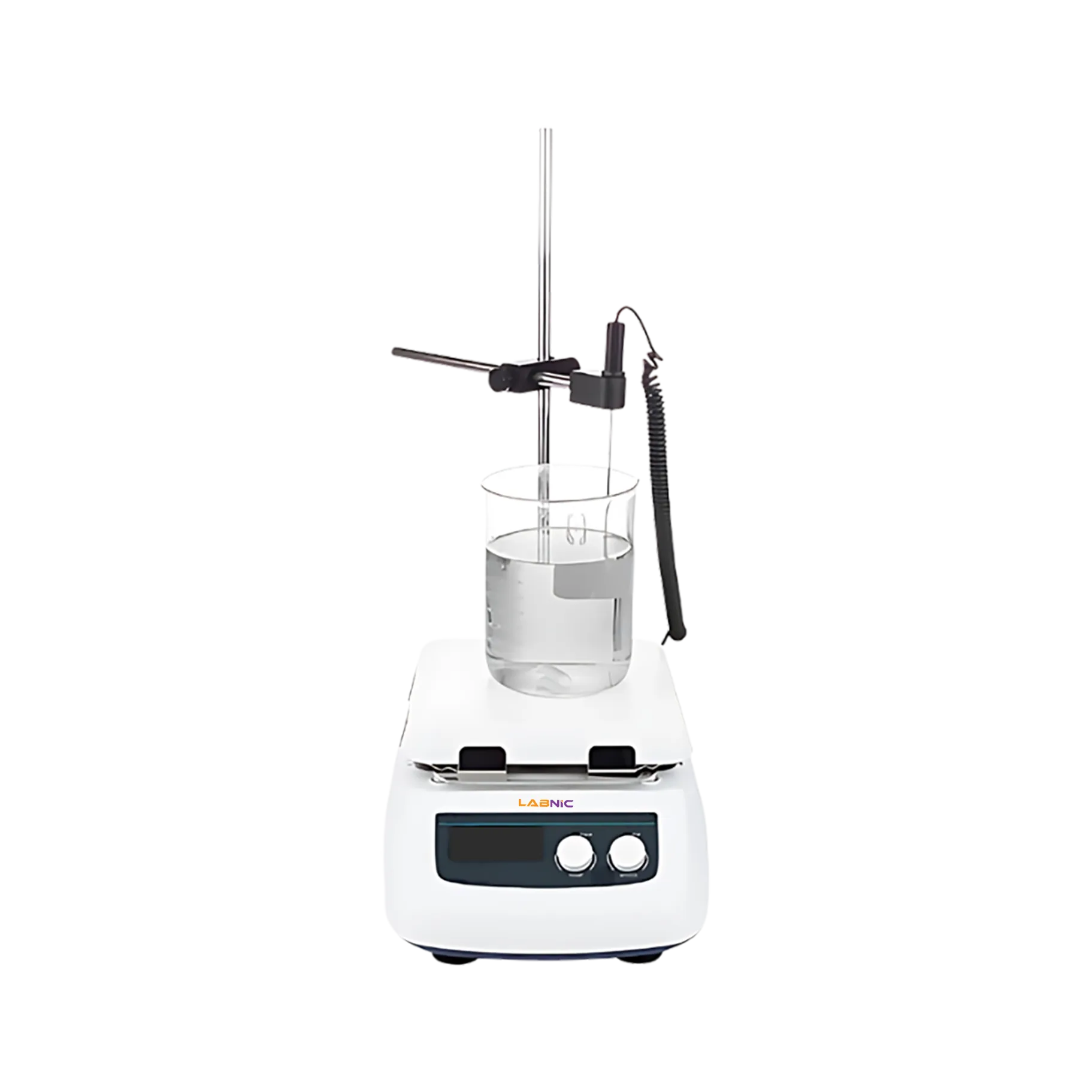

Hot Plate Magnetic Stirrer LBN-HS174 is ideal for applications such as sample preparation, chemical mixing, solution heating, titrations, and other laboratory experiments.
Hot Plate Magnetic Stirrer LBN-HS174 is ideal for applications such as sample preparation, chemical mixing, solution heating, titrations, and other laboratory experiments.
Most Frequently Asked Questions
1. What are Hot Plate Magnetic Stirrers used for?
Ans. Hot Plate Magnetic Stirrers are used for simultaneous heating and mixing of liquid samples in laboratory applications.
2. What stirring speed range is supported by Hot Plate Magnetic Stirrers?
Ans. Hot Plate Magnetic Stirrers offer a stirring speed range of 50 to 2000 rpm for efficient and uniform mixing.
3. How do Hot Plate Magnetic Stirrers ensure safe operation?
Ans. Hot Plate Magnetic Stirrers are equipped with over-temperature protection to enhance operational safety.
4. Are heating and stirring settings easy to adjust?
Ans. Hot Plate Magnetic Stirrers allow quick and easy adjustment of heating and stirring parameters.
5. How are operating parameters monitored on Hot Plate Magnetic Stirrers?
Ans. Hot Plate Magnetic Stirrers feature a digital display for monitoring heating, stirring speed, and time settings.
6. Where are Hot Plate Magnetic Stirrers commonly used?
Ans. Hot Plate Magnetic Stirrers are commonly used in research laboratories, clinical labs, and industrial quality analysis.
Hot Plate Magnetic Stirrer LBN-HS174 is designed for efficient mixing with a maximum capacity of 20L. It operates at speeds ranging from 50 to 1500rpm, providing reliable performance. Equipped with a digital display, it allows easy monitoring and adjustment of settings. Built-in sensor ensures accurate and consistent temperature control. Our Hot Plate Magnetic Stirrer is ideal for various laboratory applications.
