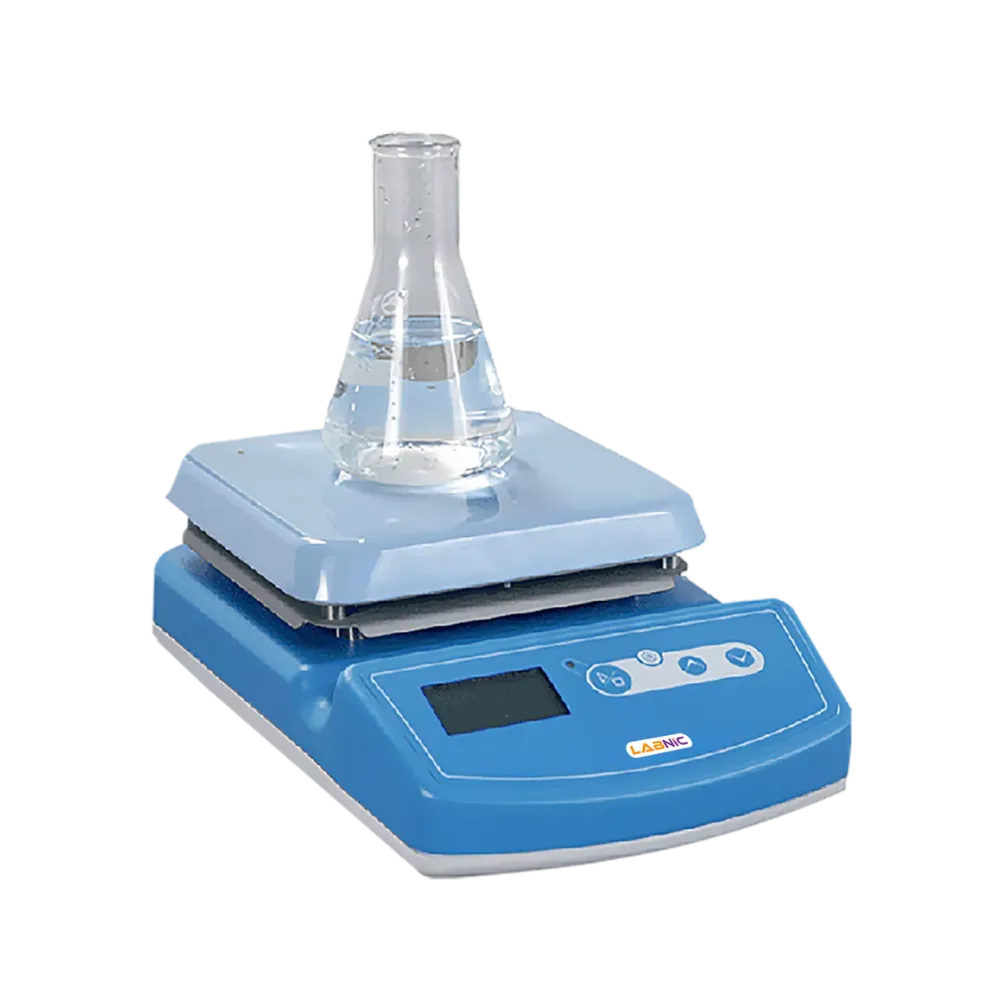

Magnetic Stirrer LBN-MS131 is provided with PID temperature controller with a large LCD screen display to view the working parameters. Microcomputer control assures the speed remains stable with constantly changing stirring viscosity. Stirring speed is controlled and stable, it achieves liquid mixing, solution and solid mixing. Housing cover is made up of die cast aluminum which is resistant to high temperature and anti-corrosion.
| Maximum mix capacity | 3L |
| Speed range | 200 to 2000rpm |
| Heating power | 450w |
| Input power | 500w |
| Platform control temperature | RT+5 to 320℃ |
| Control temperature accuracy | ±15℃ |
| Platform size | 130×130mm |
| Net weight | 3.5kg |
| Over size | 150 ×250×110mm |
Humanization design
It is easy to understand and operate
Platform is made up of one molding aluminum alloy materials
It has large output torque which is suitable for mixing low viscosity large capacity or high viscosity small capacity liquid
Equipped with a corrosion-resistant guide groove above the control panel, even if the liquid overflows during stirring, it doesn’t cause damage to the electronics in the agitator
Temperature deviation protection, anti-hot warming light
Free step adjustment
They are used for low viscosity liquids or solid mixing widely used in the Environmental field for water quality analysis, pesticide residue testing, and chemical pollution analysis. Research and education for basic chemical experiments, material analysis, and liquid mixing. Food industry for food additive, dairy products, and Nutritional analysis
Download Catalog for Magnetic Stirrer LBN-MS131
Download
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 2L (H2O)
Plate Temperature : 260 ℃
Temperature Range : RT 5℃ - 380℃
Speed Range : 200 – 1500 rpm
Maximum Stirring Volume : 5 L
Stirring Position : 1
Temperature Range : RT - 500℃
Speed Range : 100 – 1500 rpm
Maximum Stirring Volume : 30 L
Stirring Position : 1
Temperature Range : RT - 550℃
Speed Range : 100 – 1500 rpm
Maximum Stirring Volume : 20 L
Stirring Position : 1
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 1 L
Plate Temperature : 260 ℃
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 3 L
Plate Temperature : 300 ℃
Function : Heating and stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 5 L
Plate Temperature : 350 ℃ ± 10 %
Function : Heating and stirring
Speed Range : 200 to 2000 rpm
Maximum Stirring Volume : 5 L
Plate Temperature : 350 ℃ ± 10 %
Motor : Brushless motor
Maximum amount of stirring (H20) : 20 L
RPM : 50 to 1200 rpm
Timing : 1 min to 23 h 59 min
Motor : Brushless motor
Maximum amount of stirring (H20) : 10 L
RPM : 100 to 2000
Timing : 1 min to 23 h 59 min
Speed Range : 50 to 1100 rpm
Maximum Stirring Quantity [H2O] : 70 L
Speed Display Accuracy : ±10 rpm
Speed Display : LCD
Speed Range : 50 to 2200 rpm
Maximum Stirring Quantity [H2O] : 40 L
Speed Display Accuracy : ±3 rpm
Speed Display : LCD
Speed Range : 50 to 2200 rpm
Maximum Stirring Quantity [H2O] : 40 L
Speed Display Accuracy : ±3 rpm
Speed Display : LCD
Function : Stirring
Speed Range : 50 to 1100 rpm
Maximum Stirring Volume : 30 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1100 rpm
Maximum Stirring Volume : 50 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 10 L
Speed Regulation Accuracy : ± 10 rpm/min
Function : Stirring
Speed Range : 50 to 1300 rpm
Maximum Stirring Volume : 15 L
Speed Regulation Accuracy : ± 10 rpm/min
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 8 × 500 ml
No. Of Stirring Points : 8
Timing : 23 h / 59 min / 59 sec
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 6 × 500 ml
No. Of Stirring Points : 6
Timing : 23 h / 59 min / 59 sec
Speed Range : 50 to 1500 rpm
Maximum Stirring Volume : 4 × 500 ml
No. Of Stirring Points : 4
Timing : 23 h / 59 min / 59 sec
Stirring Capacity : 2000 mL
Stirring Speed : 0~1250 rpm
Timing Work Range : 0~999 minutes
Heating Power : 380 W
Function : Stirring
Speed Range : 200 to 2000 rpm
Maximum Stirring Volume : 4 L (H2O)
Control : Digital Knob control
Stirring capacity : 20
Speed range : 200-1800rpm
Input power : 50w
Plate dimension : 180×180mm
Function : Stirring
Speed Range : 200 to 2000 rpm
Maximum Stirring Volume : 2 L (H2O)
Control : Rotary knob / LCD
Stirring Capacity : 2000 mL
Stirring Speed : 0~1250 rpm
Timing Work Range : 0~999 minutes
Heating Power : 450 W
