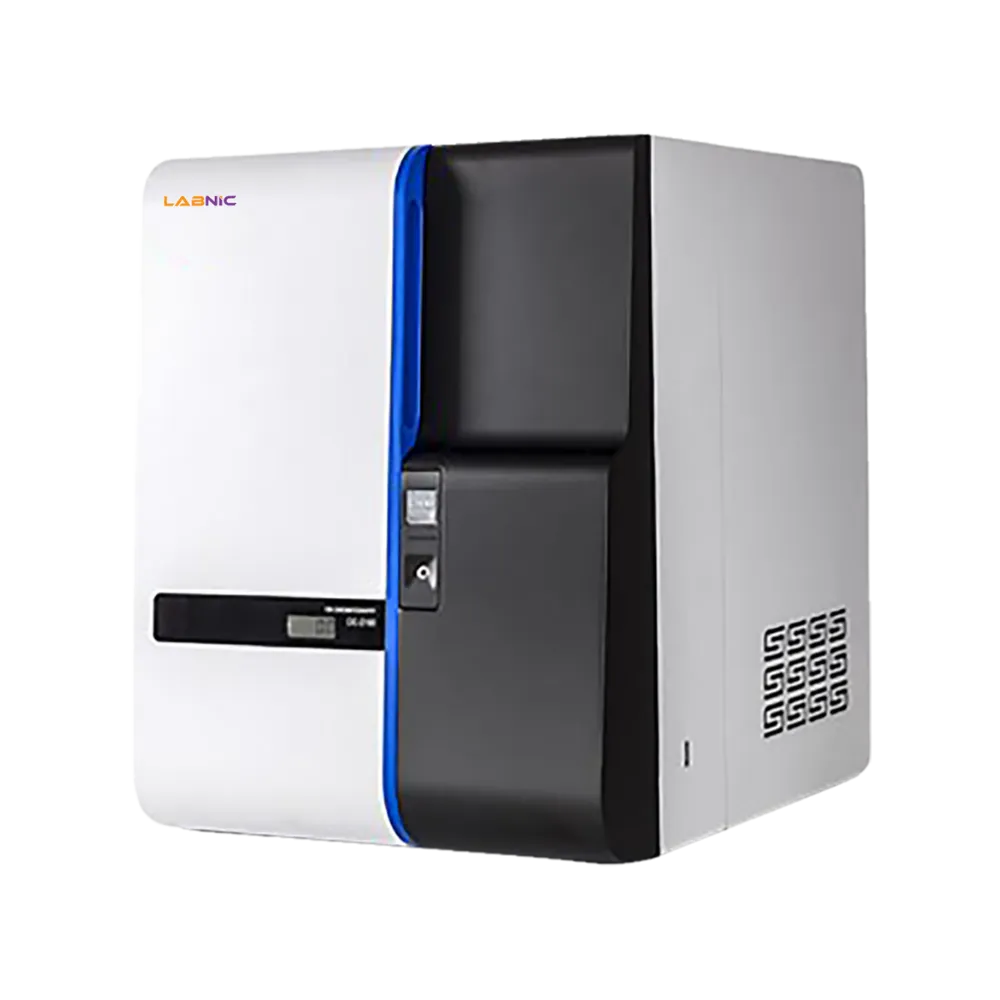

Ion Chromatograph LBN-IC172 is a chromatography system equipped with 42 MPa pressure pump with 0.001 to 9.999 mL/min flow rate. It not only detects anions, cations and other polar substances, but is also compatible with external amperometric detector operating under 5° to 60°C temperature range. The conductivity detector has a 0.8µL cell volume and can detect signals ranging from ppb to ppm concentration without adjusting the range. The non-destructive detector makes it ideal for all isocratic methods in ion chromatography.
Cell Volume | ≤0.8 µL |
Detection Range | 0 to 45000 µS/cm |
Detection Resolution | ≤0.0020 ns/cm |
Electronic Noise | 0.02 ns |
Pump Maximum Pressure | 42 MPa |
Pressure Display accuracy | ≤0.1 MPa |
Flow Rate Range | 0.001 to 9.999 mL/min |
Injector Maximum Pressure | 35 MPa |
Detector Maximum Pressure | 10.0 MPa |
Operating Temperature Range | 5° to 60°C |
Temperature Accuracy | ± 1°C |
Power Requirement | 150 W |
Dimension (L×W×H) | 350×470×510 mm |
Net Weight | 26 Kg |
Gross Weight | 32 Kg |
Flow rate range: with 0.001 to 9.999 mL/min
Eluent pre-heating
Built-in circulating 3D constant temperature technology
Self-regenerating electrolytic micro-membrane suppressor
Observatory intelligent work station
Intelligent switch to complete the startup parameter setting and shutdown operation
Accurate and reliable system
Run more samples and more molecules on a single system
Strong ions exchanger
Outstanding for preparative applications
Flexible processing with high productivity
Large size LCD color screen for easy operation
Intelligent temperature control to ensure better accuracy of analysis
Ion Chromatographs are widely used in the fields of environment protection, disease control, food industries, chemical industries commercial labs, electronics, mining and metallurgy.
Download Catalog for Ion Chromatograph LBN-IC172
DownloadCell Volume : ≤0.8 µL
Detection Range : 0 to 35000 µS/cm
Baseline Noise : ≤ 0.05% FS
Baseline Drift : ≤ 3% FS/30 min
Cell Volume : ≤0.8 µL
Detection Range : 0 to 50000 µS/cm
Detection Resolution : ≤0.0020 ns/cm
Electronic Noise : 0.02 ns
